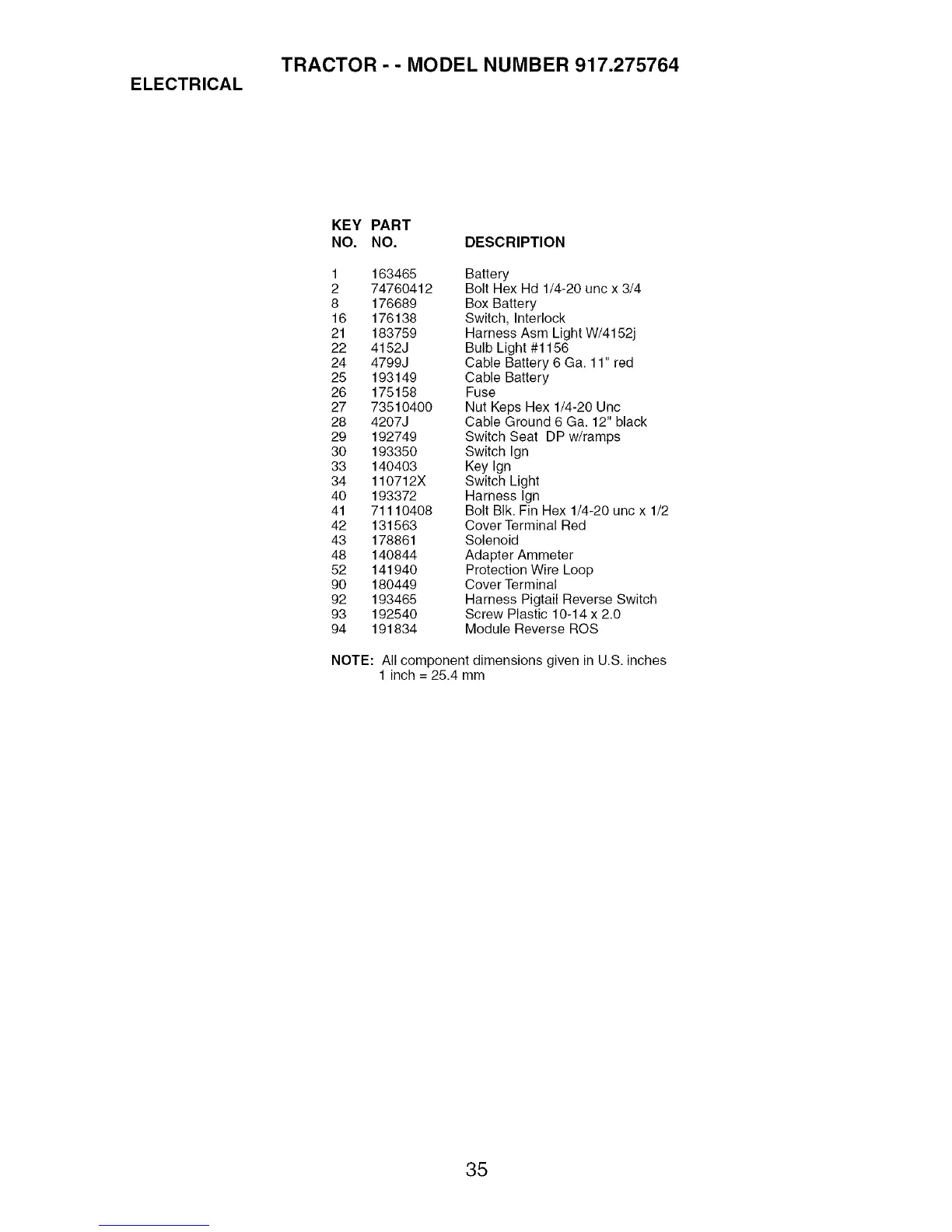

ELECTRICAL
TRACTOR - - MODEL NUMBER 917.275764
KEY PART
NO. NO. DESCRIPTION
1 163465 Battery
2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4
8 176689 Box Battery
16 176138 Switch, Interlock
21 183759 Harness Asm Light W/4152j
22 4152J Bulb Light #1156
24 4799J Cable Battery 6 Ga. 11" red
25 193149 Cable Battery
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 Unc
28 4207J Cable Ground 6 Ga. 12" black
29 192749 Switch Seat DP w/ramps
30 193350 Switch Ign
33 140403 Key Ign
34 110712X Switch Light
40 193372 Harness Ign
41 71110408 Bolt BIk. Fin Hex 1/4-20 unc x 1/2
42 131563 Cover Terminal Red
43 178861 Solenoid
48 140844 Adapter Ammeter
52 141940 Protection Wire Loop
90 180449 Cover Terminal
92 193465 Harness Pigtail Reverse Switch
93 192540 Screw Plastic 10-14 x 2.0
94 191834 Module Reverse ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
