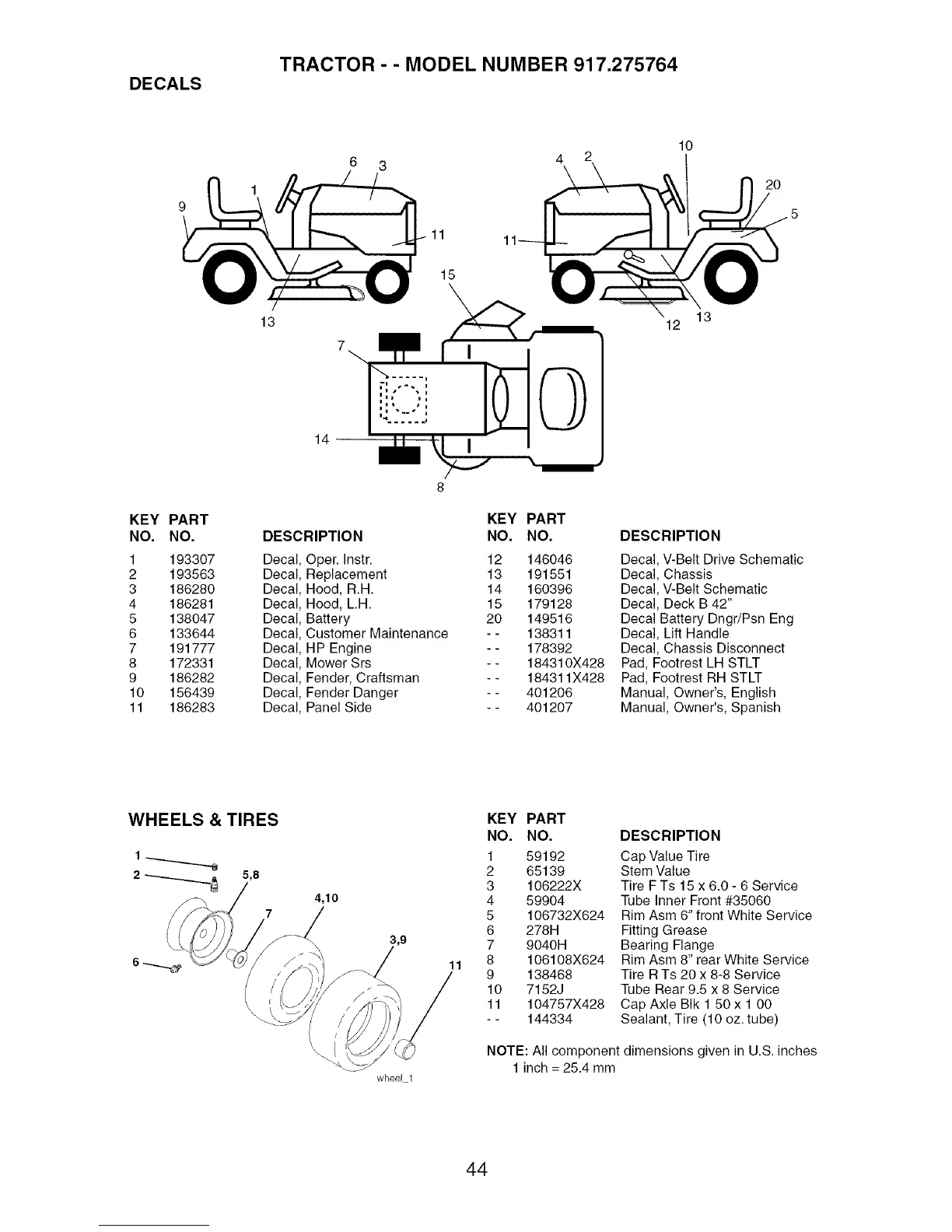

DECALS
TRACTOR - - MODEL NUMBER 917.275764
11
lO
20
13
15
\
12
13
14
KEY PART
NO. NO.
1 193307 Decal
2 193563 Decal
3 186280 Decal
4 186281 Decal
5 138047 Decal
6 133644 Decal
7 191777 Decal
8 172331 Decal
9 186282 Decal
10 156439 Decal
11 186283 Decal
DESCRIPTION
Oper. Instr.
Replacement
Hood, R.H.
Hood, L.H.
Battery
Customer Maintenance
HP Engine
Mower Srs
Fender, Craftsman
Fender Danger
Panel Side
KEY
NO.
12
13
14
15
2O
PART
NO.
146046
191551
160396
179128
149516
138311
178392
184310X428
184311X428
401206
401207
DESCRIPTION
Decal, V-Belt Drive Schematic
Decal, Chassis
Decal, V-Belt Schematic
Decal, Deck B 42"
Decal Battery Dngr/Psn Eng
Decal, Lift Handle
Decal, Chassis Disconnect
Pad, Footrest LH STLT
Pad, Footrest RH STLT
Manual, Owner's, English
Manual, Owner's, Spanish
WHEELS & TIRES
2 _ 5,8
7
4,10
wheel 1
11
KEY PART
NO. NO.
1 59192
2 65139
3 106222X
4 59904
5 106732X624
6 278H
7 9040H
8 106108X624
9 138468
10 7152J
11 104757X428
-- 144334
DESCRIPTION
Cap Value Tire
Stem Value
Tire FTs 15 x 6.0 - 6 Service
Tube Inner Front #35060
Rim Asm 6" front White Service
Fitting Grease
Bearing Flange
Rim Asm 8" rear White Service
Tire R Ts 20 x 8-8 Service
Tube Rear 9.5 x 8 Service
Cap Axle BIk 1 50 x 1 00
Sealant, Tire (10 oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
