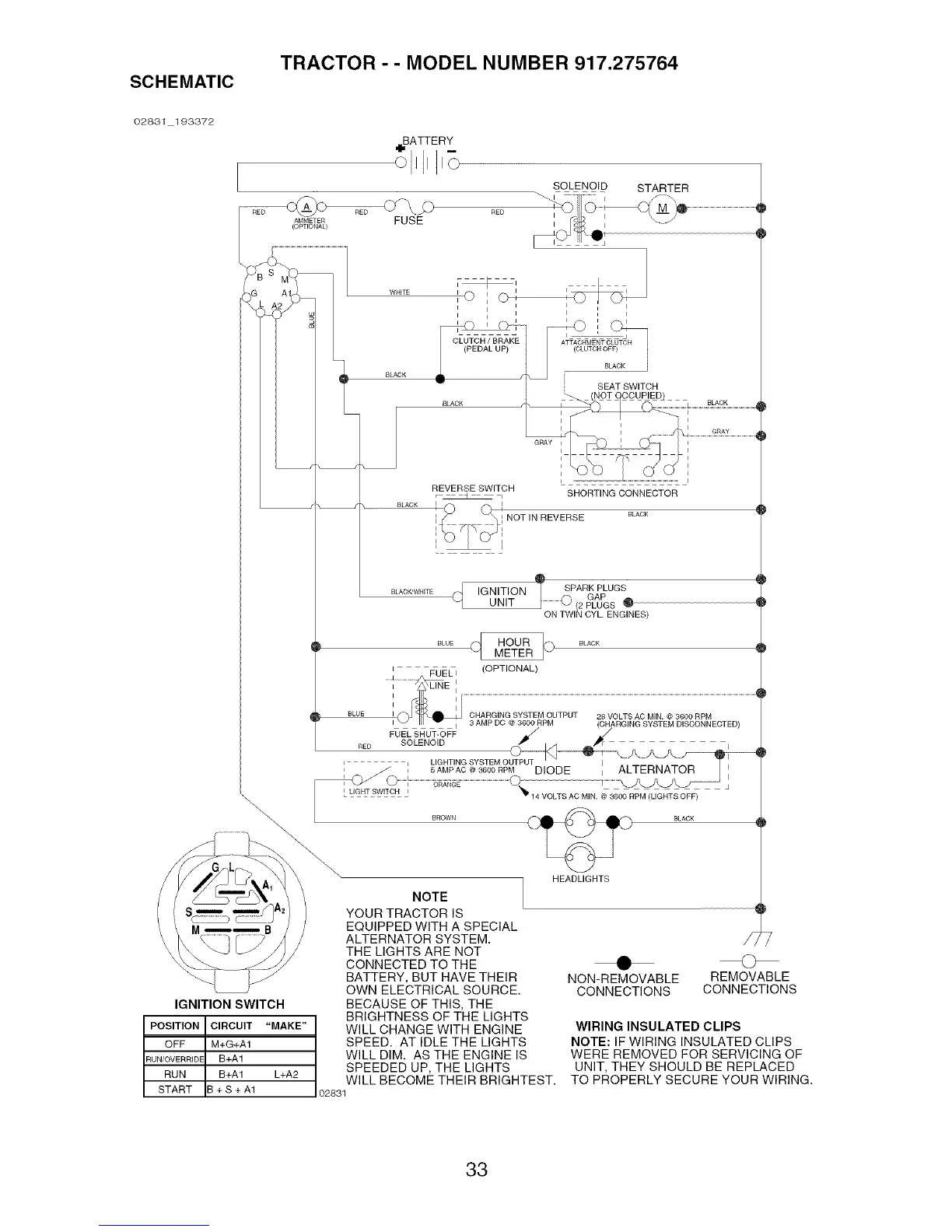

SCHEMATIC
TRACTOR - - MODEL NUMBER 917.275764
02831 193372
BATTERY
,!,,
olllll,o
SOLENOID STARTER
REVERSESWITCH
SHORTING CONNECTOR
NOT IN REVERSE BLACK
O
IGNITION / SPARKPLUGS
UNIT _ GAP
.................O (2 PLUGS @
ON TWIN CYL. ENGINES)
41
\
\
IGNITION SWITCH
POSITION CIRCUIT "MAKE"
OFF M+G+A1
_UN/OVERRIDE B+A1
RUN B+A1 L+A2
START B + S + A1
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
02831
HEADLIGHTS
• ©
NON-REMOVABLE REMOVABLE
CONNECTIONS CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS
WERE REMOVED FOR SERVICING OF
UNIT, THEY SHOULD BE REPLACED
TO PROPERLY SECURE YOUR WIRING.
33
