Craftsman dlt 3000 User Manual

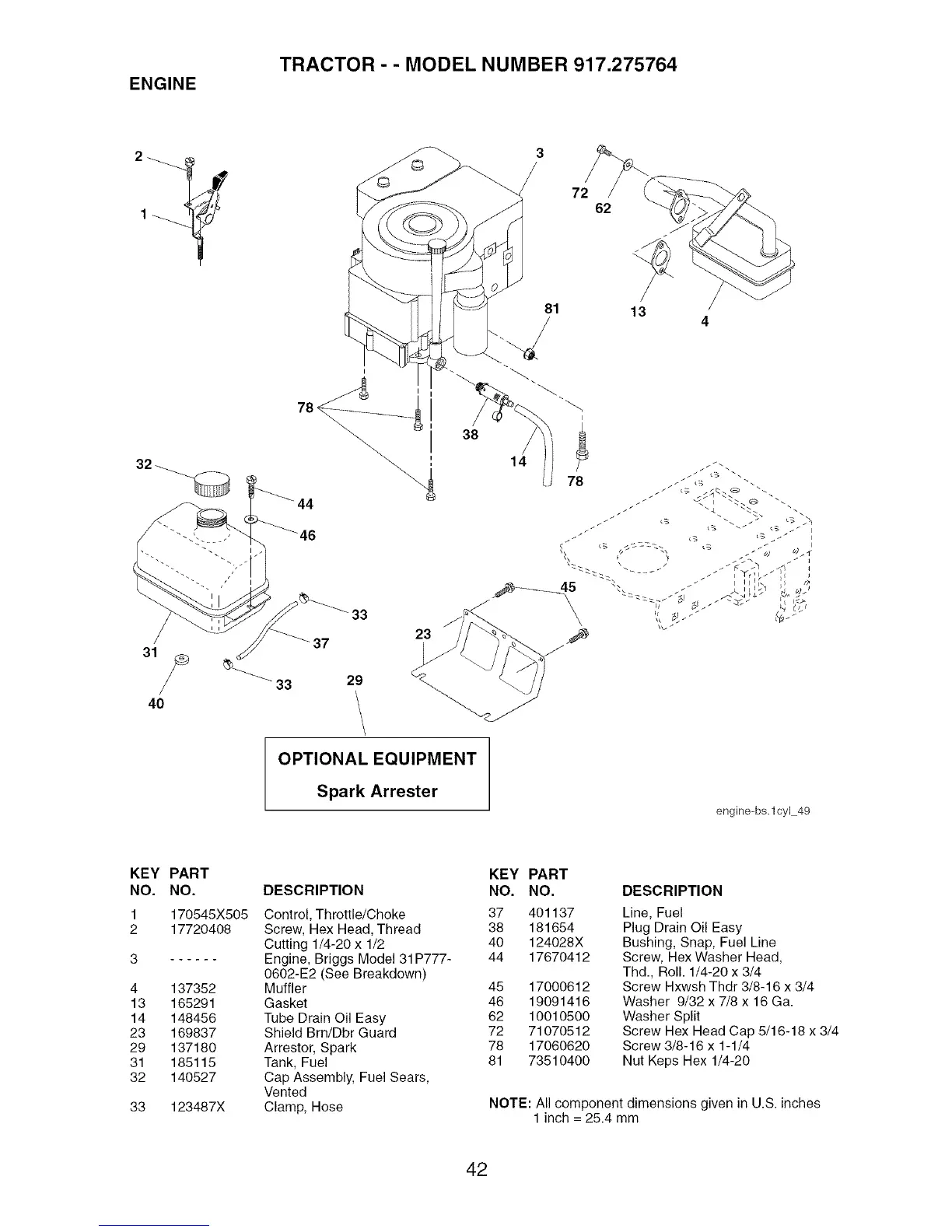

ENGINE
TRACTOR - - MODEL NUMBER 917.275764
/
40
33
i
44
33
23
37
29
38
3
72
/
62
81 13
14
OPTIONAL EQUIPMENT
Spark Arrester
engine-bs, lcyl 49
KEY PART
NO. NO.
1 170545X505
2 17720408
4 137352
13 165291
14 148456
23 169837
29 137180
31 185115
32 140527
33 123487X
DESCRIPTION
Control, Throttle/Choke
Screw, Hex Head, Thread
Cutting 1/4-20 x 1/2
Engine, Briggs Model 31P777-
0602-E2 (See Breakdown)
Muffler
Gasket
Tube Drain Oil Easy
Shield Brn/Dbr Guard
Arrestor, Spark
Tank, Fuel
Cap Assembly, Fuel Sears,
Vented
Clamp, Hose
KEY PART
NO. NO.
37 401137
38 181654
40 124028X
44 17670412
45 17000612
46 19091416
62 10010500
72 71070512
78 17060620
81 73510400
DESCRIPTION
Line, Fuel
Plug Drain Oil Easy
Bushing, Snap, Fuel Line
Screw, Hex Washer Head,
Thd., Roll. 1/4-20 x 3/4
Screw Hxwsh Thdr 3/8-16 x 3/4
Washer 9/32 x 7/8 x 16 Ga.
Washer Split
Screw Hex Head Cap 5/16-18 x 3/4
Screw 3/8-16 x 1-1/4
Nut Keps Hex 1/4-20
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
42

Craftsman dlt 3000 Specifications

General

Deck Material	Steel
Engine Type	Briggs & Stratton
Transmission	Automatic
Fuel Capacity	1.5 gallons
Warranty	2 years limited
Cutting Height	1.25 to 4 inches
