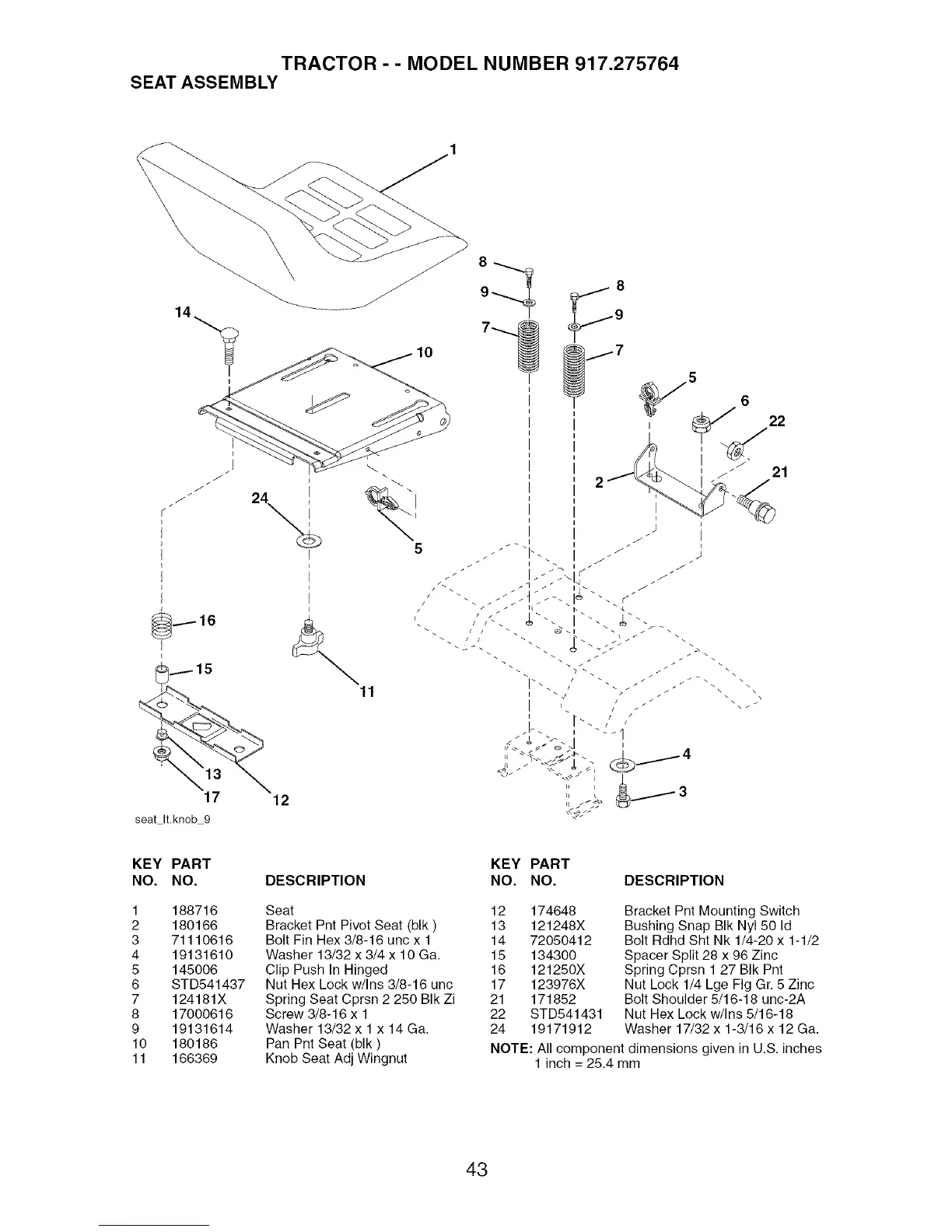

TRACTOR - - MODEL NUMBER 917.275764
SEAT ASSEMBLY
17 12
seat It.knob 9
5
KEY PART
NO. NO.
1 188716
2 180166
3 71110616
4 19131610
5 145006
6 STD541437
7 124181X
8 17000616
9 19131614
10 180186
11 166369
DESCRIPTION
Seat
Bracket Pnt Pivot Seat (blk)
Bolt Fin Hex 3/8-16 unc x 1
Washer 13/32 x 3/4 x 10 Ga.
Clip Push In Hinged
Nut Hex Lock w/Ins 3/8-16 unc
Spring Seat Cprsn 2 250 BIk Zi
Screw 3/8-16 x 1
Washer 13/32 x 1 x 14 Ga.
Pan Pnt Seat (blk)
Knob Seat Adj Wingnut
KEY PART
NO. NO. DESCRIPTION
12 174648
13 121248X
14 72050412
15 134300
16 121250X
17 123976X
21 171852
22 STD541431
24 19171912
Bracket Pnt Mounting Switch
Bushing Snap BIk Ny150 Id
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
Spacer Split 28 x 96 Zinc
Spring Cprsn 1 27 BIk Pnt
Nut Lock 1/4 Lge Fig Gr. 5 Zinc
Bolt Shoulder 5/16-18 unc-2A
Nut Hex Lock w/Ins 5/16-18
Washer 17/32 x 1-3/16 x 12 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
