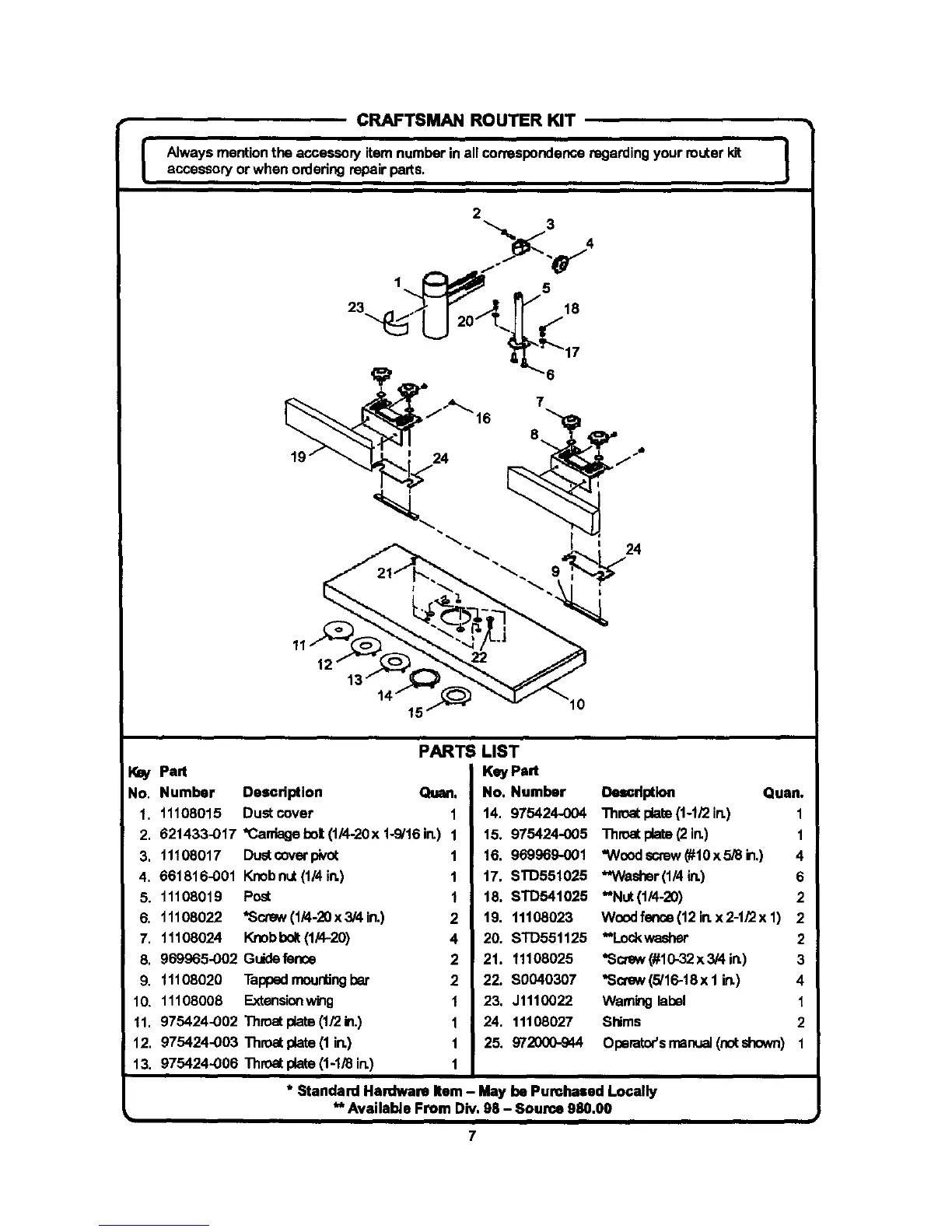

CRAFTSMAN ROUTER KIT
I Always mentionthe accessoryitemnumberin all correspondenceregardingyour muter kitaccessoryor when o_ledng repairparts.
2
3
23
5
18
24
15 10
PARTS LIST
Key Part
No. Number Description Quart,
1. 11108015 Dust cover 1
2. 621433-017 *Catriagobot(1/4-20x 1-9/16ir_) 1
3. 11108017 Dustccver pivnt 1
4, 661816-001 Knobnut(1/4ir_) 1
5. 11108019 Post 1
6, 11108022 *Scmw(1/4-20x3/4in.) 2
7, 11108024 Knobbolt(1/4-20) 4
8. 969965-002 Guidefence 2
9. 11108020 Tappedmourtingbar 2
10, 11108008 F_xtensionwing 1
11. 975424-002 Throatplate(1/2in.) 1
12, 975424-003 Throat plate(1 iR) 1
13. 975424-006 Throat plate(1-1/8ir_) 1
Key Part
No. Number I)ucdption Quart,
14. 975424-004 Thmatplate(1-1i2in.) 1
15. 975424-005 Thmatpiate(2in.) 1
16. 969969-001 "Woodscmw(#10x5/8in.) 4
17. $1"D551025 *WVasher(1/4iR) 6
18. STD541025 "Nut(t/4-20) 2
19. 11108023 Woodfence(12 in.x2-1/2x1) 2
20. S'1"D551125 **Lockwasher 2
21. 11108025 *Sc_sw(#10-32x 3N iR) 3
22. S0040307 "Scmw(5/16-18x 1 in.) 4
23. Jl110022 Warninglabel 1
24. 11108027 Shims 2
25. 972000-944 Operator'smanual(notshown) 1
* Standard Hardware Item - May be Purchased Locally
** Available From Div. 98 -Source 980.00
