BELT, PUSHER, AND SPIRAL ASSIGNMENTS (EXPANDED MODULE SHOWN)
4. Load the Refrigerated or Frozen Food Module
157P0060
1
.L
if
t t
h
e
l
oa
di
ng
d
oor
l
atc
h
an
d
open t
h
e
l
oa
di
ng
d
oor.

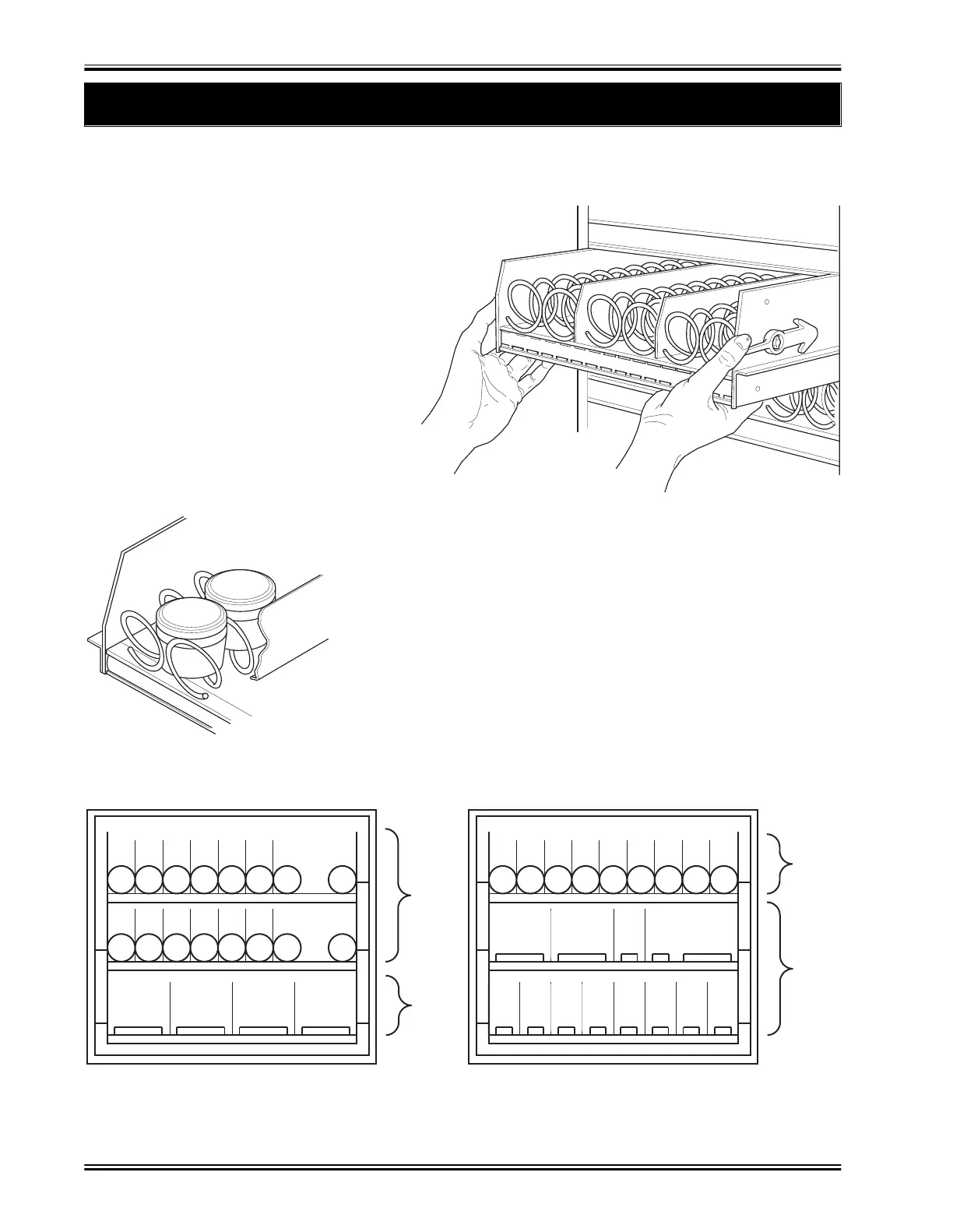

2. Place both hands on the food module tray as shown.
3. Lightly push back on the tray with your palms. This will
release the tray latches on the sides of the tray.
4. Push down on the tray latches with your thumbs.
5. Pull the tray forward until it stops.
6. Load each of the spiral selections as shown.
7. Load the belt and pusher selections as
shown.
8. See below for belt, pusher, and spiral
assignments.
9. After all selections are loaded, push
the tray in until it latches. Close and
latch the door.
FOOD SELECTIONS
LOADED IN SPIRALS
157P0039
D0 D1 D2 D3 D4 D5 D6 D7 D8
D1 D2 D3 D4 D5 D6
E0
E0 E2 E4 E6
E1 E2 E3 E4 E5 E6
F0 F0
F0 F1 F2 F3 F4 F5 F6 F7
F4 F6
SPIRALS
SPIRALS
BELTS
BELTS
D0
157P0250
