15
THREE PHASE 460-575 VOLT AC
Power Cable Motor Lead ID
Green (Ground) Green
Black 1
Red 2
White 3
THREE PHASE 208-230 VOLT ACTHREE PHASE 208-230 VOLT AC
Power CablePower Cable Motor Lead IDMotor Lead ID
Green (Ground) Green
Black 1
Red 2
White 3
MOISTURE AND TEMPERATURE SENSORSMOISTURE AND TEMPERATURE SENSORS
Control CableControl Cable Lead IDLead ID
Brown P1 (Temperature Sensor)
Yellow P2 (Temperature Sensor)
Orange W1 (Moisture Sensor)
Blue W2 (Moisture Sensor)

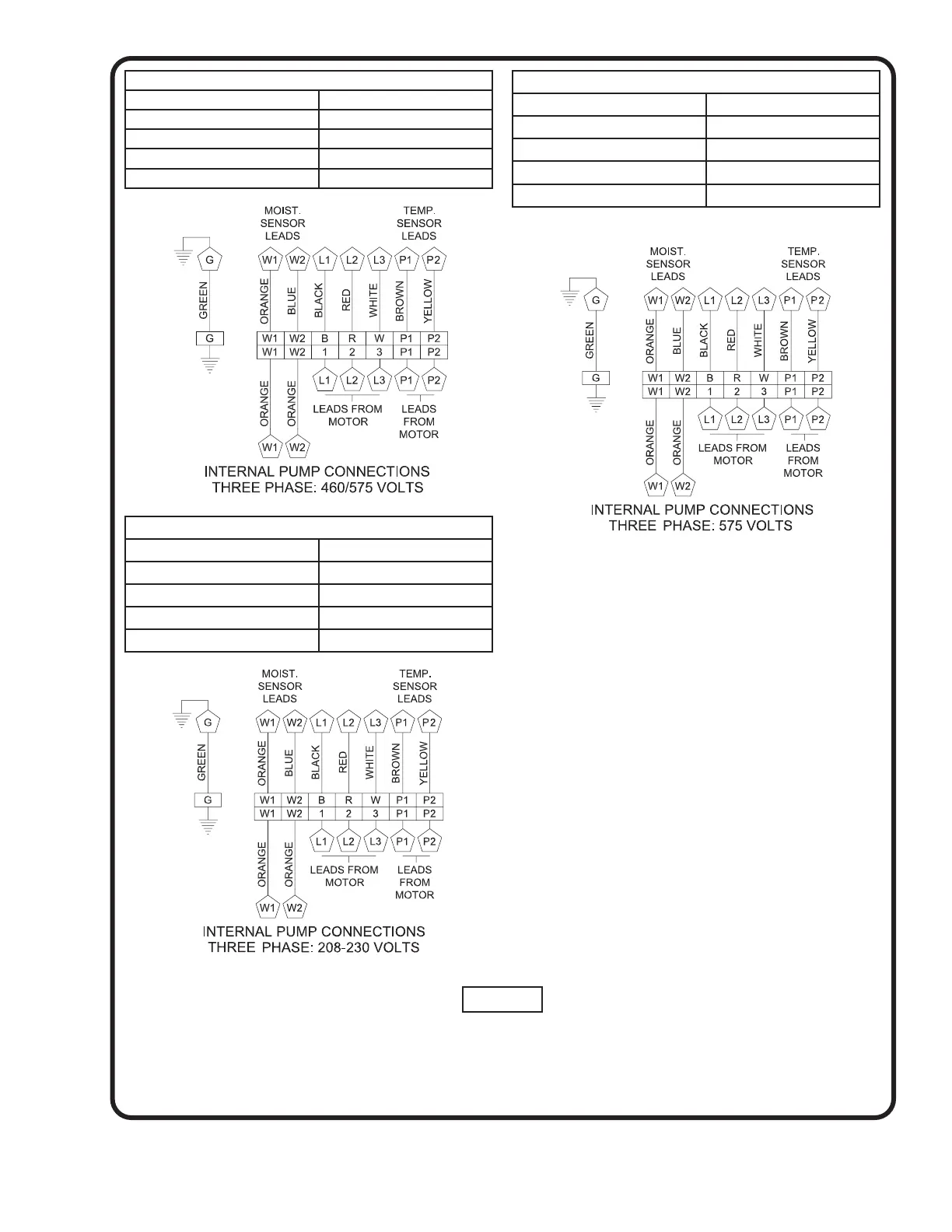

FIGURE 3
External Ground Note:
(Grd symbol) An external ground screw is provided on the side of the motor cap which can be
used for supplemental bonding connection where local codes permit or require such connection.
