CRCBOX EX-16-8 - Input Channel Operations; Channel Main Plane; Channel Noise Gate; Channel Equalizer

Input channel
Enter the main page of input channel 1 by default.
The input channel page has noise gate, equalizer, voltage limiter,
and dispatch.
1, Gain: Gain/GAIN knob on the panel to control the size.
2, display the current channel signal level.
3. Copy key: Copy the parameters set by the current pass to other
input channels.
4, volume: through the volume knob on the panel to control the
current channel volume level size.
5. Touch the corresponding function area to enter the function
page.
6. Click Select or use the Up, Down, Left and Right buttons to
select the adjusted parameters and then pass
Multi-function knob to adjust.
7. Click the back button on the upper left corner of the function
page to return to the main page of the channel.
通道1
噪声门
均衡器
压限器
派送
-12dB
阀值
-12dB
阀值
高通类型
低通类型
开 开 开
Bwo rth- 12d B
Bwo rth- 12d B
OUT1
OUT3
OUT5
OUT7
OUT2
OUT4
OUT6
OUT8
延时
0.0 ms
FX2
FX1
通道1
噪声门
COMP ON
0
0
-15
-15
-30
-30
-45
-45
-60
-60
-75
-75
-90
-90
-105
-105
-120
-120
-135
阀值
-135 dB
启动时间
-135 dB
保持时间
-135 dB
释放时间
-135 dB
通道1
均衡器
重置
EQ ON
通道1
压限器
0
0
-20
20
20(dB)
-20
-40
-40
-60
-60
-80
阀值
-135 dB
压缩比例
1.00：1
保持时间
-135 dB
释放时间
-135 dB
(dB)
通道1
派送
延时
0.0m s
-24 .0 -24. 0
FX1
FX2

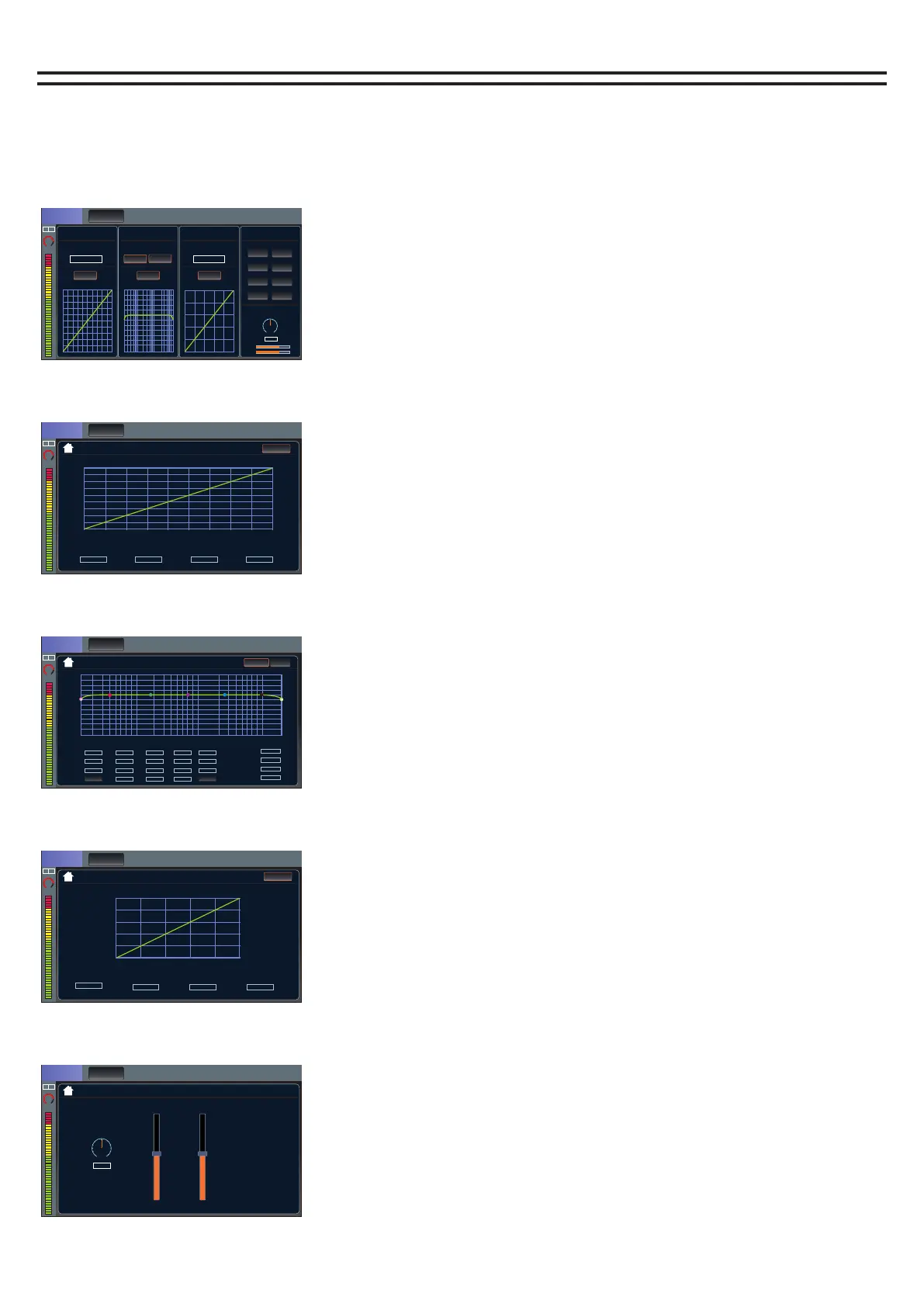

Channel main plane
