CANOPY ASSEMBLY
• Raise the canopy to hanging bracket, aligning loosened screws in hanging bracket with slotted
holes in the canopy.
• Twist the canopy to lock. Re-insert the screws and secure all the screws with a screwdriver.
• With hanging bracket secured to the outlet box and able to support the fan, you are now ready
to hang your fan.
• Grab the fan rmly with two hands. Slide downrod through the opening in the hanging bracket
and let the hanging ball rest on the hanging bracket.
• Turn the hanging ball slot until it lines up with the hanging bracket tab.
Tip: Seek the help of another person to hold the stepladder in place and to lift the fan up to you
once you are set on the ladder.
1 2 3

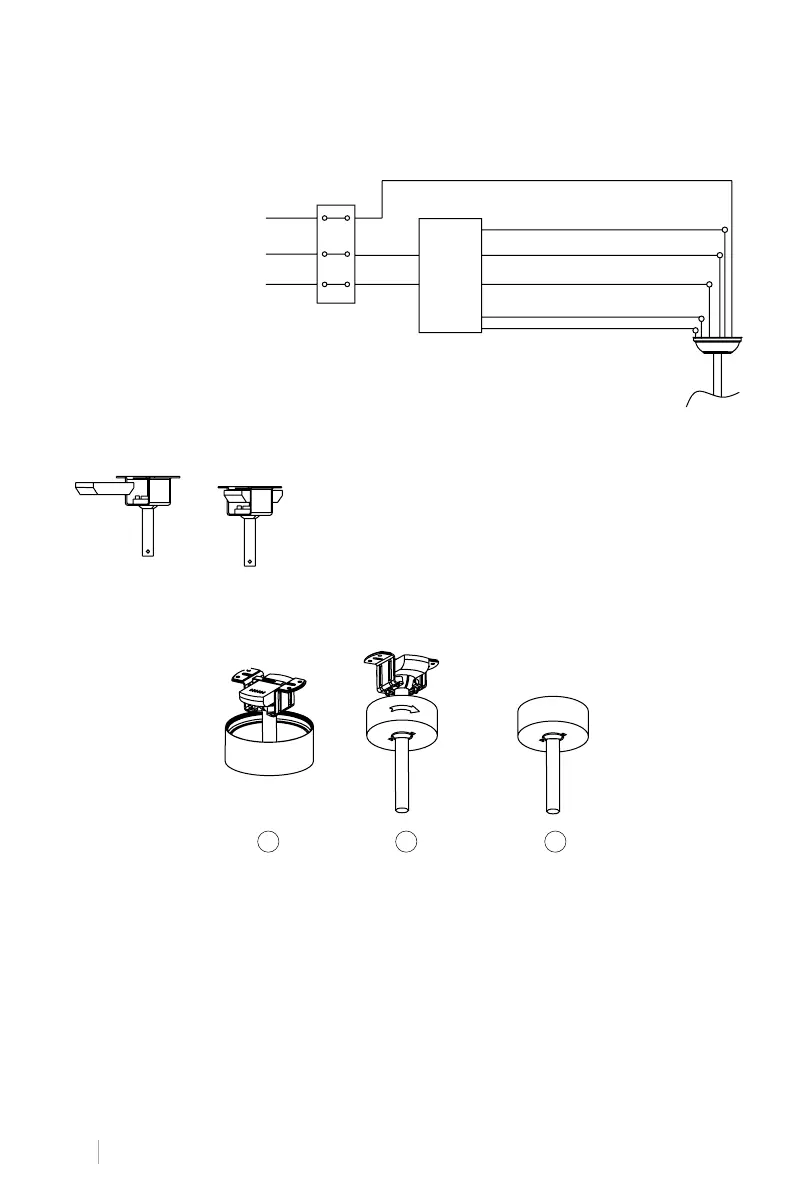

REMOTE CONTROL CONNECTION
• Make the connection between the receiver cables and the fan motor cables following the color
indications. Make sure the connection is tight.
Ground
wire
L
N
DC
L
(black)
Input N
(white)
Remote
control
receiver
Neutral N (white)
Green/yellow stripe
Light L (blue)
Grey DC motor L
Pink DC motor L
Red DC motor L
REMOTE CONTROL RECEIVER COLLOCATION
