ENGLISH

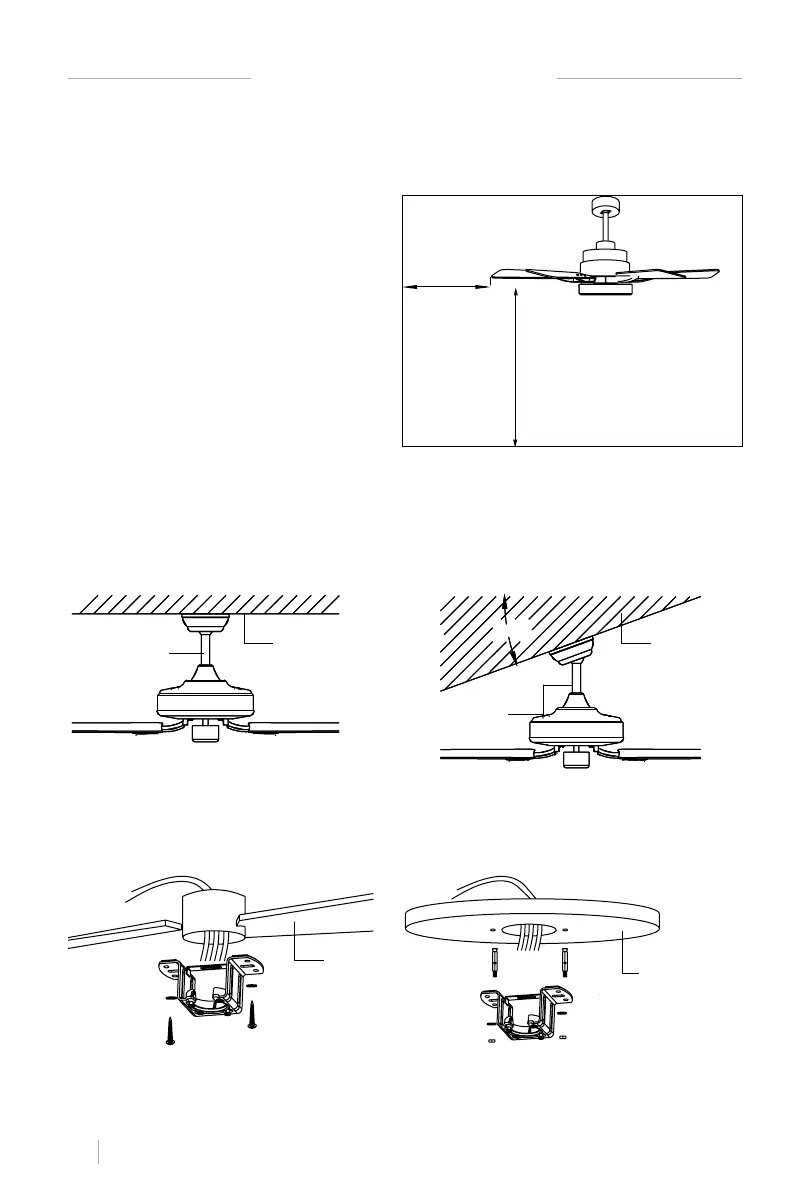

DOWNROD INSTALLATION
• Choose the suspension bar that best suits your situation: it has a 15 cm and a 25 cm suspension bar.
• Remove the bar bolt, removing the pin, and pass the canopy (roof trim) and the engine canopy
through the suspension bar. Next, route the fan motor cables through the inside of the suspen-
sion bar. Tighten the suspension bar to the engine and insert the bolt and pin.
20°20°20°20°
Support
brace
Standard
mounting
style
Standard Mounting hangs from the ceiling
by a downrod.
Support
brace
Angled
mounting
style
Angled Mounting recommended for a vault-
ed or angled ceiling.
INSTALLING THE HANGER BRACKET
Wood
ceiling
Concrete
ceiling
Please, drill an 8 mm in diameter hole on the concrete ceiling, and insert the bolt. Then, align the
bracket with the hole and tighten with a nut.
• Mark the correct position of the holes and x the ceiling bracket using the screws with metal
anchor or screws and washers suitable for the type of ceiling chosen.
• Check the correct installation of the bracket before hanging the fan. This plate must support the
full weight of the fan.
INSTALLATION INSTRUCTIONS
INSTALLATION PREPARATION
• To prevent personal injury and damage, en-
sure that the hanging location allows the
blades a clearance of 2.3 m from the oor
and 50 cm from any wall or obstruction.
• Be sure the outlet box is securely attached
to the building structure and can support
the full weight of the fan.
50 cm
from wall
or nearest
obstruction
2.3 m from
blades to
oor
