Create Wind Stylance - Wiring Connection; Remote Control Connection; Canopy Assembly

12
ENGLISH
CANOPY ASSEMBLY
REMOTE CONTROL CONNECTION
• Make the connection between the receiver cables and the fan motor cables following the color
indications. Make sure the connection is tight.
1 2 3

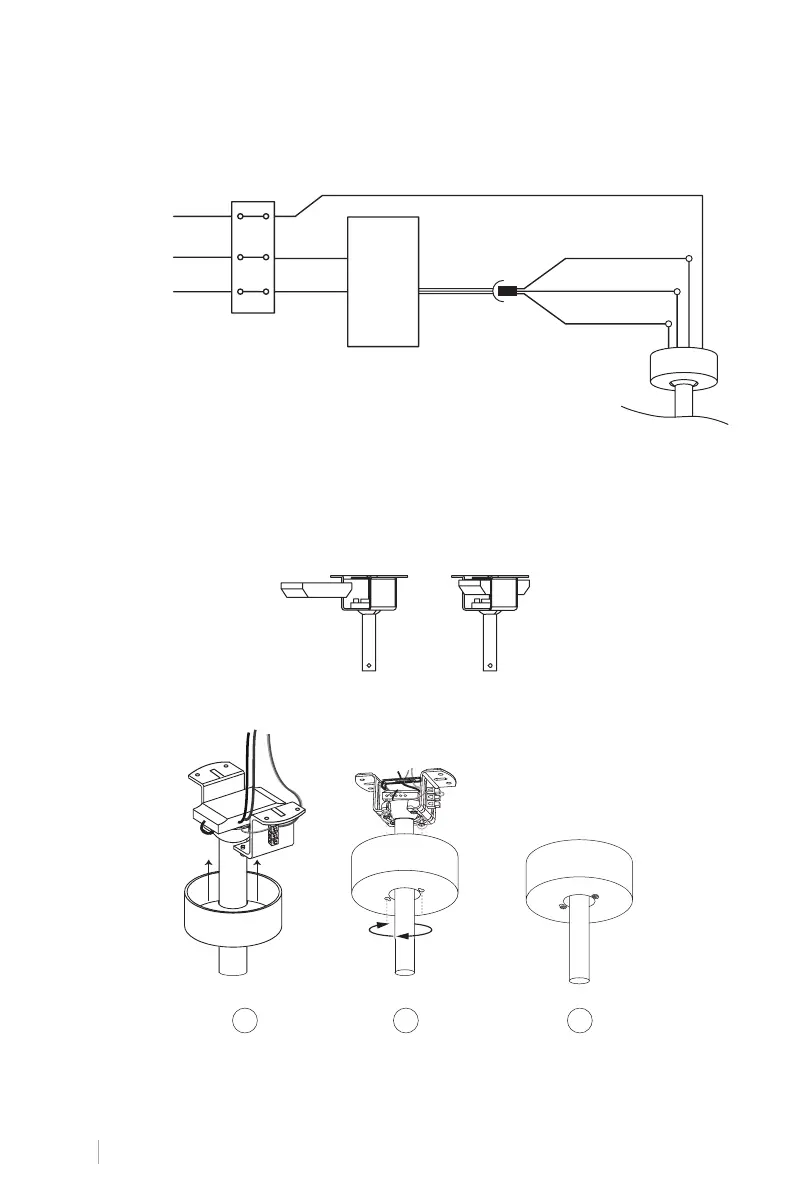

WIRING CONNECTION
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is tight.
Remote
control
receiver
Take ground
L
N
L input
(black)
Input N
(white)
DC L motor (gray)
DC L motor (red)
DC L motor (pink)
Ground (green/yellow)
