To mount the heater to the wall:
1. Remove wall mounting bracket from the back of the heater by depressing the spring latch
at the side of each bracket - see Fig.2.
2. Fix the wall bracket securely to the wall through the four screw holes. Ensure only screw
fi ttings provided are used for the particular wall type.
3. Present the heater to the wall bracket and engage bottom slots in the back with bracket hooks.
4. Press heater into locked position and ensure the clips on the top are engaged.
WARNING:
This product is heavy and care
should be taken in installation
‘C’
150mm
(min)
150mm
(min)
150mm
(min)
‘D’

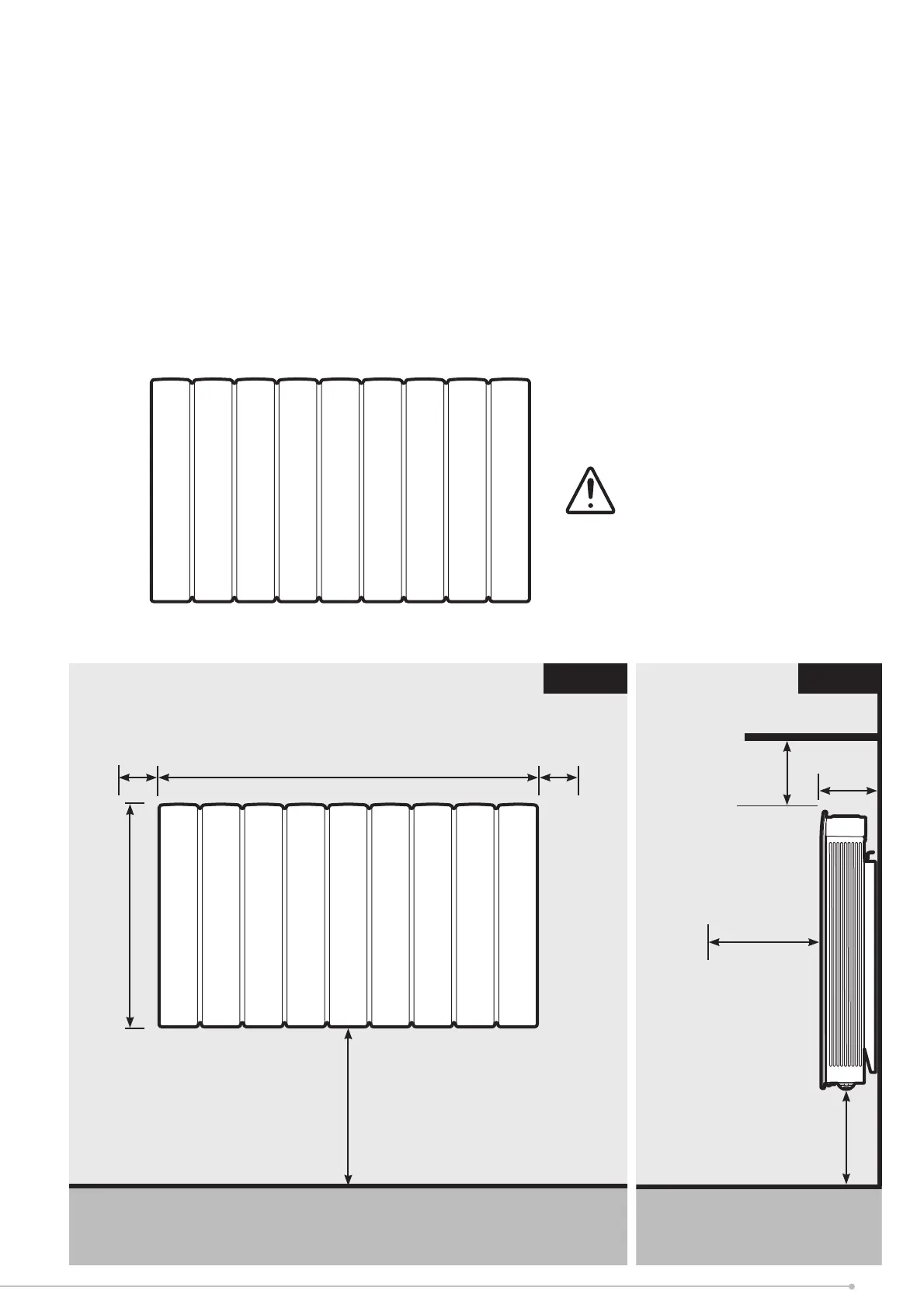

Minimum mounting clearance
300mm
300mm
(min)
‘E’
Shelf / Obstruction
Minimum front
clearance
*Please note correct product
orientation is with controller
facing top right side only
150mm
(min)
Fig. 3
Fig. 4
