3. Configuration and Functions
3.1 Device configuration

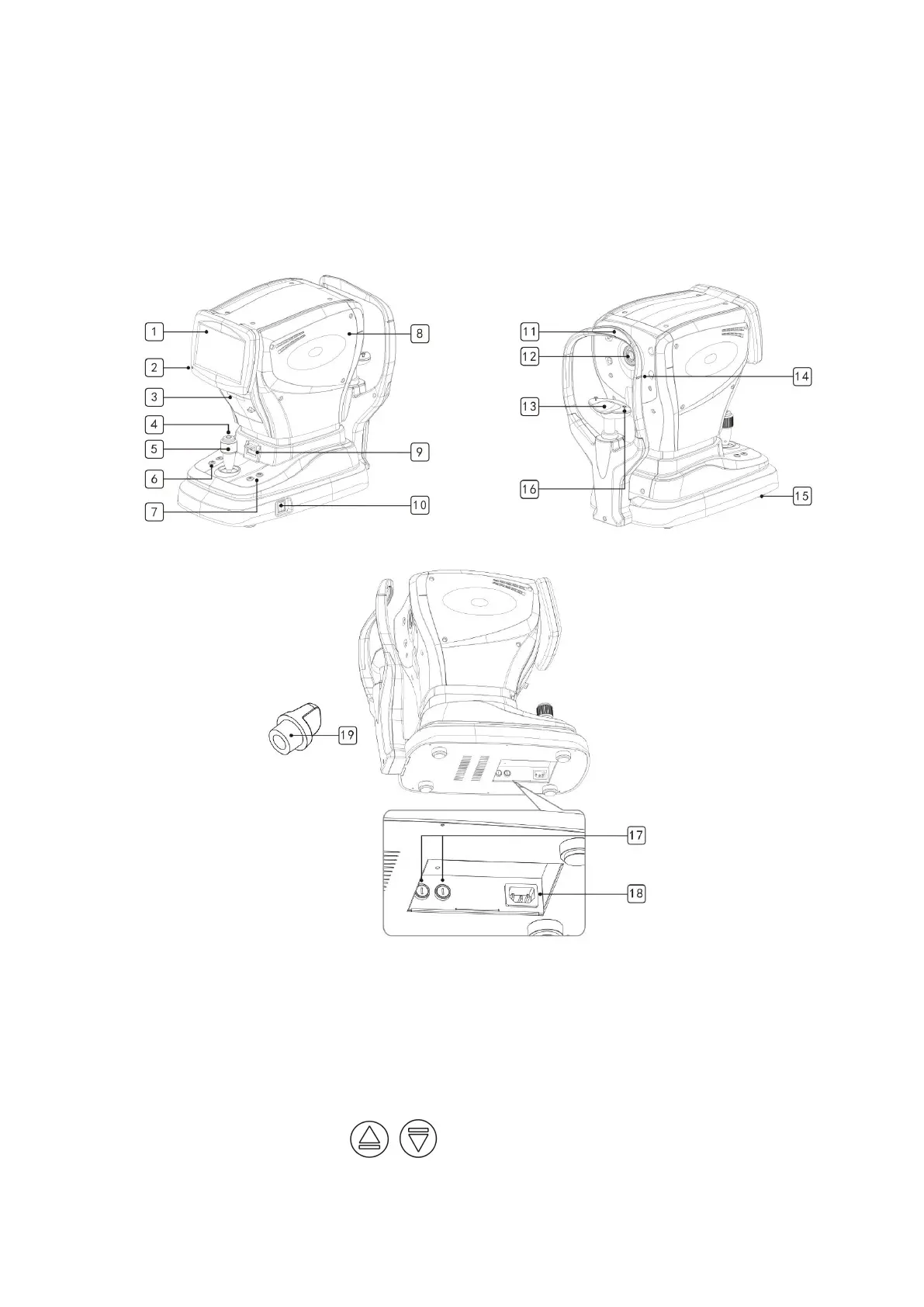

Figure 1 instrument view
1．7 inch resistive screen: Display measurement results. The screen can adjust angle.
2．Power pilot lamp: When the instrument is working, the indicator light is bright.
3．Printer: print measurement results.
4．Measurement button: When the measurement button is pressed, measurement starts.
5．Joystick: Adjust the measuring window position forward and backward/ Left and right / up and
down.
6．Chinrest up/down button（ / ）:Realize the function of lifting the chinrest.
