5. Measurement
5.1 Model eye measurement
1．Turn on main body power switch
Connect main body to power inlet by power cord, turn on the power.
2．Set model eye
Removing the chinrest paper, adjust the position of the model eye seat hole and the chinrest
hole to insert the fixing pins after alignment.
3．Adjust the measurement position and focus
After setting model eye, adjust joystick to focus until model eye circle focus (the clearest
position).
Adjust the joystick until appear a yellow aligned symbol, as shown in the following figure.

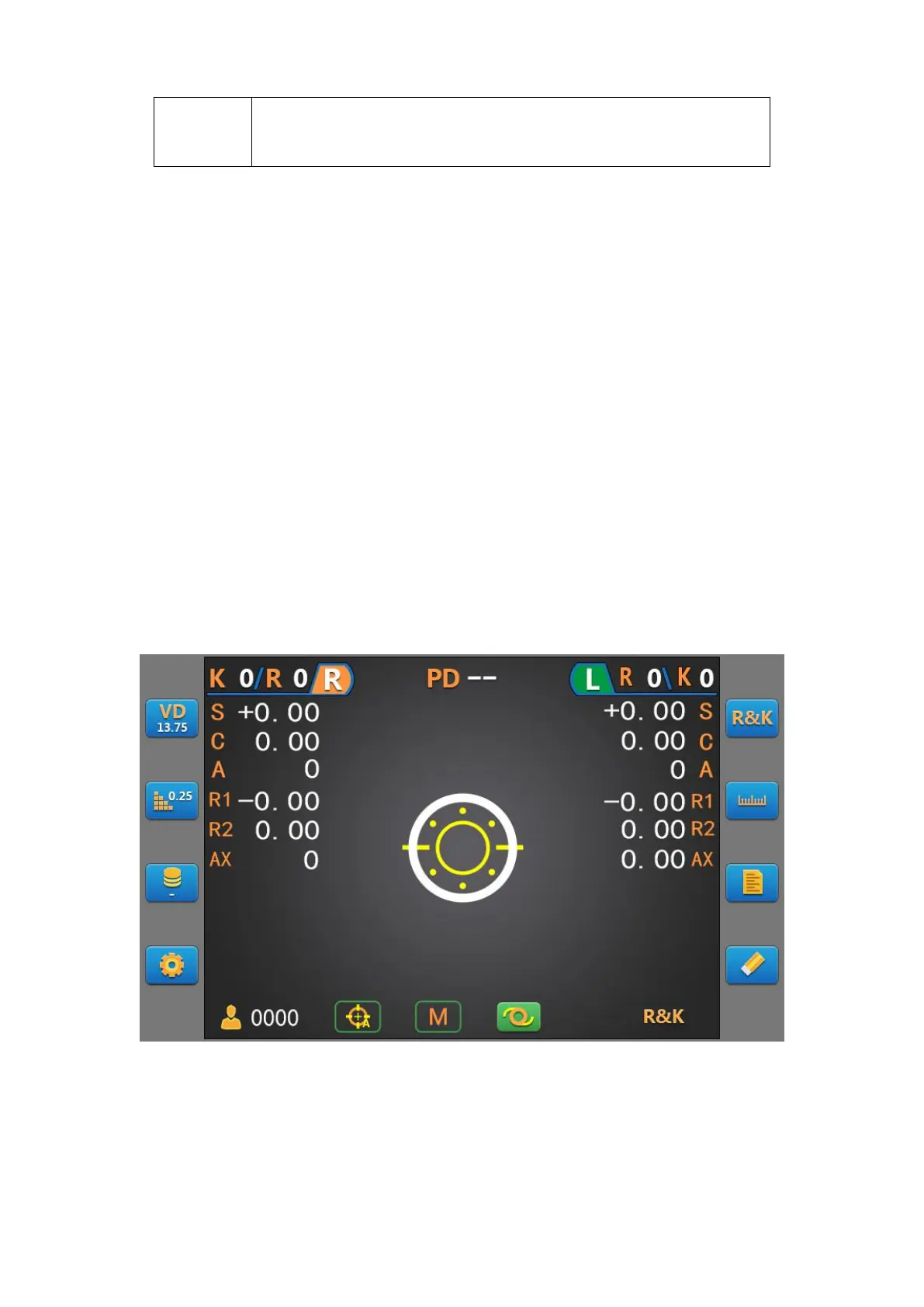

Figure 7 focus image
A
．
Height adjustment: By rotating the "5.Joystick" and "6.Chinrest up/down button" to adjust.
B
．
Moving the "5.Joystick" left and right to move the small bright spot around.
C
．
Focus adjustment: Tilt joystick front and rear, so that the mark of focus adjustment clearly
