Product Manual — Doc.
9323C
IV-CAMA3-20-N-W-1B, IV-CAMA3-20-N-SLVR-1B, IV-CAMA3-20-W-1B, and IV-CAMA3-20-SLVR-
1B • 40
NOTE:On cameras running firmware versions 5.1.82 or earlier, only Blocking Zone 8 can be used to
block displays and projection screens.

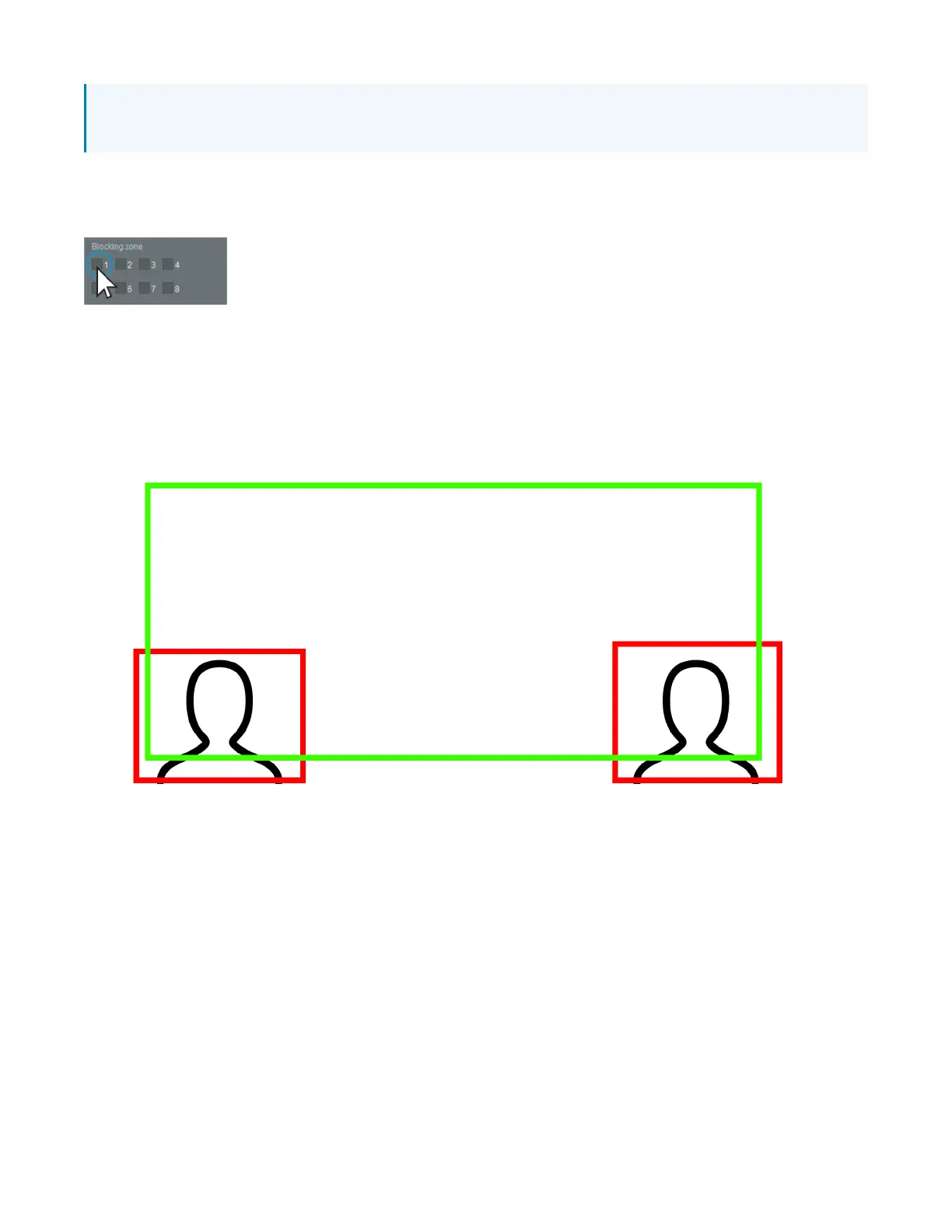

To set up a Blocking Zone, click on one of the check boxes in the Blocking Zone area of the settings pane
and draw the zone in your desired spot within the tracking zone. This process is identical to setting up
the Tracking Zone.
Tracking and Blocking Zone Configurations
For the best presenter tracking performance, ensure that Tracking Zones and Blocking Zones abide by
the following guidelines:
1. Audience members should be blocked with Blocking Zones 1 through 6. Alternately, draw the
Tracking Zone to exclude audience members, or remove front seating arrangements (if possible).
