Crestron DM NVX Series Design Guide

34 • DM NVX System Design Guide – DOC. 7977F
• Four of the 22 DM-NVX-350 decoders in each of the 10 locations are daisy
chained to connect the decoders in the video wall rooms. The 3-port switch of the
DM NVX endpoints consists of the following connections:
- SFP-1G-BX-U connection to the edge switch
- RJ-45 connection used in the daisy chain to connect the other video wall
endpoints
- RJ-45 connection to the TSW-760 touch screen for video wall room control

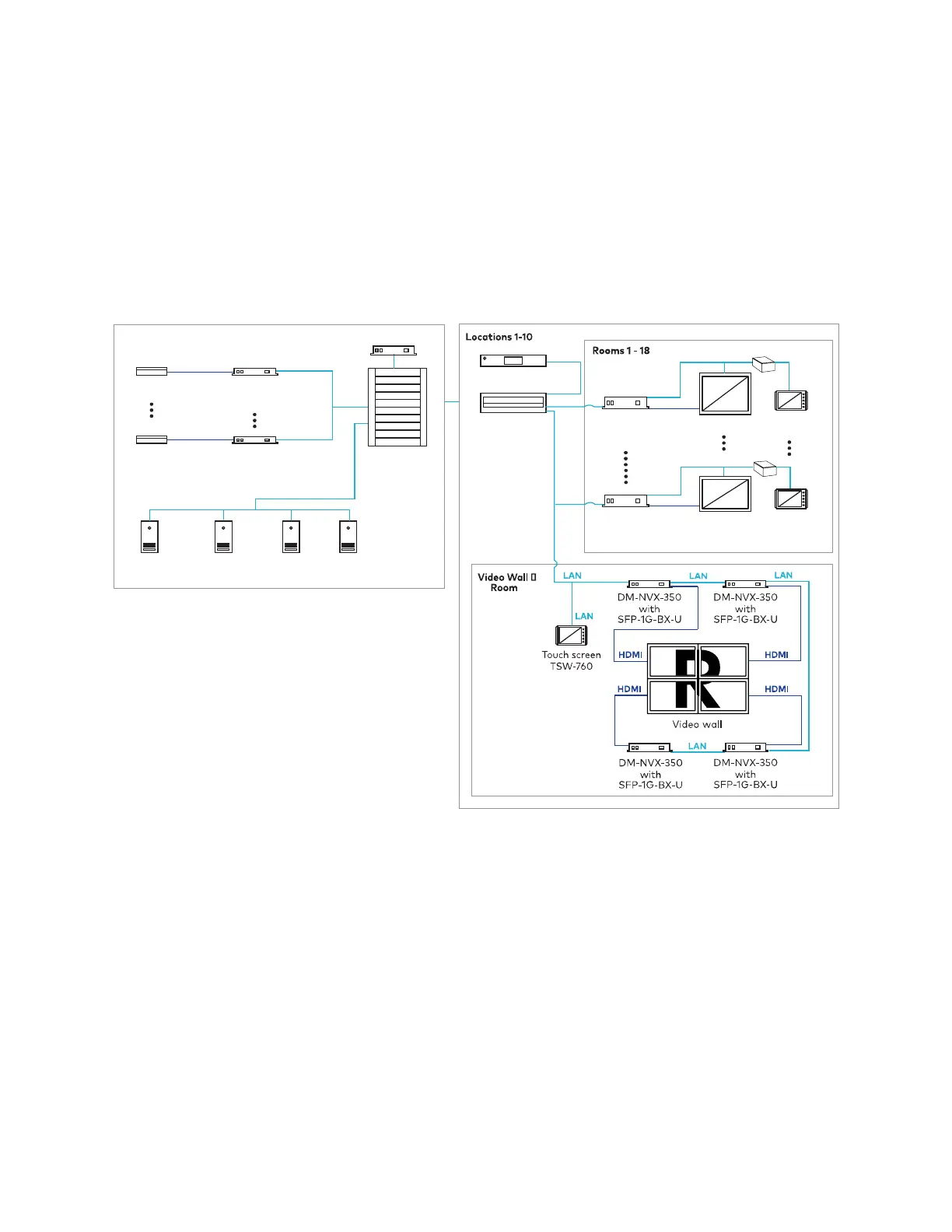

Case Study 3 Solution Diagram
AV source 1 DM-NVX-350
with
SFP-1G-BX-U
HDMI
AV source 563 DM-NVX-350
with
SFP-1G-BX-U
HDMI
LAN
LAN
LAN
Server
RADIUS
Network
switch
Network
switch
PRO3
HDMI
DM-NVX-350
with
SFP-1G-BX-U
Display
Touch screen
TSW-760
HDMI
DM-NVX-350
with
SFP-1G-BX-U
Display
Touch screen
TSW-760
Server
Active Directory
Server
DNS
MDF
Server
DHCP
LAN
LAN
LAN
LAN
LAN
DM-XIO-DIR-ENT
PWE-4803RU
PWE-4803RU

Crestron DM NVX Series Specifications

General

Latency	<1 Frame
Dimensions	Varies by model
Weight	Varies by model
Video Input	HDMI
Video Output	HDMI
Audio Formats	PCM, Dolby Digital, DTS
Audio Inputs	HDMI, Analog
Audio Outputs	HDMI, Analog
Control	Crestron Control System
HDCP	HDCP 2.2
Security	AES encryption
