Wiring the GLS-ODT-C-NS
Connect the GLS-ODT-C-NS to a standalone lighting system such as a Zūm wired or wireless,
GLPP, GL-IPAC-SW8, or GLPAC.
To integrate with a Crestron control system, use a GLS-SIM interface module.

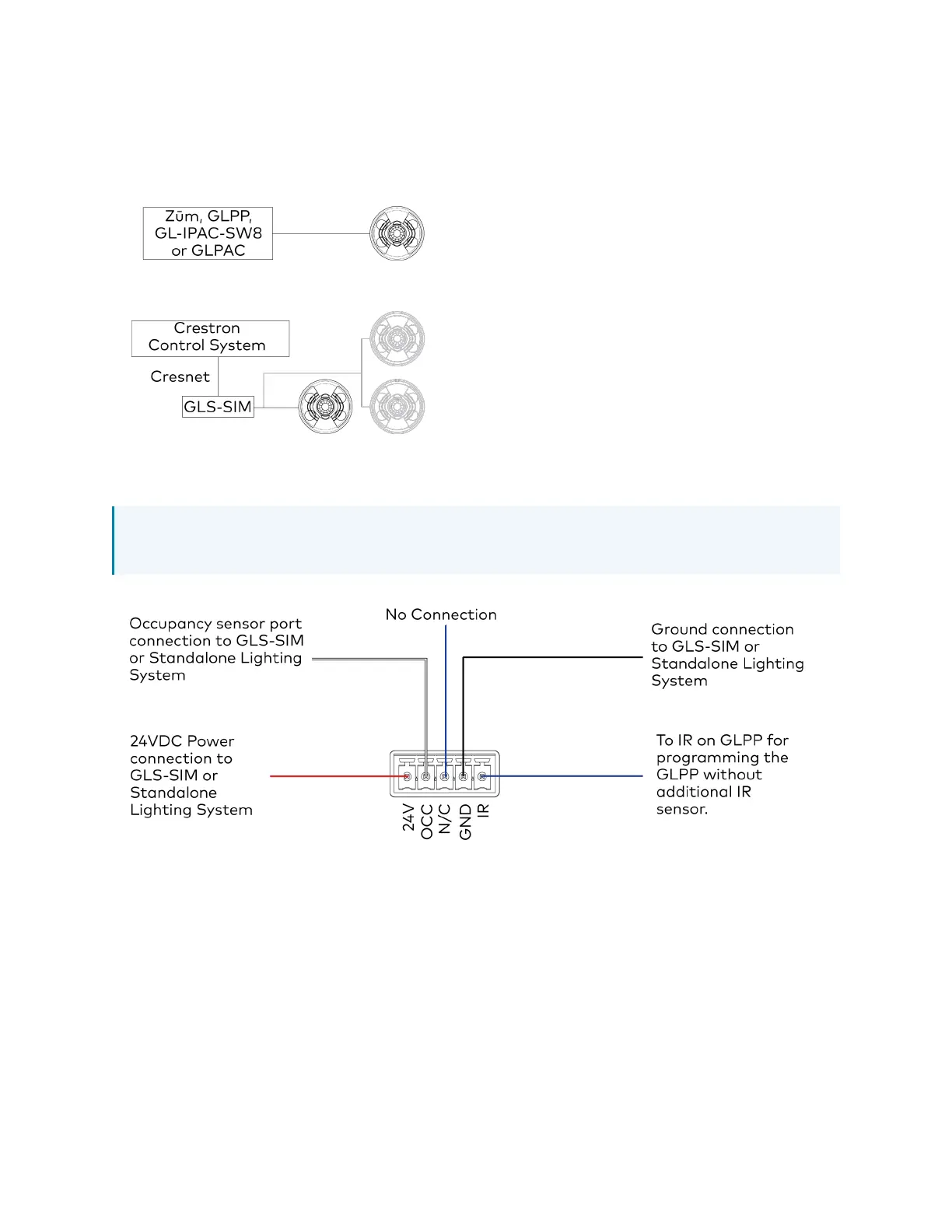

To connect the GLS-ODT-C-NS, make the 24V, OCC, GND, and IR connections as shown in the
following image.
NOTE: The IRport is used only to program the GLPP through the GLS-ODT-C-NS using the
GLS-REMOTE-ODT/OIR.
