Isys
®
5.7” Wall Mount Touchpanel Crestron TPS-6L
Audio Menu
To set the audio communication parameters, select the Audio button located on the
SETUP MENU and display the following AUDIO SETUP menu.

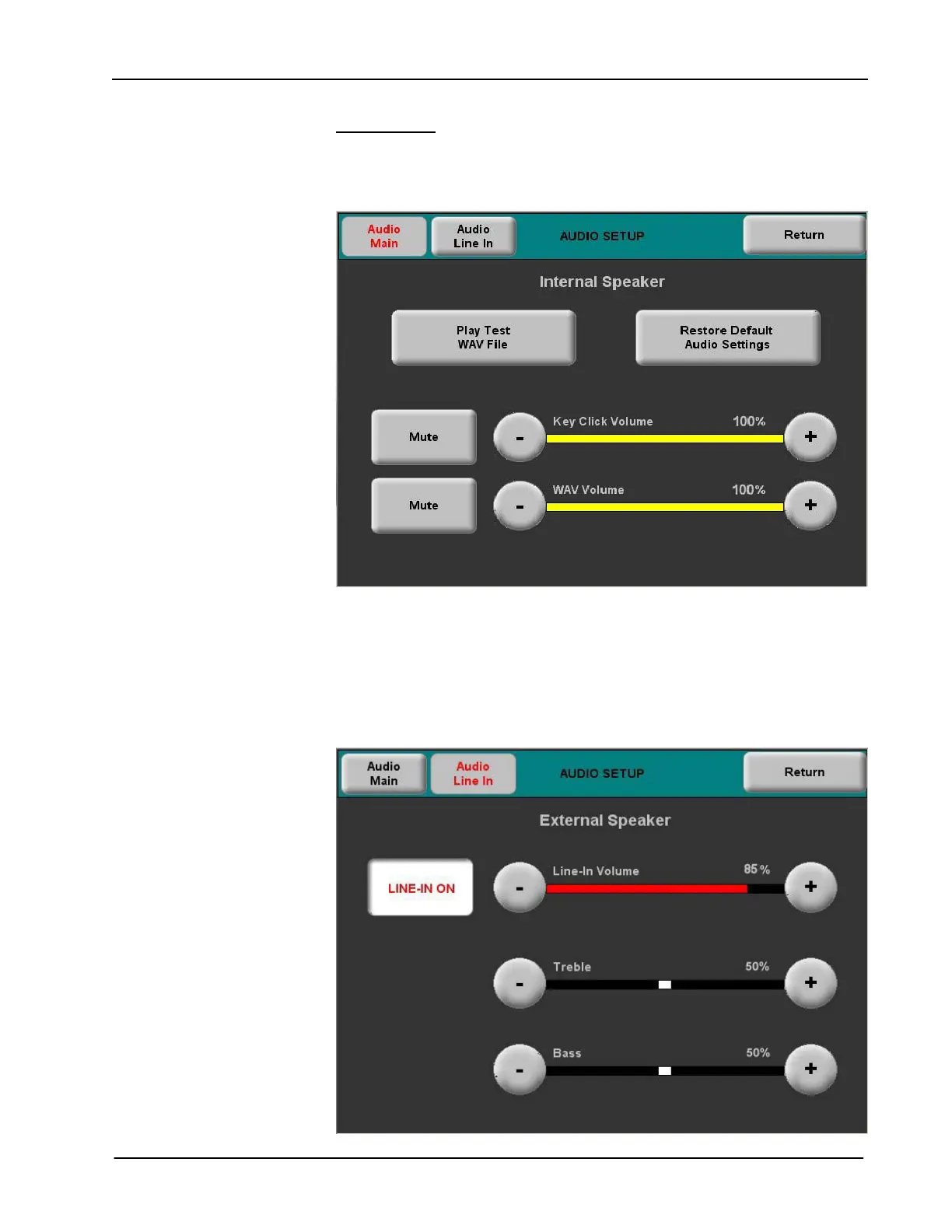

AUDIO SETUP Menu – Audio Main
• With the Audio Main button pressed (default), you can verify the function
of the internal speaker, restore default audio settings and adjust the relative
level (0% to 100%) or mute the key click volume and the WAV file
volume.
• Pressing Audio Line In displays the following menu screen which is used
to set levels for the speaker option, SPK-6L, if installed.
AUDIO SETUP Menu – Audio Line In
20 • Isys
®
5.7” Wall Mount Touchpanel: TPS-6L Operations & Installation Guide - DOC. 6630A
