Crestron TPS-6L Isys
®
5.7” Wall Mount Touchpanel
Configuration Manager
Configuration Manager is the view where programmers “build” a Crestron control
system by selecting hardware from the Device Library.
• To incorporate the TPS-6L into the system, drag the TPS-6L from the
Touchpanels | Touchpanels (Cresnet) folder (or the Touchpanels (Ethernet)
folder) of the Device Library and drop it in the System Views.

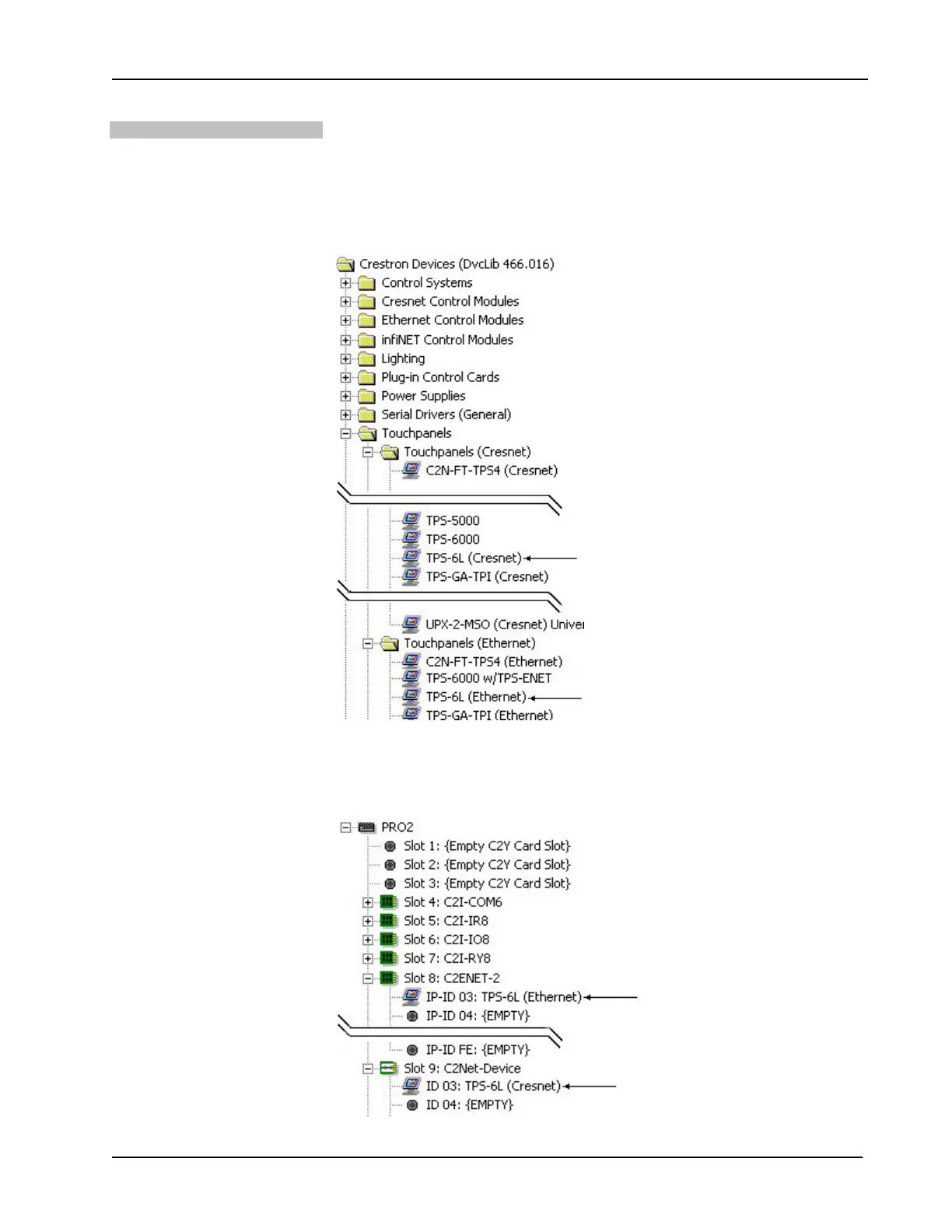

Locating the TPS-6L in the Device Library
• The system tree of the control system displays the device in the appropriate
slot(s) with a default Net ID and default IP ID as shown in the following
illustration.
C2Net Device, Slots 8 and 9
Operations & Installation Guide – DOC. 6630A Isys
®
5.7” Wall Mount Touchpanel: TPS-6L • 37
