Product Manual Doc. 8550E TSW-70 Series 127
Connect the Touch Screen

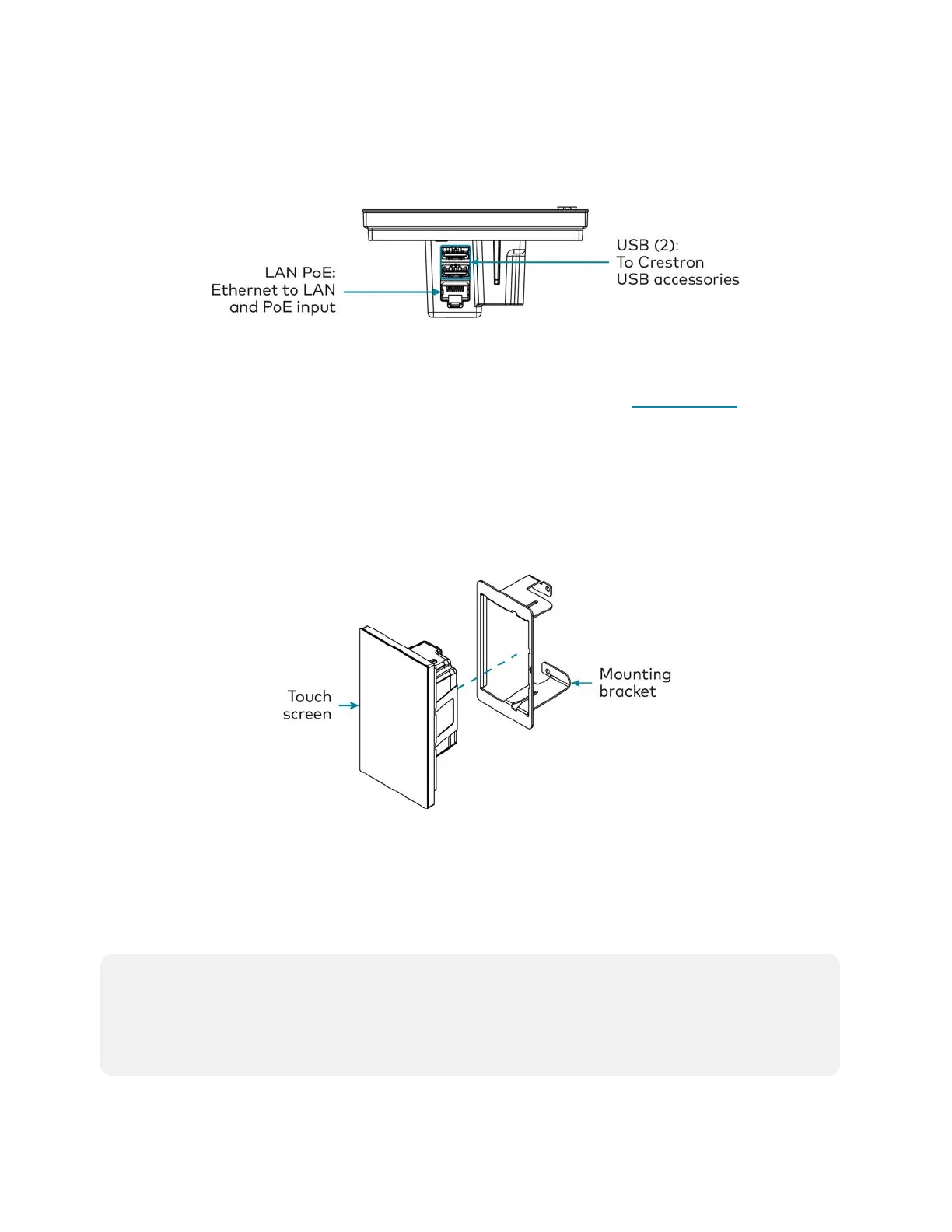

Route all necessary cables through the rear of the mounting bracket, and then make connections
to the of the touch screen rear housing.
Observe the following when connecting the touch screen:
l
Power and data connection is provided to the touch screen by a single Ethernet cable. A
Crestron PoE (Power over Ethernet) power supply, such as the PWE-4803RU, or a PoE-
capable network switch is recommended (neither included).
l
Apply power after all connections have been made.
Mount the Touch Screen
After all connections have been made, push the touch screen gently into the mounting bracket so
that its rear housing is secured within the center opening of the mounting bracket.
If the touch screen is not level after installation, pull it out of the mounting bracket and loosen
the screws holding the bracket into place. This procedure allows the mounting bracket to be
rotated slightly.
Once the mounting bracket has been repositioned, retighten the screws, reinstall the touch
screen into the bracket, and ensure that the touch screen is now level.
NOTE:Toclean or disinfect a touch screen display, use a soft, clean, damp (not wet) cloth with
any commercially available non-ammonia glass cleaner or disinfectant cleaner. Bezels do not
provide a complete watertight seal, so apply cleaning solution to the cloth rather than the
surface of the touch screen. Wipe the touch screen clean and avoid ingress of moisture beneath
the bezels.
