46 TSW-70 Series ProductManualDoc.8550E
Physical Description
The TSW-70 Series provides the following connectors and indicators.

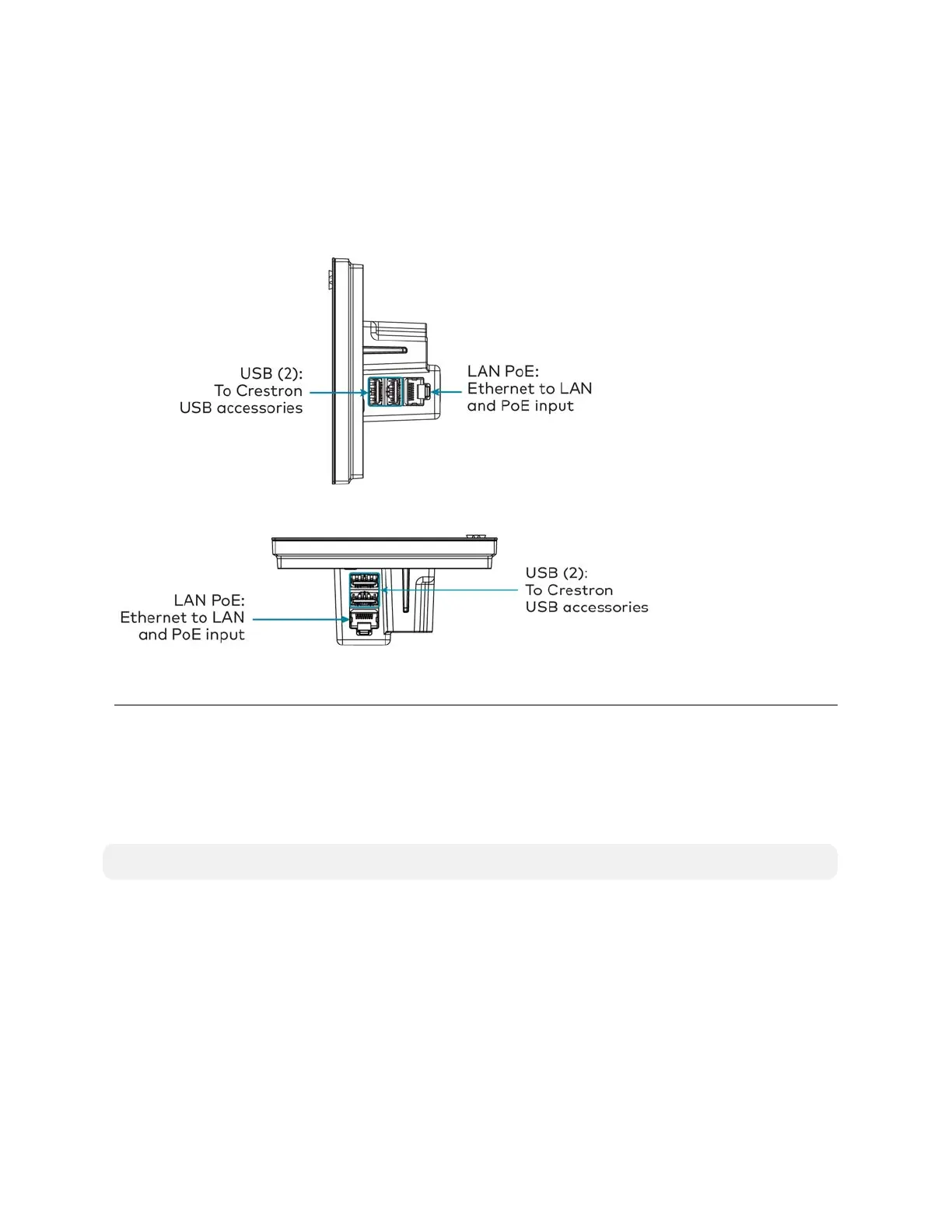

TSW-570, TSW-770, and TSW-1070 Series Connectors
TSW-570PSeriesConnectors
Connectors and Indicators
LANPoE (1) 8-pin RJ45 connector, female, with 2 LEDindicators;
100BASE-TX Ethernet port;
PoE+ PD port;
Green and yellow LEDs indicate Ethernet port status
USB (2)USBType Aconnectors, female;
USB 2.0 host ports
NOTE: The touch screen supports the use of a single light bar or status indicator accessory.
