Connect

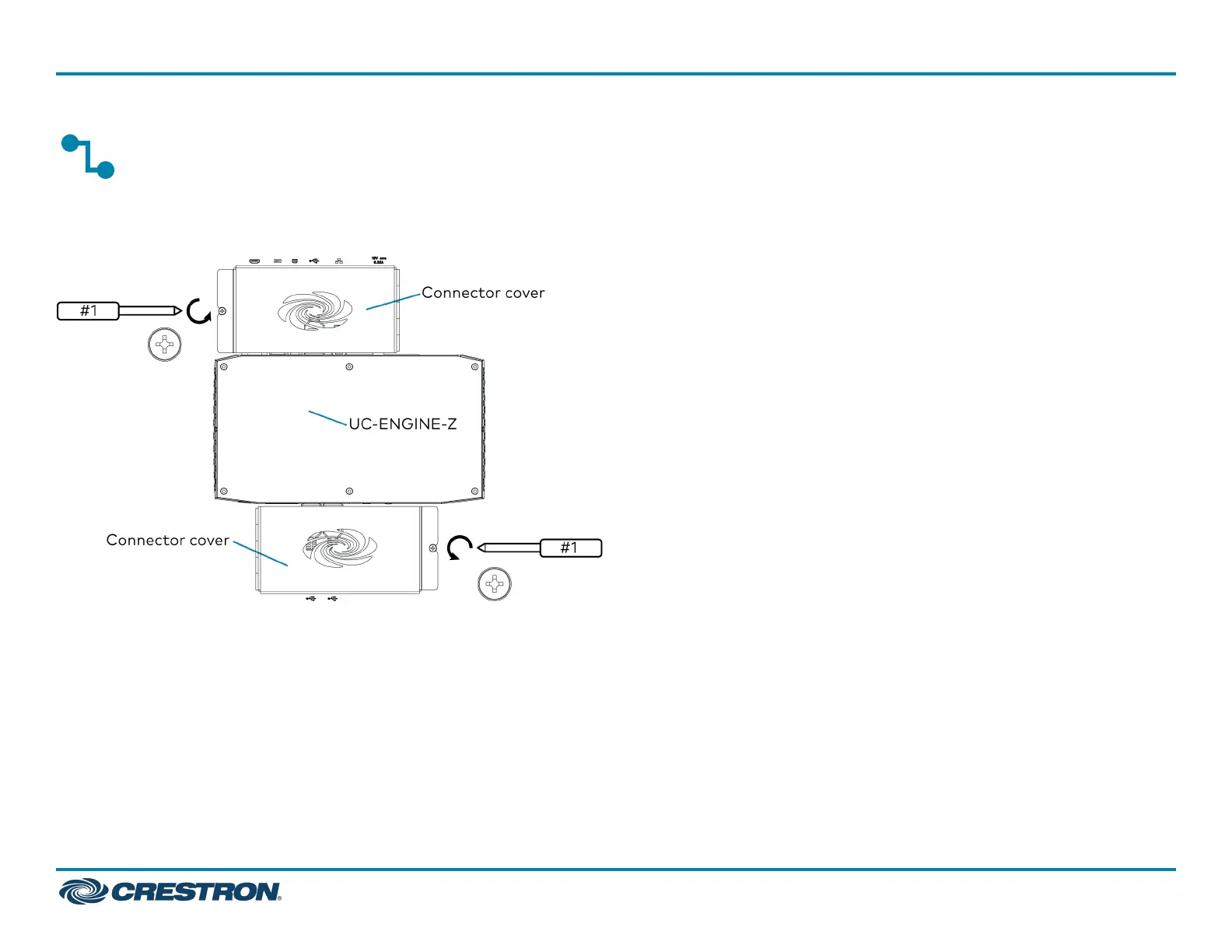

1. Remove the connector covers prior to making UC-ENGINE-Z
connections on the UC-BRKT-100-Z-ASSY bracket assembly.
1. Make connections to the TS-1070-B-S touch screen and
UC-BRKT-100-Z-ASSY bracket assembly as shown in the following
illustration.
UC-B160-Z
QuickStart
Crestron Flex Wall Mount UC Video Conference System for Zoom Rooms™ Software
3
