8 • TSW-560, TSW-760, and TSW-1060 Product Manual — Doc. 7927K
l Use the keypad to make a new entry.
l
Tap the clear button in the text field to clear any previous entry.
l
Tap the delete button to delete the last digit.
l Tap Save to save a new entry or tap < CANCEL to discard any changes. The display returns
to the Static IP Ethernet Setup screen.
After new settings have been saved, tap APPLY CHANGES on the Static IP Ethernet Setup screen
to apply the new settings and stay in setup mode. Tap REBOOT to exit setup mode and reboot the
touch screen.
Tap < BACK to return to the Ethernet Setup screen.
Tap < BACK on the Ethernet Setup screen to return to the Setup screen.
IP Table Setup
Tap IP Table Setup on the Setup screen to display the Ethernet Setup - IP Table screen.

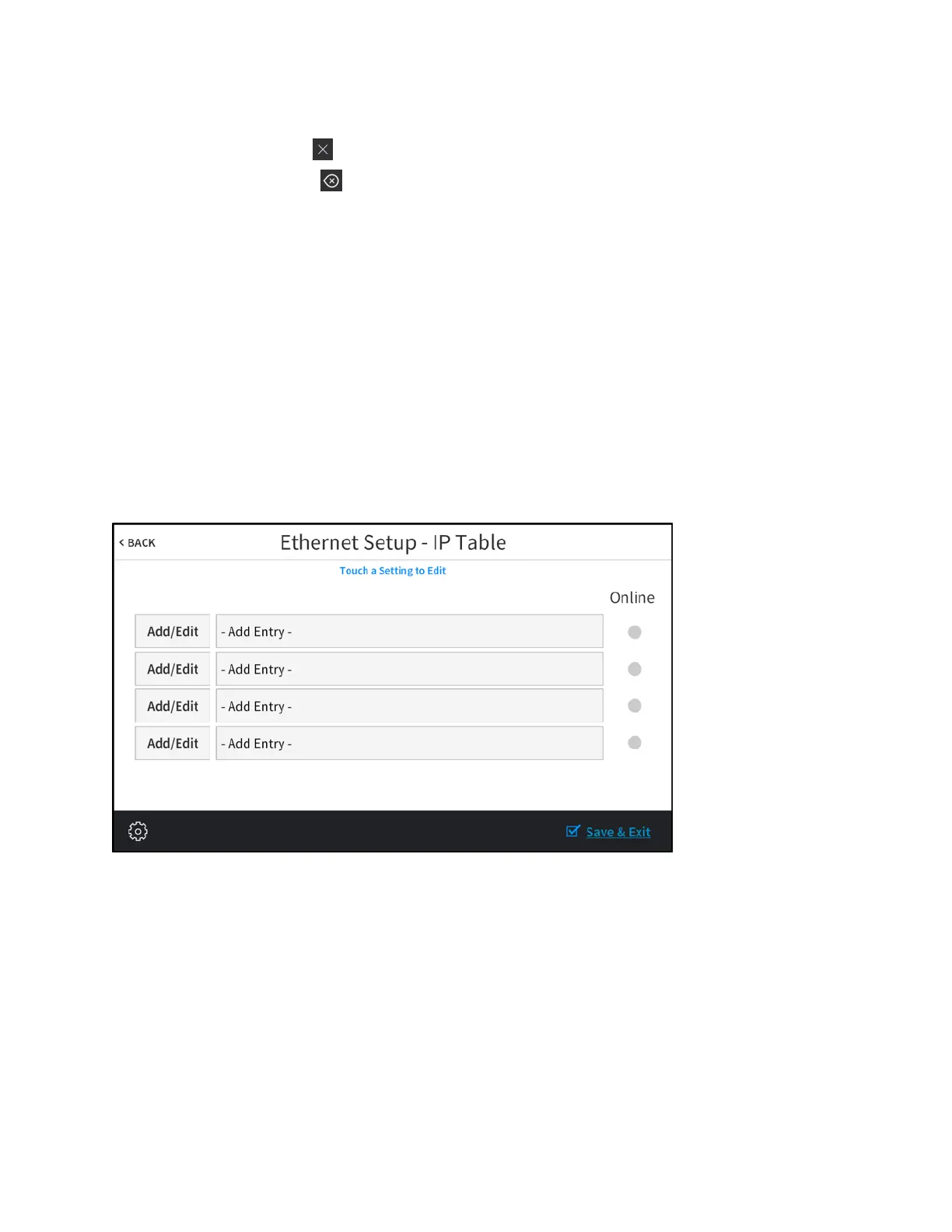

Ethernet Setup - IP Table Screen
Use the Ethernet Setup - IP Table screen to view and edit the IP table settings for connecting the
touch screen to a control system. The Ethernet Setup - IP Table screen also provides an Online
indicator for each IP table entry. (Green indicates that the control system is online.)
