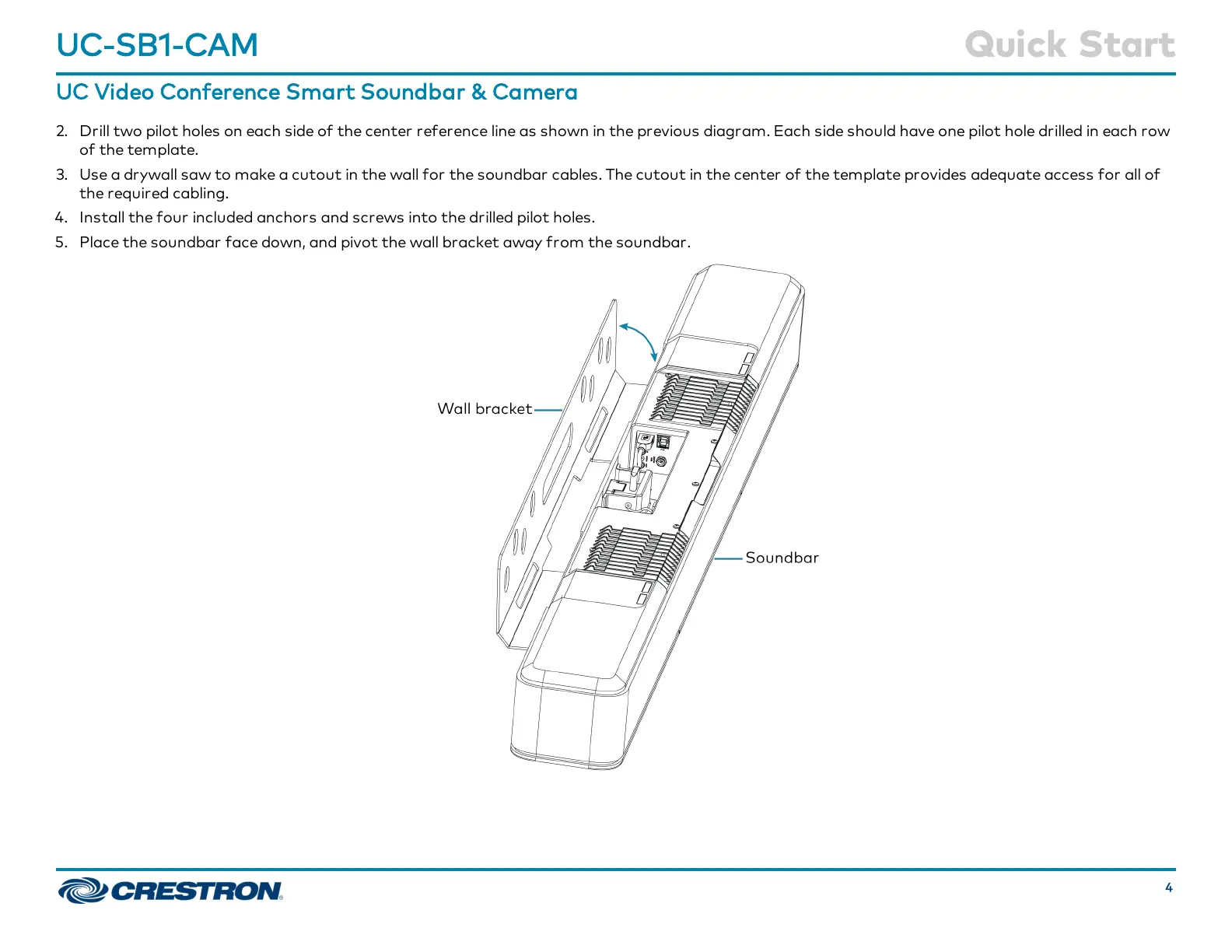

2. Drill two pilot holes on each side of the center reference line as shown in the previous diagram. Each side should have one pilot hole drilled in each row
of the template.
3. Use a drywall saw to make a cutout in the wall for the soundbar cables. The cutout in the center of the template provides adequate access for all of
the required cabling.
4. Install the four included anchors and screws into the drilled pilot holes.
5. Place the soundbar face down, and pivot the wall bracket away from the soundbar.
4
UC-SB1-CAM
QuickStart
UC Video Conference Smart Soundbar & Camera

Other manuals for Crestron UC-SB1-CAM

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Crestron UC-SB1-CAM and is the answer not in the manual?

Crestron UC-SB1-CAM Specifications

General IconGeneral
Microphone frequency response20 - 8000 Hz
Megapixel12 MP
Sensor typeCMOS
Gain control typeAuto
Optical sensor size1/2.3 \
Aperture range (F-F)2.8 - 2.8
Horizontal field of view120 °
Product colorBlack
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Maximum frame rate30 fps
Supported video modes1080p
Maximum video resolution1920 x 1080 pixels
USB cable length1.83 m
Power source typeAC
Power consumption (typical)22 W
Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)10 - 90 %
CertificationCE, IC, UL 62368‑1, CSA C22.2 62368‑1, EN 62368‑1, IEC 62368‑1, FCC Part 15 Class B, ICES‑003 Issue 5 Class B, EN55022:2010 Class B, AS/NZS CISPR22:2010 Class B, AS/NZS CISPR 22:2010 Class B, EN55024:2010, EN61000‑3‑2:2014, EN61000‑3‑3:2013, RoHS compliant
Weight and Dimensions IconWeight and Dimensions
Depth100 mm
Width1108 mm
Height117 mm
Weight6800 g
