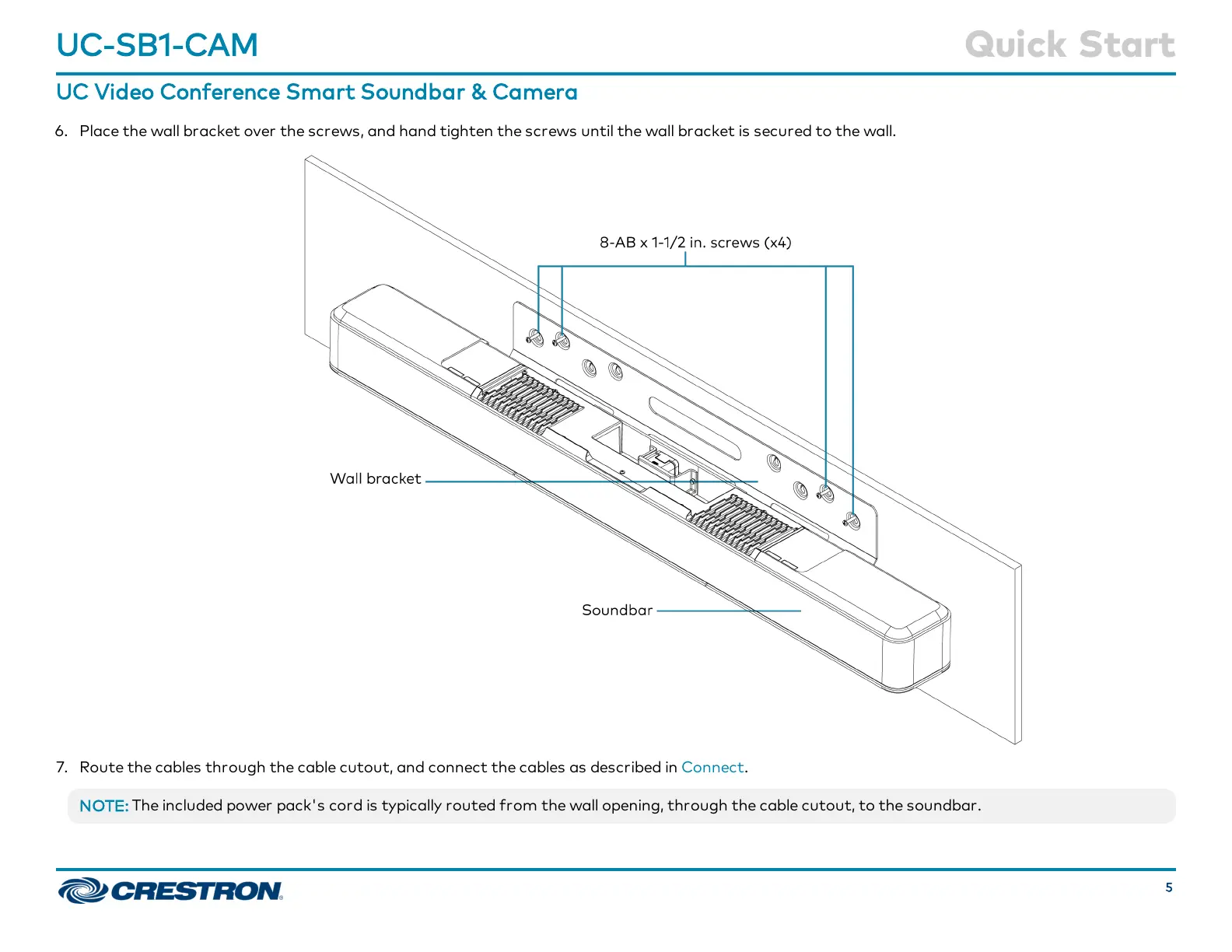

6. Place the wall bracket over the screws, and hand tighten the screws until the wall bracket is secured to the wall.
7. Route the cables through the cable cutout, and connect the cables as described in Connect.
NOTE: The included power pack's cord is typically routed from the wall opening, through the cable cutout, to the soundbar.
5
UC-SB1-CAM
QuickStart
UC Video Conference Smart Soundbar & Camera

Other manuals for Crestron UC-SB1-CAM

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Crestron UC-SB1-CAM and is the answer not in the manual?

Crestron UC-SB1-CAM Specifications

General IconGeneral
Microphone frequency response20 - 8000 Hz
Megapixel12 MP
Sensor typeCMOS
Gain control typeAuto
Optical sensor size1/2.3 \
Aperture range (F-F)2.8 - 2.8
Horizontal field of view120 °
Product colorBlack
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Maximum frame rate30 fps
Supported video modes1080p
Maximum video resolution1920 x 1080 pixels
USB cable length1.83 m
Power source typeAC
Power consumption (typical)22 W
Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)10 - 90 %
CertificationCE, IC, UL 62368‑1, CSA C22.2 62368‑1, EN 62368‑1, IEC 62368‑1, FCC Part 15 Class B, ICES‑003 Issue 5 Class B, EN55022:2010 Class B, AS/NZS CISPR22:2010 Class B, AS/NZS CISPR 22:2010 Class B, EN55024:2010, EN61000‑3‑2:2014, EN61000‑3‑3:2013, RoHS compliant
Weight and Dimensions IconWeight and Dimensions
Depth100 mm
Width1108 mm
Height117 mm
Weight6800 g
