Pinto BT-POM 1212 - Revision 5

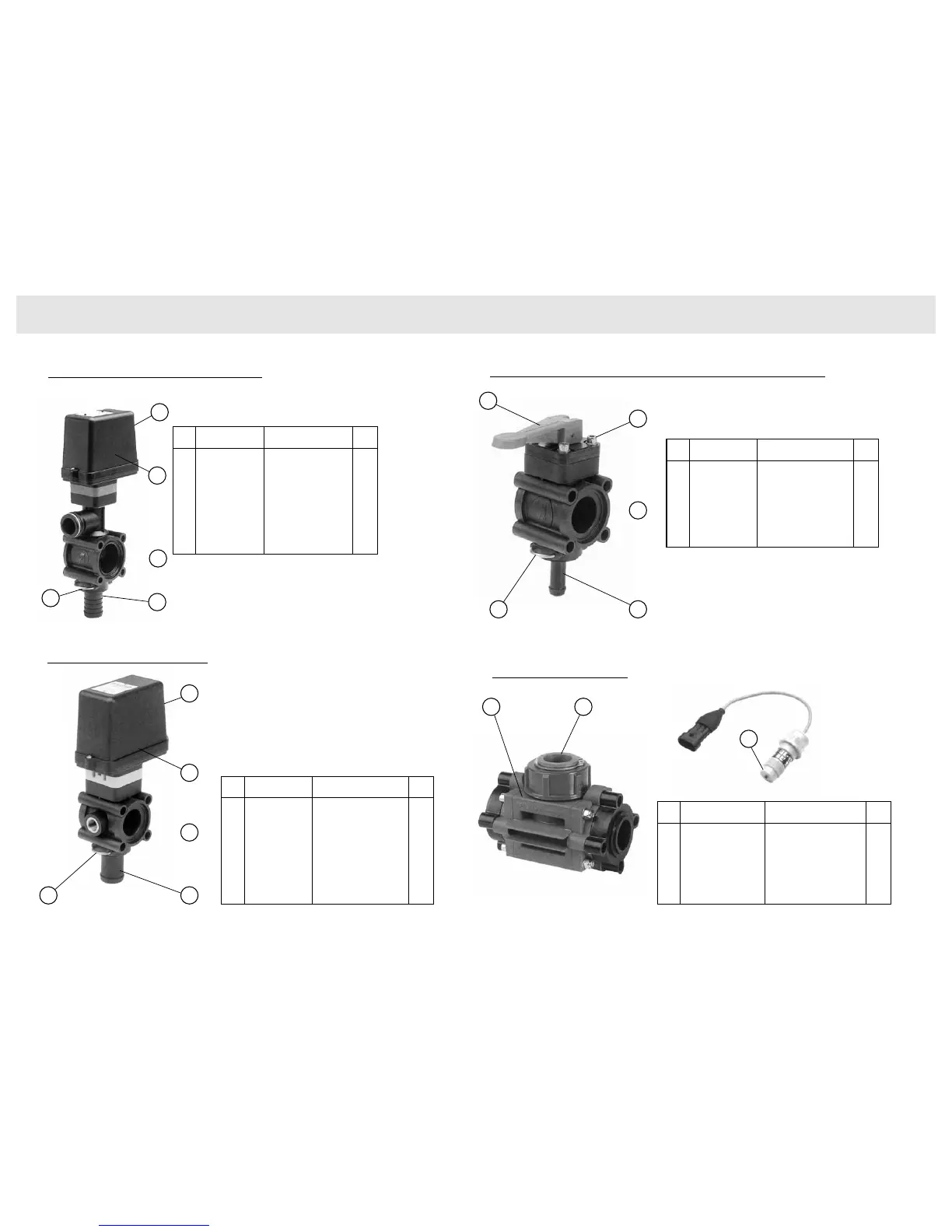

Assembly Drawings & Parts
Liquid Control System
Electric Regulating Valve
1
2
3
45
Pos Part No Description Qty
1 A463024S Complete Valve 1
2 A4653925S Motor 1
3 A463020.130 Regulator Stem Kit 1
4 A463001.125 Tail/Seat 1
5 A461511.040 Clip 1
[Internal]
Pos Part No Description Qty
1 POL00375908A Complete Valve 1
2 POL41316399 Rapid Check Turbine
Assembly 1
3 POL413003AK.CR Sensor with Plug 1
Flowmeter Assembly
12
3
Pos Part No Description Qty
1 A463011ST Complete Valve 1
2 A4653902S Motor 1
3 A463001.550 Regulator Stem Kit 1
4 A463001.125 Tail/Seat 1
5 A461511.040 Clip 1
Boom Shut-Off Valve/Dump Valve
1
2
3
4
5
[Internal]
Shut-Off Taps - Tank Rinse, Flushing Tap & Agitators
1
2
3
45
[Internal]
Pos Part No Description Qty
1 A463051 Complete Valve 1
2 A463051.140 Handle 1
4 A463001.113 Tail 1
5 A010002 Clip 1
