7.9
Pinto BT-POM 1212 - Revision 5
Section 7

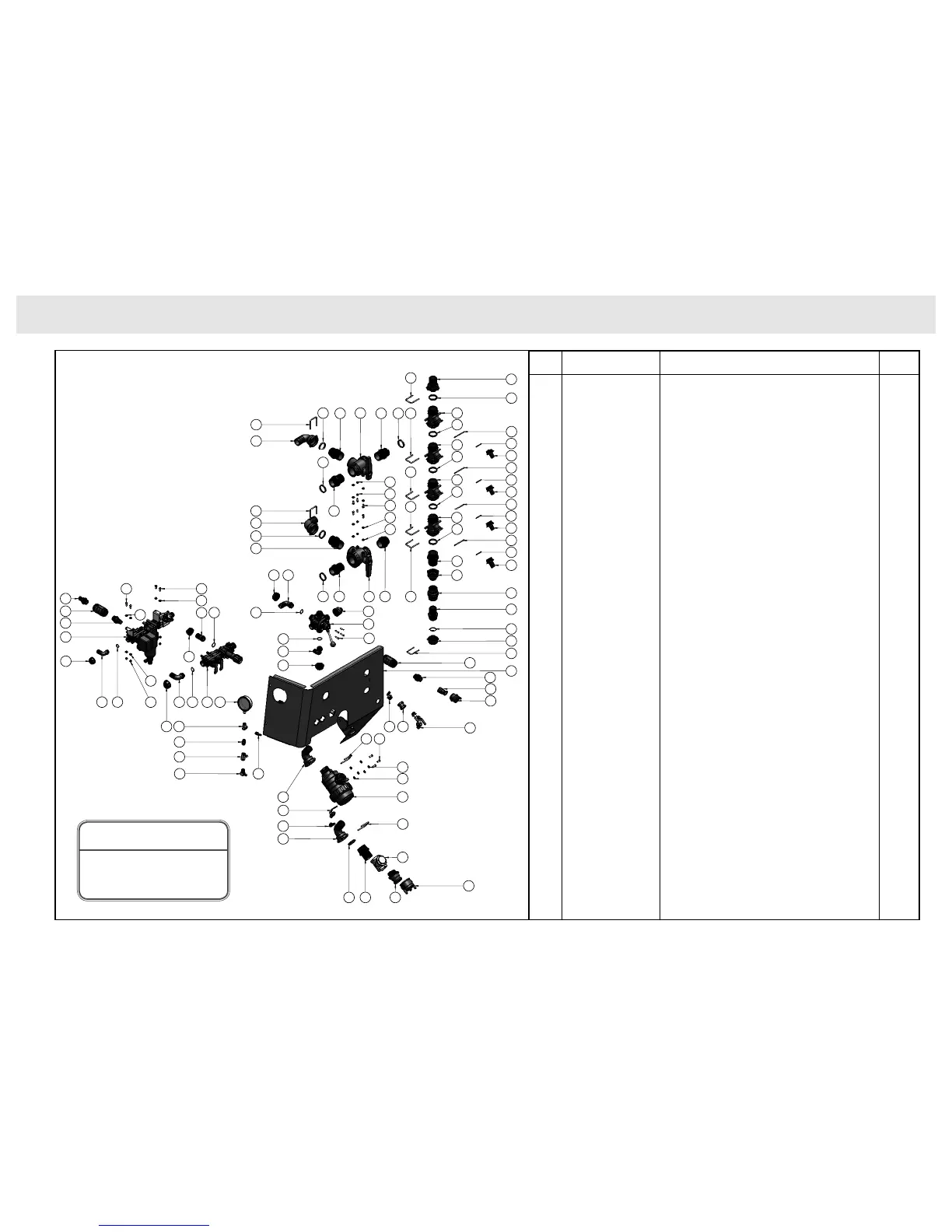

KB-1105A-2 - Pinto Panel Assembly Autorate
1 A-EL3412 ELBOW 3/4” BSPM X 1/2” BARB 1
2 A010005 INLET FORK 4
3 A010006 FORK 453 SERIES 1
4 A010007 FORK D.5 INTERN.59 9
5 A103425 HOSETAIL MALE 1” X 1” 2
6 A106533 TAIL 1 1/4” TO 32MM 1
7 A1090750 HOSETAIL T7F D.50 1
8 A1091525 HOSETAIL T5M D.25 3
9 A1091530 HOSETAIL T5F D.30 1
1 0 A116425 ELBOW 0.25 FOR FLY 1
11 A116525 ELBOW 1 1/4” TO 25MM HOSE 1
12 A116533 ELBOW 1 1/4” - 32MM HOSE 2
13 A1190750 ELBOW T7F D.50 4
14 A179275 MANIFOLD 3 WAY T7 4
15 A200040 FLY NUT 1” 1
16 A200050 FLY NUT 1 1/4” 4
17 A20502070 NIPPLE 2” 1
18 A219060 END CAP T6F 1
19 A245035 REDUCER 3/4” MALE - 1 1/4” FEMALE 1
20 A245067 REDUCER 1 1/2” MALE - 2” FEMALE 1
21 A2491661 BULKHEAD T6M 1 1/2” M BSP 1
23 A2491771 BULKHEAD T7M 2” MALE 7
23 A250040 NIPPLE 1” 1
24 A3160F3 FILTER SUCTION T7 50MM 1
25 A454237 BALL VALVE POLY 2” 3 WAY 2
26 A463CCRO15 SERVO DUMP FLOW METER ASSEMBLY 1
27 A465CCRO01 MANUAL PRV 2 TAPS 1
28 A504015 NON RETURN VALVE 1 1/2” FEMALE 1
29 AG10041 O RING 1” 1
30 AG10051 O RING 1 1/4” 4
31 AG11017 O RING 22
32 AG11023 O RING 1
33 AG11063 O RING EPDM 4
34 B163.604.4 ELBOW 10MM 90DEG C/W 1/2” WING NUT 1
35 B165.1501.4 BALL VALVE 1/2” X 3/8” RH 1
36 BALL12F2M BALL VALVE MINI 1/2” FF 2 WAY 1
37 BALL34BIB BALL BIBCOCK 3/4” 1
38 BP-112A SWING CHECK VALVE 50MM BRASS 1
39 BP-650-4 CONTROL PANEL PINTO 1
40 K-100-A CAMLOCK 1” FEMALE THREAD “A” POLY 1
41 K-100-CAP CAMLOCK 1” CAP “DC” POLY GLASS 1
42 K-200-CAP CAMLOCK 2” CAP “DC” POLY GLASS 1
43 K-200-F CAMLOCK 2” MALE THREAD “F” POLY 1
44 L-G1611 GAUGE 100MM 0-1600KPA 3/8” B/E 1
45 PH4322 SOCKET 3/4” 1
46 PH5023 NON RETURN VALVE 1” 2
47 POLVTD31300 POLMAC 1 1/4” 5 WAY VALVE 1
48 TFA3838 TAIL BRASS 3/8” BSPM X 3/8” TAIL 1
49 TFEL1212 ELBOW 1/2” BSPM X 1/2” TAIL 1
50 TFM1238 NIPPLE 1/2” X 3/8” BRASS 1
51 TFT3838FF TEE 3/8” BSPF BRASS 1
52 M8X20 M8 X 20 SET SCREW HT ZP 13
53 M8NNUT M8 NYLOC NUT HT ZP 4
54 M8FWASHER M8 FLAT WASHER ZP 17
55 M8SWASHER M8 SPRING WASHER ZP 9
56 M6X30BHSCREW M6 X 30 BUTTON HEAD SCREW S/S 4
Pos Part No Description Qty
These drawings are for illustration
purposes only.
Please refer to the parts list.
NOTE
