Pinto BT-POM 1212 - Revision 5

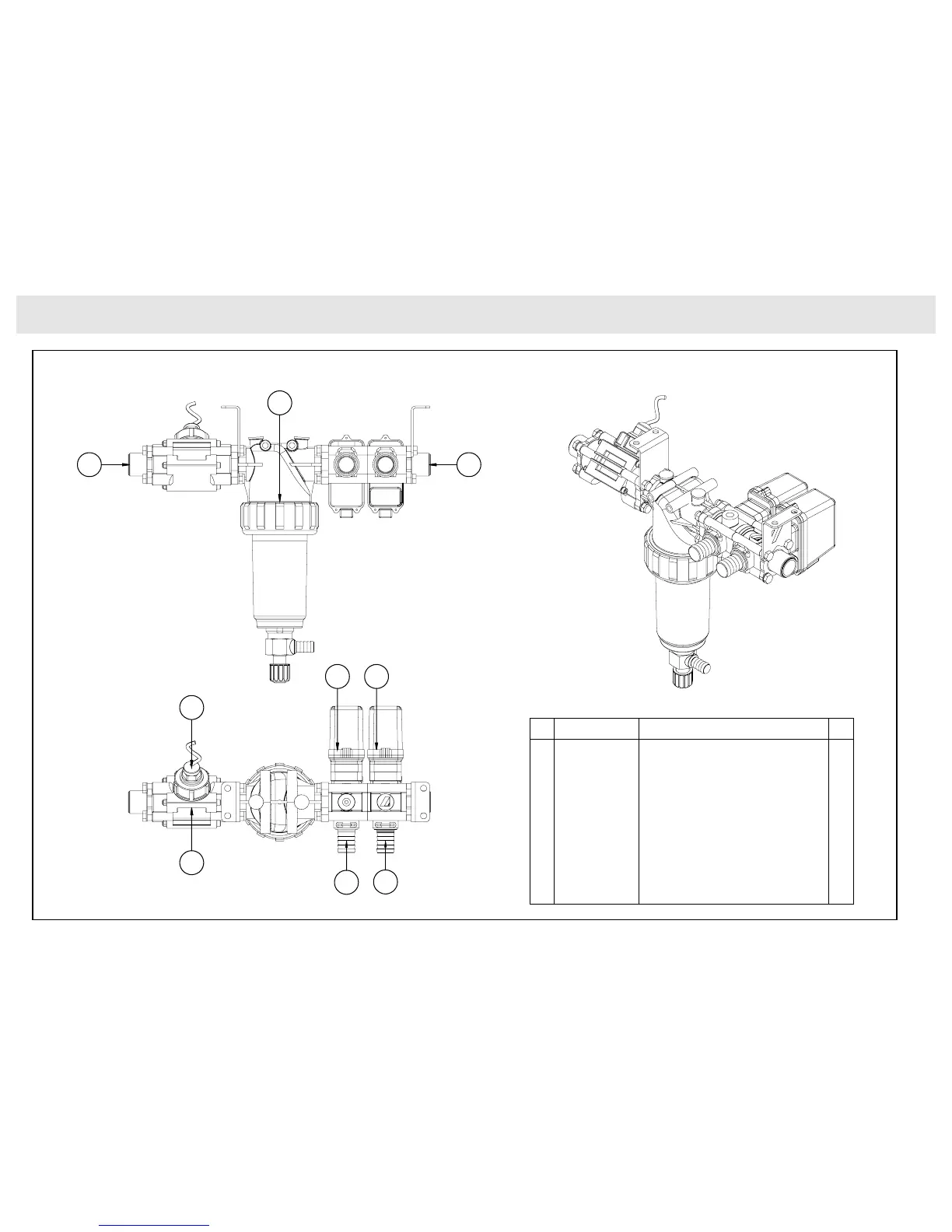

Assembly Drawings & Parts
A463CCRO15 - Servo/Dump/Flowmeter
Pos Part No Description Qty
1 A463001ST DUMP/SECTION VALVE 3 WIRE 1
2 A463024S SERVO/PROP CONTROL VALVE 7 SEC 1
3 A32621135 FILTER COMPLETE 80MESH FLANGED 1
4 POL00375908A FLOW METER R/CHECK ARAG FLANGE 1
5 POL413003AK.CR FLOW SENSOR SQ AMP WAVE 1
6 A463001.125M HOSE TAIL FOR 463 SERIES 25MM 1
7 A463001.125 HOSE TAIL FOR 463 SERIES 1” 1
8 A463000.040 FLANGE 463 SERIES 1” BSP 1
9 A463000.140 FLANGE FOR 463 SERIES VALVE 1” 1
