7.27
Pinto BT-POM 1212 - Revision 5
Section 7 Electrical Wiring

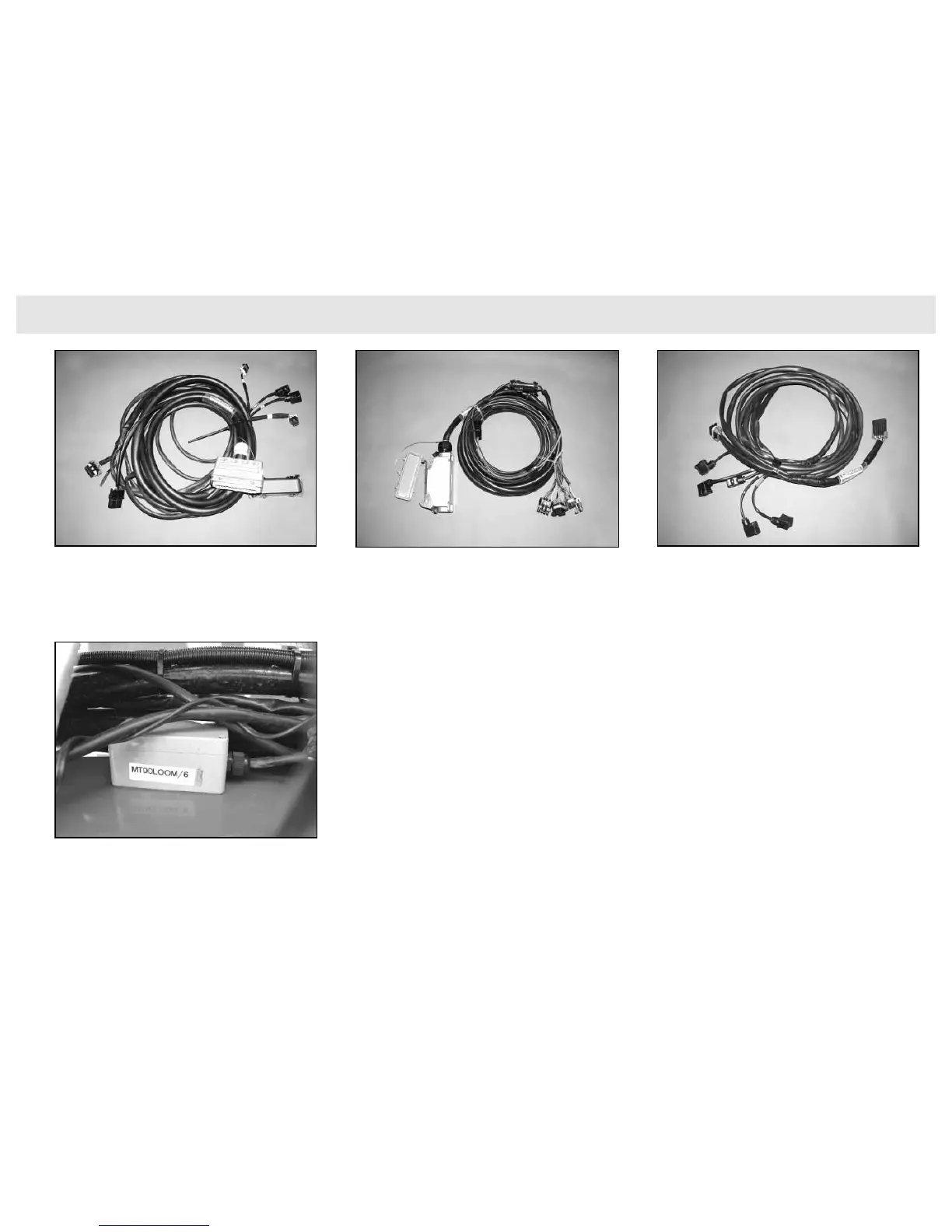

MT90LOOM/1
Main loom from rear of tractor to the sprayer, connects
to control valves, foam marker etc & connects to
MT90LOOM/2, MT90LOOM/3 & MT90LOOM/6.
MT90LOOM/2
Main loom from Spray controller to the rear of the cab.
Carries plugs to connect controller & foam marker.
Connects to MT90LOOM/1.
MT90LOOM/3
Extension loom that runs from front of sprayer,
connected to MT90LOOM/1 to boom section control
valves at rear of sprayer.
MT90LOOM/6
Relay box fi tted on front of chassis under the working
platform. Operates Dump valve from Controller.
