Pinto BT-POM 1212 - Revision 5
Section 2 Hook-up
4 Fit the Spray Controller
to the Tractor
The Pinto is fi tted standard with an electric
controller or can be fi tted with an optional
MT3405 controller.
Spray Controllers are fi tted and fully tested
at the factory but are disconnected and
packed for transit.
Spray controllers must be fi tted to the
tractor according to the instructions that
follow:
a) Fit the Standard Electric
Controller
To fi t the standard controller after transit
follow the instructions below:
1 Unpack the electric controller and
cable from the Pinto.
2 Place all switches into Off position.
3 Fit the controller console into the
tractor cab in a convenient and safe
location for the operator.
4 Connect the controller loom to the
console, and the power connection.
5 Connect the controller loom couplings
at the rear of the tractor.
6 Connect the controller power leads
to the tractor battery - connecting the
red wire to the positive terminal and
the black wire to the negative
terminal. Refer to the wiring diagram
on page ?.
7 Follow the instructions on page ?
to test, calibrate and operate the
controller.

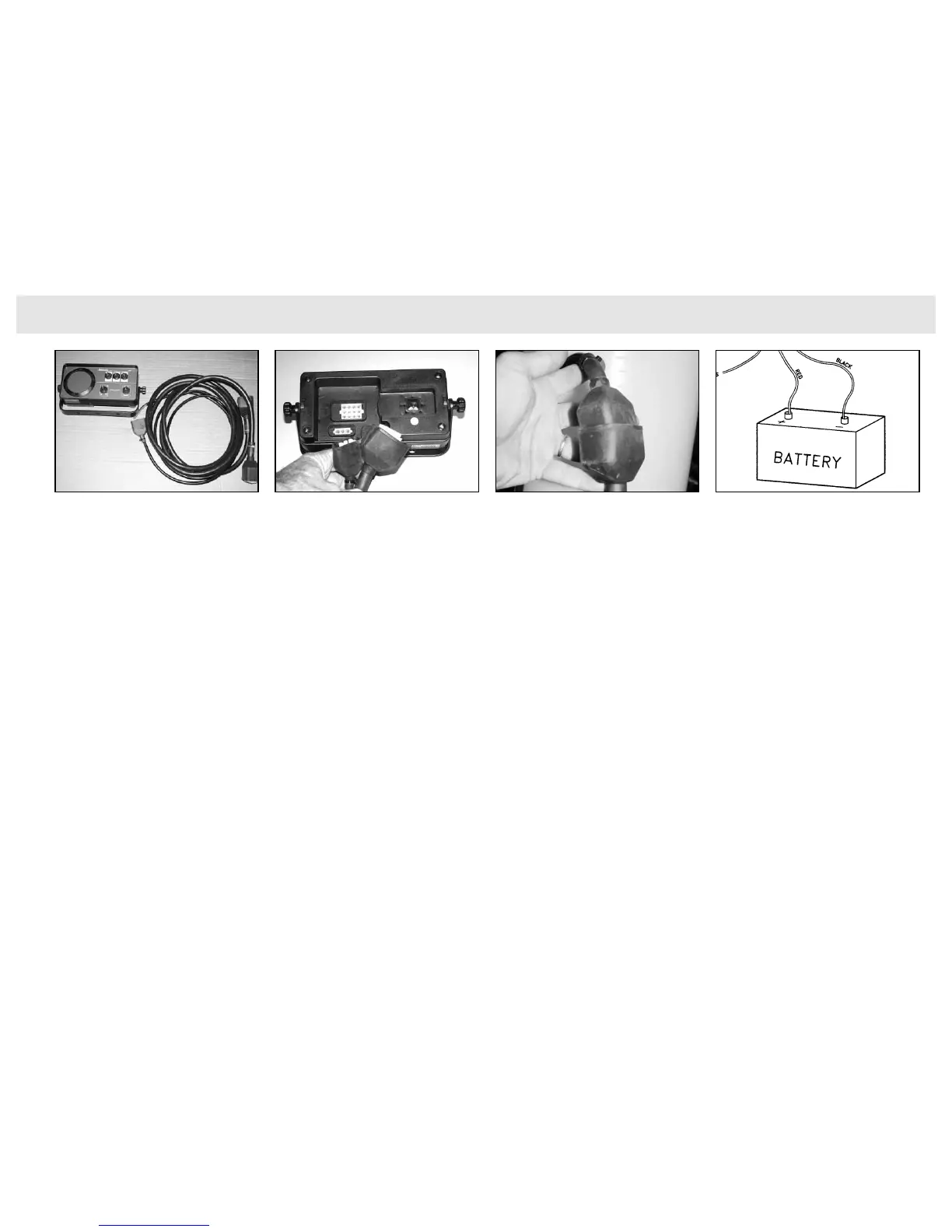

Standard Controller. Connect the leads to the rear of the console. Connect the electric power leads to the tractor batteryConnect the loom plugs.
