2.16
Pinto BT-POM 1212 - Revision 5
Pre-OperationHook-up

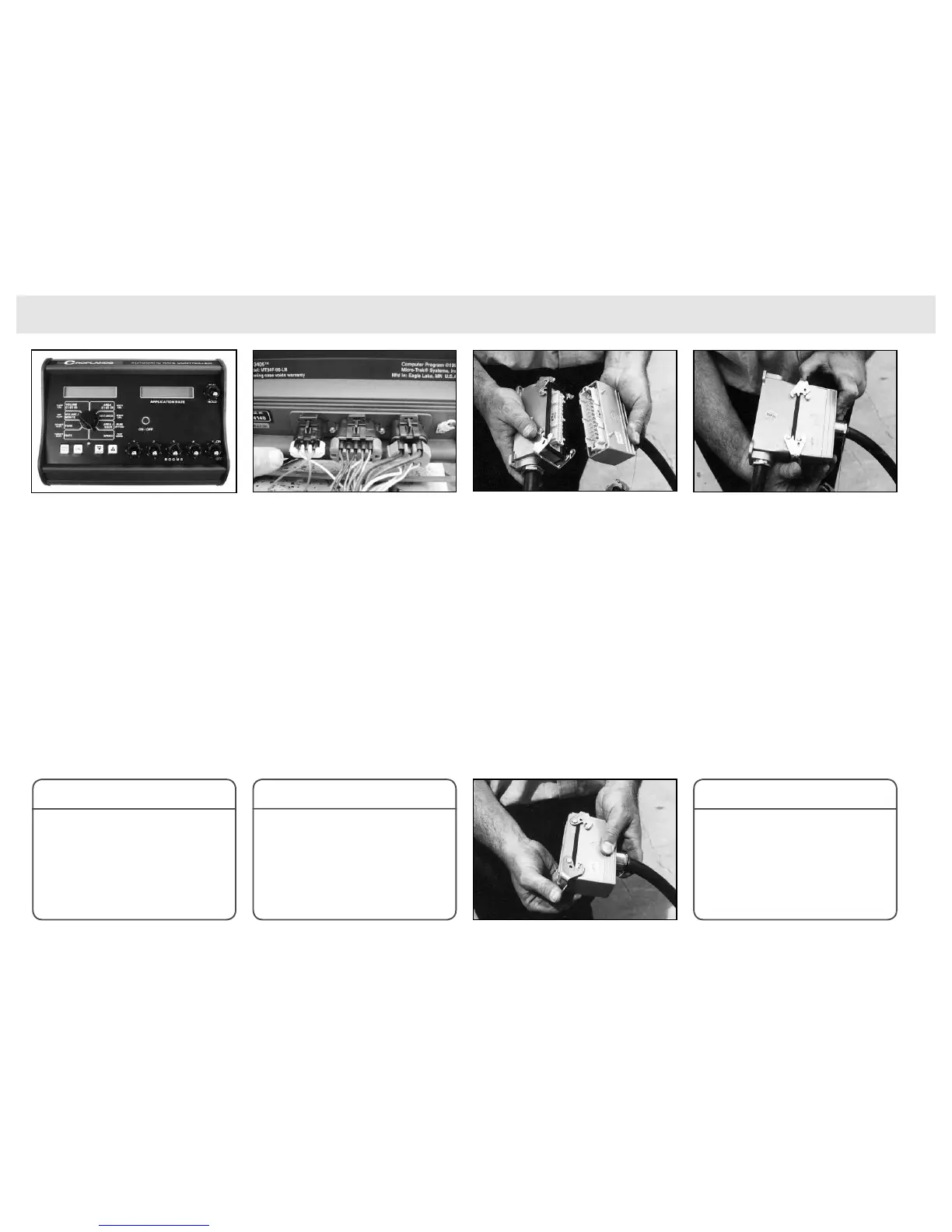

Connect the leads of the Controller to loom.
2 Connect the leads at the rear of the
Spray Controller (shown connected).
3 Fit the Spray Controller console into
the tractor cab in a convenient and
safe location for the operator.
Lock the Controller couplings together.
Ensure dust caps are fi tted to the Controller cable
couplings when disconnected.
Connect the main loom couplings.
Ensure any colour coded cable-ties on the looms
are matched.
NOTE
The loom coupler has locating holes for fi xing the
plug to the tractor which is recommended. Ask
you dealer for asssistance, if required.
Likewise, if you have an electric/hydraulic control
console for a wing-lift boom; it is recommended
the black trailer plug also be fi xed next to the
main loom connector (see page 2.14).
NOTE
4 Connect and lock together the main
loom couplings at the rear
of the tractor.
b) Fit the MT3405 Controller
(Optional)
To fi t the MT3405 Spray Controller:
1 Unpack the Spray Controller and
cables.
For operating instructions for the model of spray
controller you have been supplied, refer to the
controller manual supplied seperately.
NOTE
Optional MT3405 Controller .
