2.17
Pinto BT-POM 1212 - Revision 5
Section 2 Hook-up

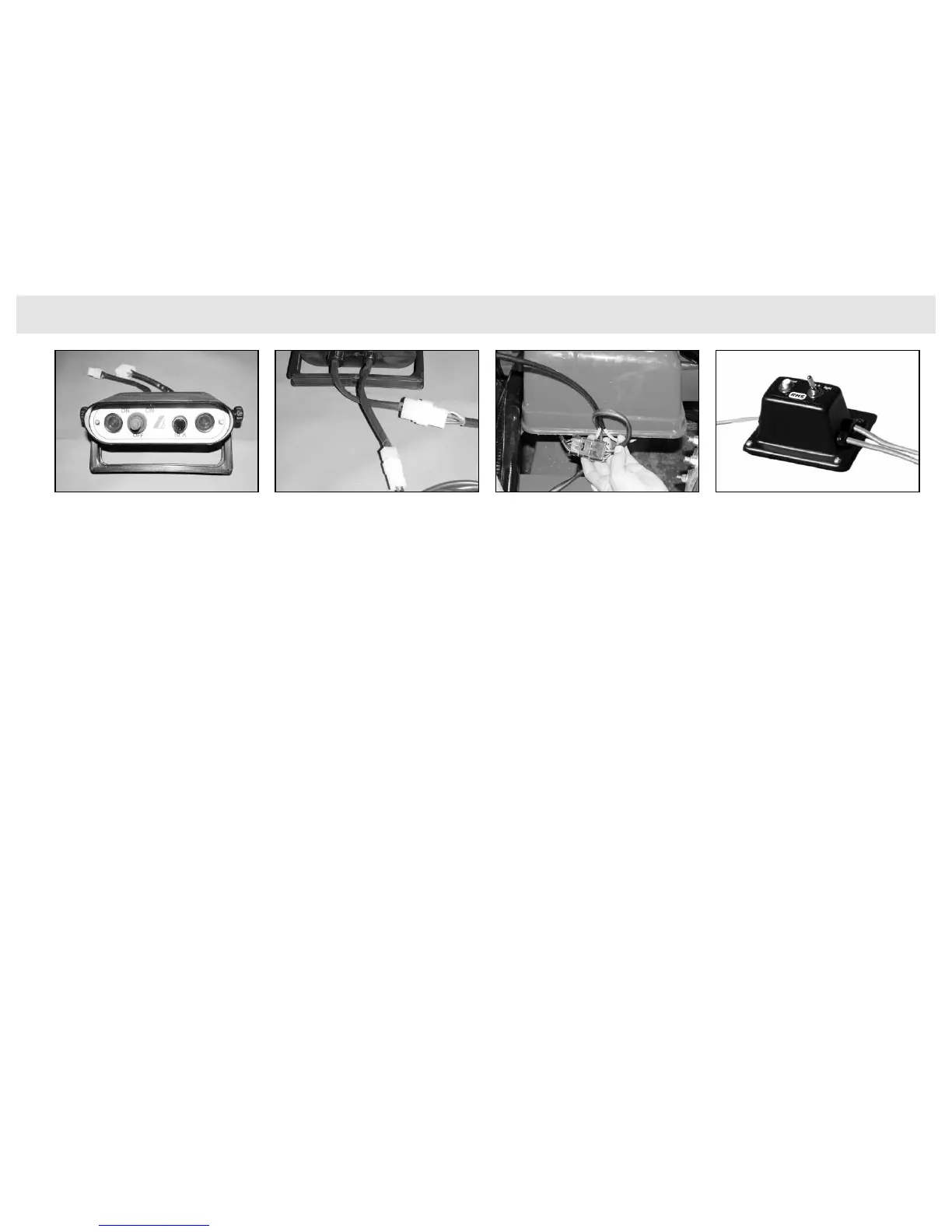

Connect the power & main looms at rear of the console. Connect the Foam Marker loom plug.
5 Fit the Foam Marker
Con trol ler (Optional)
The standard fi tted foam marker option
is the Salvarani Double-Sided Foam
Controller or an alternative RHS Double-
Sided Foam Controller option can be
fi tted.
When ordered, optional Foam Marker
Controllers are fi tted and fully tested at
the factory but are disconnected and
packed for transit.
Foam Markers must be fi tted to the tractor
according to the instructions that follow:
a) Fit the Standard Salvarani
Double-Sided Foam Controller
To fi t the Salvarani Double-Sided Foam
Controller:
1 Unpack the foam marker controller
and cable from the Pinto.
2 Install the foam marker controller in
a convenient place close to the
operator seat.
Mount the Foam Marker Controller in the cab.
3 Connect and lock the foam marker
plugs together.
b) Fit the RHS Double-Sided
Foam Controller (Optional)
To fi t the optional RHS Double -Sided
Foam Controller:
1 Unpack the foam marker controller
and cable from the Pinto.
2 Install the foam marker controller in
a convenient place close to the
operator seat.
For the RHS marker, use either the
Velcro patches provided or replace
the box screws with longer ones for a
bolted mount.
Mount the Foam Marker Controller in the cab.
