Pinto BT-POM 1212 - Revision 5

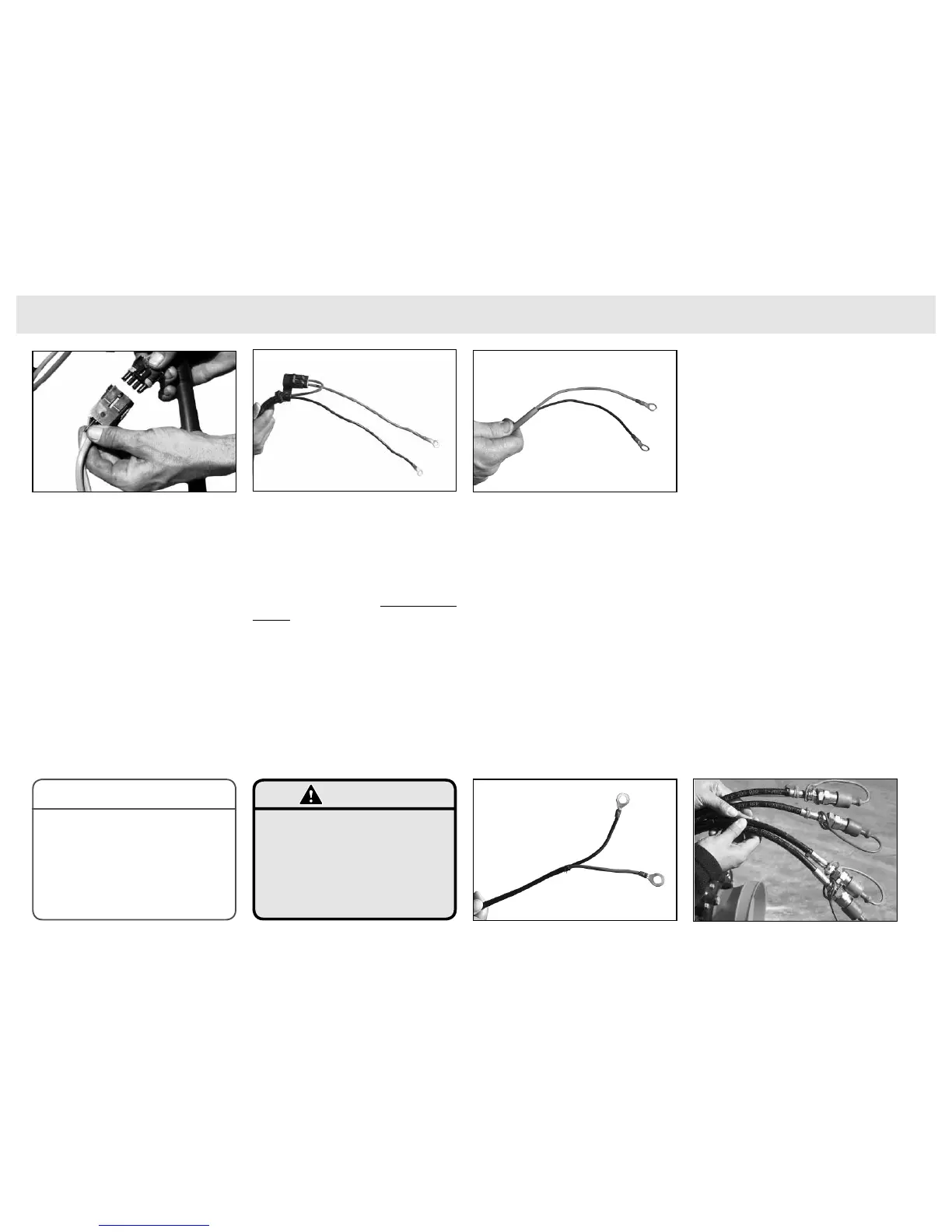

Pre-OperationHook-up
6 Connect Power Leads to
the Tractor Battery
Ensure the power leads are connected
to a good source of 12 volt power.
Connect all power leads directly to the
battery, namely the:
• Spray Controller leads
• Foam Marker Controller leads
• Electric/hydraulic control console
auxilary leads
Connect the auxillary power cables to the battery (if
fi tted).
Connect the Foam marker power cables to the battery
(if fi tted).
Connect the main harness cables to the battery.
Disconnect hydralulic hoses & PTO shaft.
Make absolutely certain that:
• Red leads are connected to the positive
terminal, and
• Black leads are connected to the negative
terminal.
Damage can occur to units if power leads are
reversed or incorrectly fi tted.
WARNING
3 Connect and lock the foam marker
plugs together.
Connect the Foam Marker leads to the loom.
If you are not attaching the power leads directly
to the battery, make certain the wires feeding your
hook-up location are at least 12 gauge.
It is not necessary to provide a circuit breaker on
the RHS marker, since the breaker is provided on
the MKR control.
See the wiring diagram on page 7.26.
NOTE
Unhitching the Pinto
from the Tractor
To disconnect the Pinto to the tractor,
follow the procedure below:
1 Locate sprayer on level ground and
chock wheels so that sprayer does
not roll when drawbar pin is removed.
2 Disconnect:
• The PTO shaft,
• The hydraulic hoses, &
• The sprayer controller looms.
3 Fold down and pin the hitch jack,
adjust the height and then remove the
drawbar pin.
