2.19
Pinto BT-POM 1212 - Revision 5
Section 2

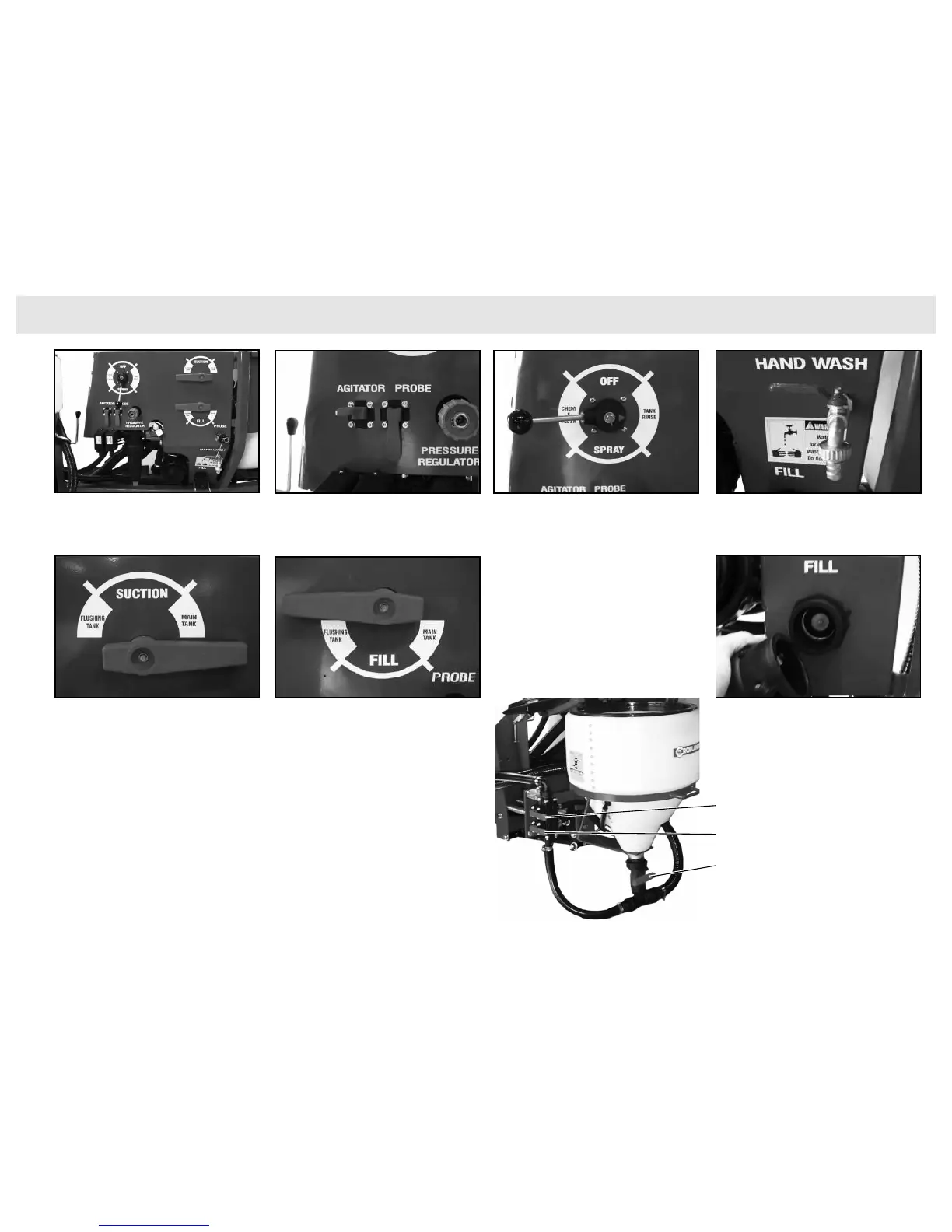

Manual Control Valves - 3000 Litre
Chem-E-Flush Nozzle Valve
Chem-E-Flush Drum Rinse Valve
Chem-E-Flush Transfer Valve
Tank Agitator & Probe Valves -
located on lower left hand side of the
manual control panel.
Function Selector Valve -
located on top left hand side of the
manual control panel -
sets the following functions:
1. Chem-E-Flush
2. Spray
3. Tank Rinse
4. Off.
Chem-E-fl ush (Option) Valves
Fresh Water/Hand Rinse Tap -
located above the Bottom Fill Inlet.
Bottom Fill Inlet -
located beside the suction fi lter.
Manual Control Panel -
located on the front left hand side of the
Pinto 3000 litre.
Suction Selector Valve -
located on top right hand side of the
manual control panel.
Fill Selector Valve -
located on lower right hand side of the
manual control panel.
