Pinto BT-POM 1212 - Revision 5
Pre-Operation
Pre-Operation Check - 3000 Litre

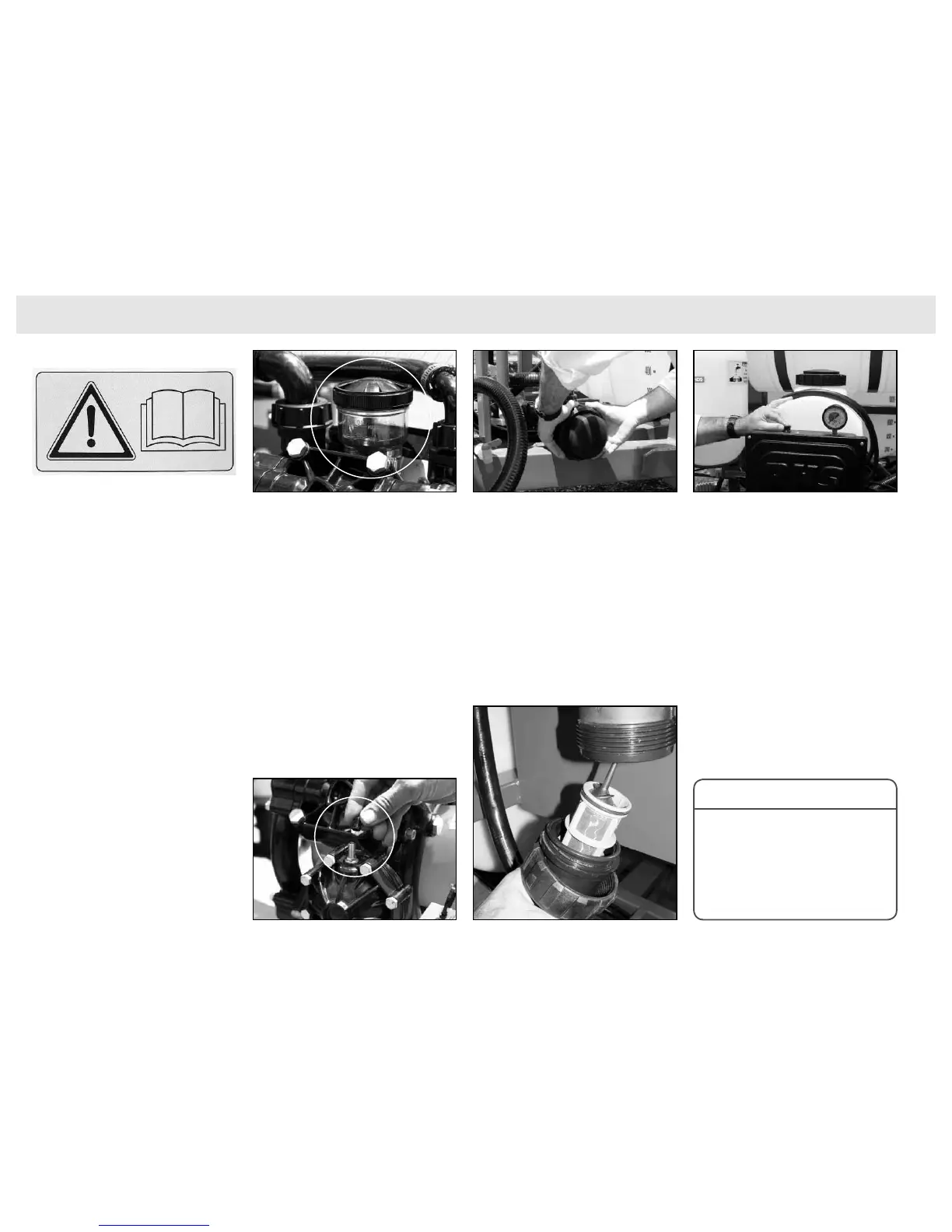

Check the foam marker operates correctly.Check the pump oil level.Read Operators’ Manuals before operating machine.
Pre-Operation Checklist
1 Before attempting to use the Pinto
3000 litre, Read Operator’s Manuals
thoroughly.
2 Read and follow instructions on
chemical manufacturers labels.
3 Always wear applicable protective
clothing.
4 Check that all maintenance
procedures have been followed.
5 Check all plumbing and fi ttings to
ensure they are tight, not damaged or
leaking.
6 Check PTO shaft or hydraulic pump
drive is correctly set up.
7 Grease the PTO shaft if necessary.
8 Check diaphragm pump oil level.
(Not applicable if fi tted with Hypro
centrifi gal pump).
9 Check air pressure in the diaphragm
pump air chamber is 70 - 100 kPa
(10-15 psi). As a general guideline
it should be 10% - 20% of operating
pressure. (Not applicable if fi tted with
Hypro centrifi gal pump)
10 Check that the suction and pressure
fi lters are clean.
Clean the suction and pressure fi lters
out after initial use, and nozzles if
necessary.
Check the suction fi lter is clean.
11 Check that the foam marker operates
correctly (Refer to foam marker
operating instructions on page 3.4).
12 Check overall spraying functions
using the:
The Standard controller -
(Refer to “Check Standard Controller
Operation” instructions page 2.21).
OR
The MT3405 Controller -
(Refer to “Check MT3405 Controller
Operation” instructions page 2.23).
IMPORTANT: Clean the suction fi lter out after
initial use.
Whilst all precautions are taken during assembly,
it is possible to get fi lings in the tank and lines.
These will accumulate in the suction fi lter during
fi rst use.
NOTE
Check the pump air chamber pressure.
Check the pressure fi lters are clean.
