2.21
Pinto BT-POM 1212 - Revision 5
Section 2 Pre-Operation Check - 3000 Litre
Check Controller
Operation
Check the functions and operation of the
Pinto controller. It may be fi tted with a
standard controller or optional MT3405
controller.
a) Check Standard Controller
Operation (if fi tted)
This electric controller provides boom
switch and pressure controls.
To operate the unit:
1 Connect Pinto to tractor (see
instructions page 2.21) connecting
the hitch, PTO and controller.
2 Fill appropriate quantity of clean
water into main tank. Always fi ll the
tank through the main lid with the
basket fi lter in place.
3
Check that the Suction Selector Valve
is set for the main tank.
4 Check the Function Selector Valve is
in "Spray" position.
5 Place sprayer controller into start up
position by ensuring the master
switch in OFF position.
6 Engage PTO and bring the PTO
(pump) speed up to 540 RPM.
All pumped liquid is now being
passed through the dump valve
back into the tank. The system is
not pressurised and tank agitators
are not working.
7 Pressurise the system and operate
the tank agitator by placing the
Master switch into ON position.
8 Adjust pressure to desired operating
pressure by fi rst closing the electrical
regulating valve (servo) using the
pressure up/down switch on the
console, and then by adjusting the
manual Pressure Regulator valve to
maximum working pressure.
Maximum working pressure should
not exceed 8 bar.
9 Check that the Agitator Valve is open.
10 Check that the tank agitator is
working.
Important: Do not have pesticides in the spray
tank when checking the sprayer.
WARNING

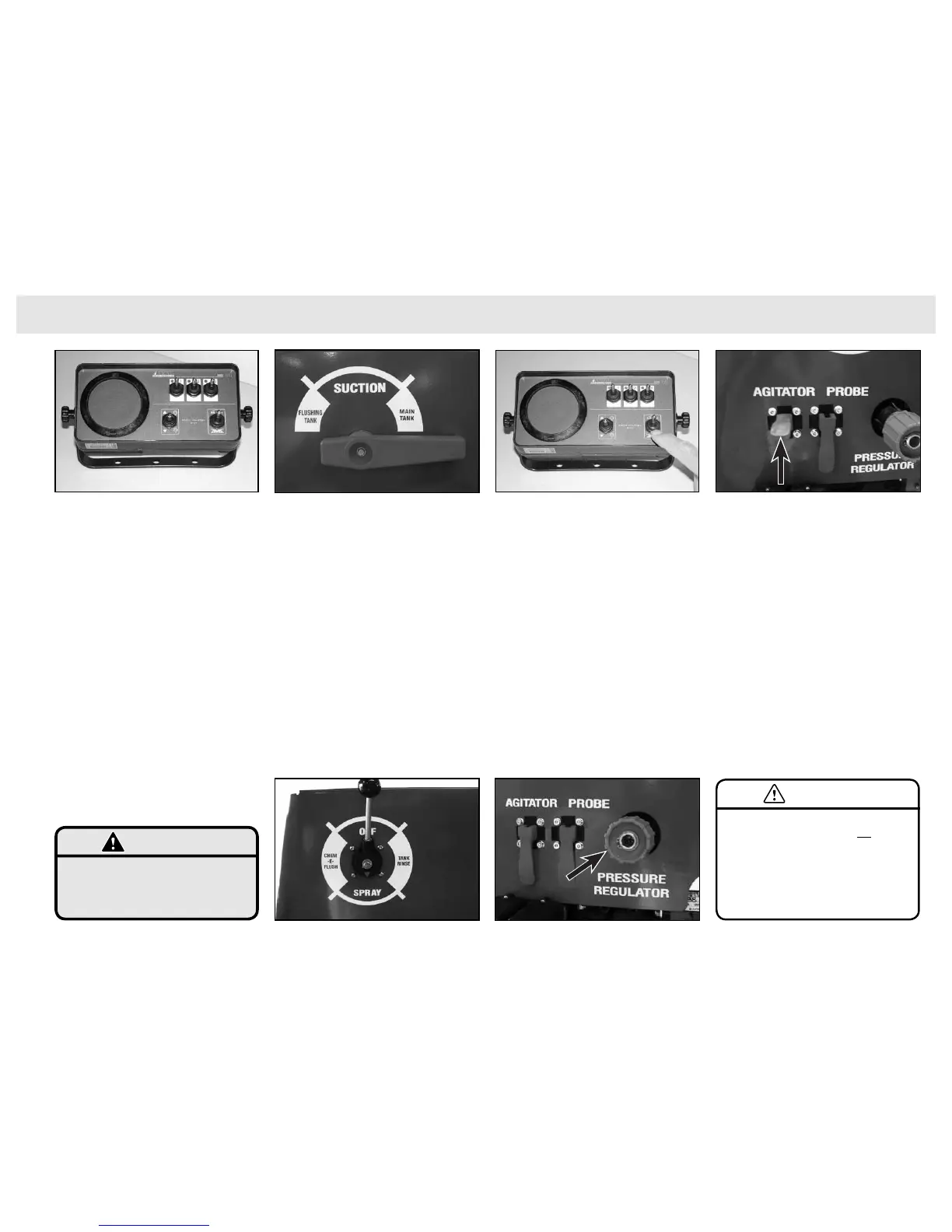

Standard Controller (3) Suction Selector Valve set for the main tank. (7) Pressurise the sytem by placing the Master switch
in ON position.
(9) Check the Agitator Valve is open & agitator
operating.
(8) Adjust the Pressure Regulator valve.
Maximum working pressure with the electric
regulating valve closed should not exceed 8
bar.
CAUTION
(4) Check the Function Selector Valve is in Spray position.
To Next Page
