PARTS AND ASSEMBLY PROCEDURE
Owner’s Manual and Service Guide
63

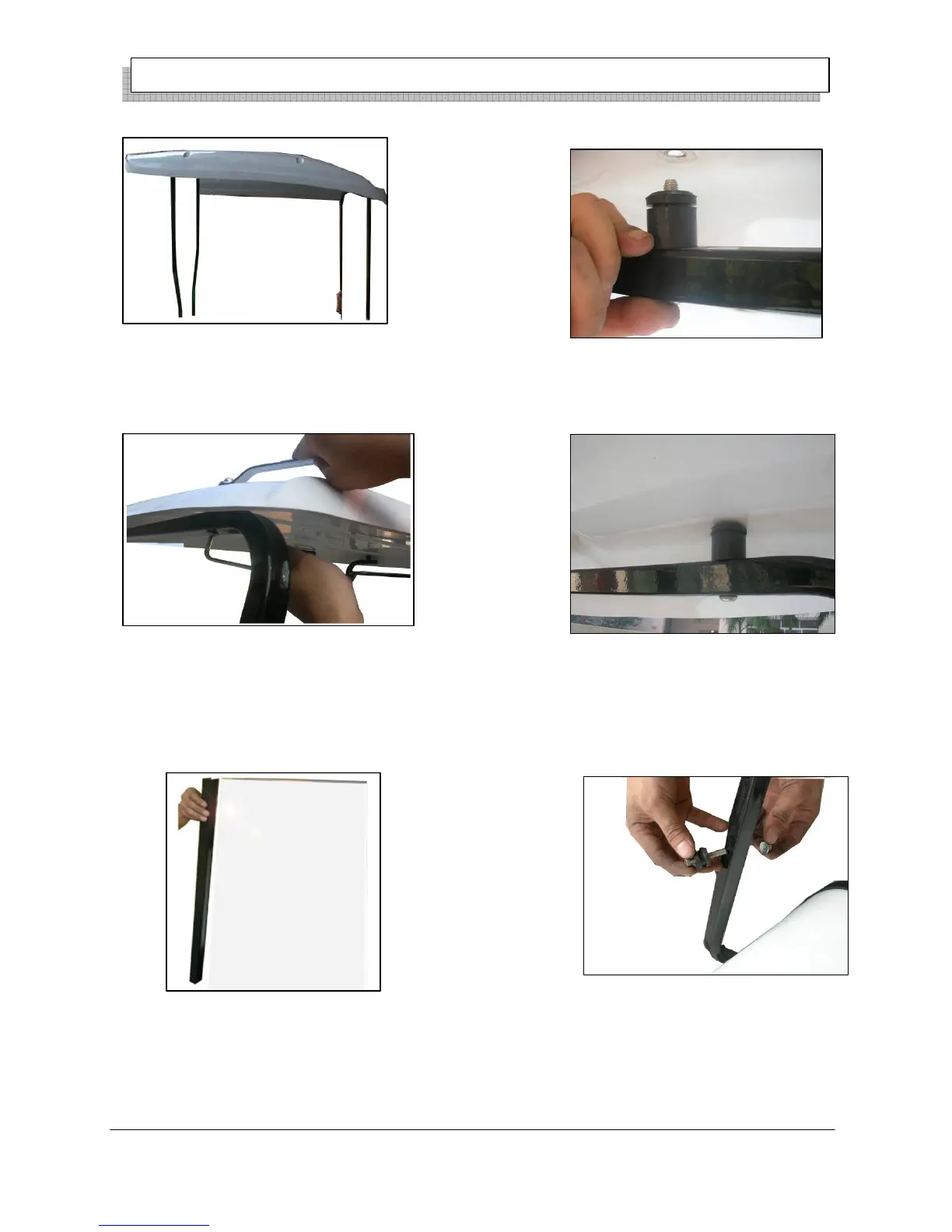

4. Assemble the sun top as per following methods.
5. Assemble windshield as per following instructions.
Inset the screw and rubber cushion
into the front strut (Fig9)
Put the sun top on the front and rear
supporting strut (Fig.8)
Lock the bolt with wrench ( Fig.10)
After whole assembling (Fig.11)
Insert the windshield into
sash .(Fig 12)
Insert the limiting location bar into
the front supporting strut (Fig 13)
To Next Page
