page 17
CE2000TX Power Amplifier
Operation Manual
SST-SBSC-3632T
This is a custom three-channel crossover net-
work with CD-horn equalization and summed
low-frequency output specifically designed for
use with JBL
®
model 3632T ScreenArray
®
cinema speaker systems installed in cinemas,
studio production and post-production envi-
ronments.
Features:
• High-frequency signals are internally
routed to the channel-one amplifier input,
and mid-frequency signals are routed to
the channel-two amplifier input.
• Mono summing of low-frequency signals
are routed from Output B to an external
amplifier.
•Neutrik
®
Combo jacks for balanced input
connection.
• Removable barrier block connectors for
balanced output to other
components.
SST-SBSC 4632T
Like the SST-SBSC 3632T but for the JBL
4632T cinema speakers.
SST-4622
See Figure 5.1. This is a custom two-channel
crossover network with equallization specifi-
cally designed for use with JBL
®
model 4622
ScreenArray
®
cinema speaker systems
installed in cinemas, studio production and
post-production environments.
Features include:
• Low-frequency signals are internally
routed to the channel-one amplifier input,
and high-frequency signals are routed to
the channel-two amplifier input.
• Barrier block connectors for balanced sig-
nal input.
SST-3632
Like the SST-4622 but for the JBL 3632 cinema
speaker systems.
Additional features include:
• Time correction via an all-pass analog
delay ensures coherent summation
through the crossover region, while main-
taining optimal vertical polar response.
SST-4632
Like the SST-36-32 but for the JBL 4632 cin-
ema speaker systems.

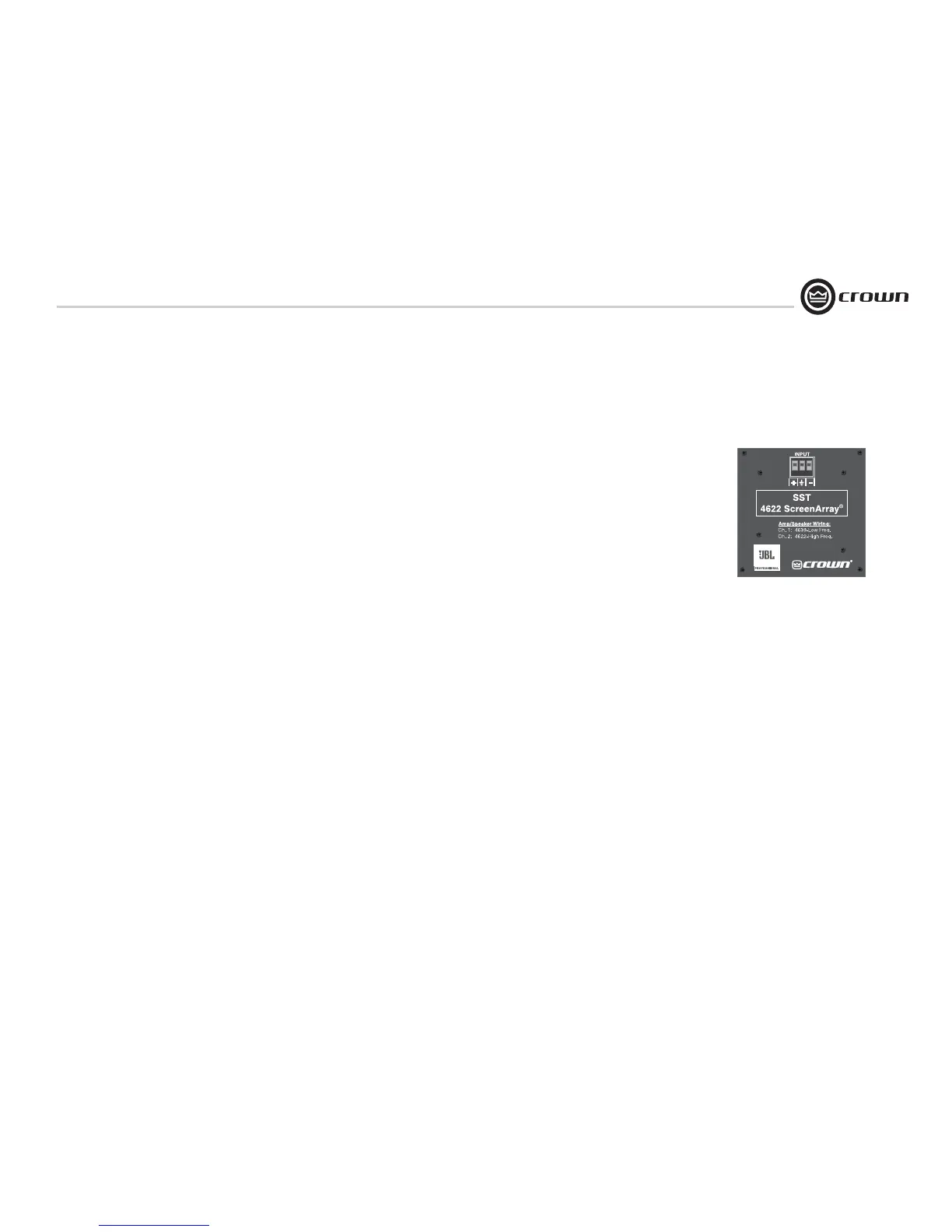

Figure 5.1
SST-4622 Crossover Network
5 Advanced Features
and Options
