Macro-Tech MA-3600VZ Power Amplifier
Operation Manual
4.3 Back Panel Controls
and Connectors
G. Power Cord
H. Stereo/Mono Switch
Allows selection of Stereo, Bridge-Mono,
or Parallel-Mono operation.
I. Reset Button
One per channel. Resets the power supply
breakers.
J. PIP Module
Standard module (PIP-FX) provides a 3-
pin female XLR connector for signal input
to each channel.
Input Sensitivity Switch
Located behind the PIP module is the Input
Sensitivity switch. See Section 5.3.3 for
details.
K. TRS Input Jack
One per channel; female TRS input jacks
are provided.
L. Ground Lift Switch
When lifted, inserts an impedance between
the sleeve of each TRS jack and the circuit
ground to prevent ground loops. Switch
has no effect on the input connectors on
PIP modules. See Section 5.3.4 for details.
M. XLR Inputs (Standard PIP Module)
One per channel, female XLR input con-
nectors are provided.
N. 5-Way Binding Post Output Jacks
One pair per channel; accepts banana
plugs, spade lugs or bare wire. Note: Bind-
ing post outputs on European models
come with safety plugs installed to prevent
European power-cord plugs from being
inserted. The side entry positions for these
connectors should therefore be used.
4 Operation

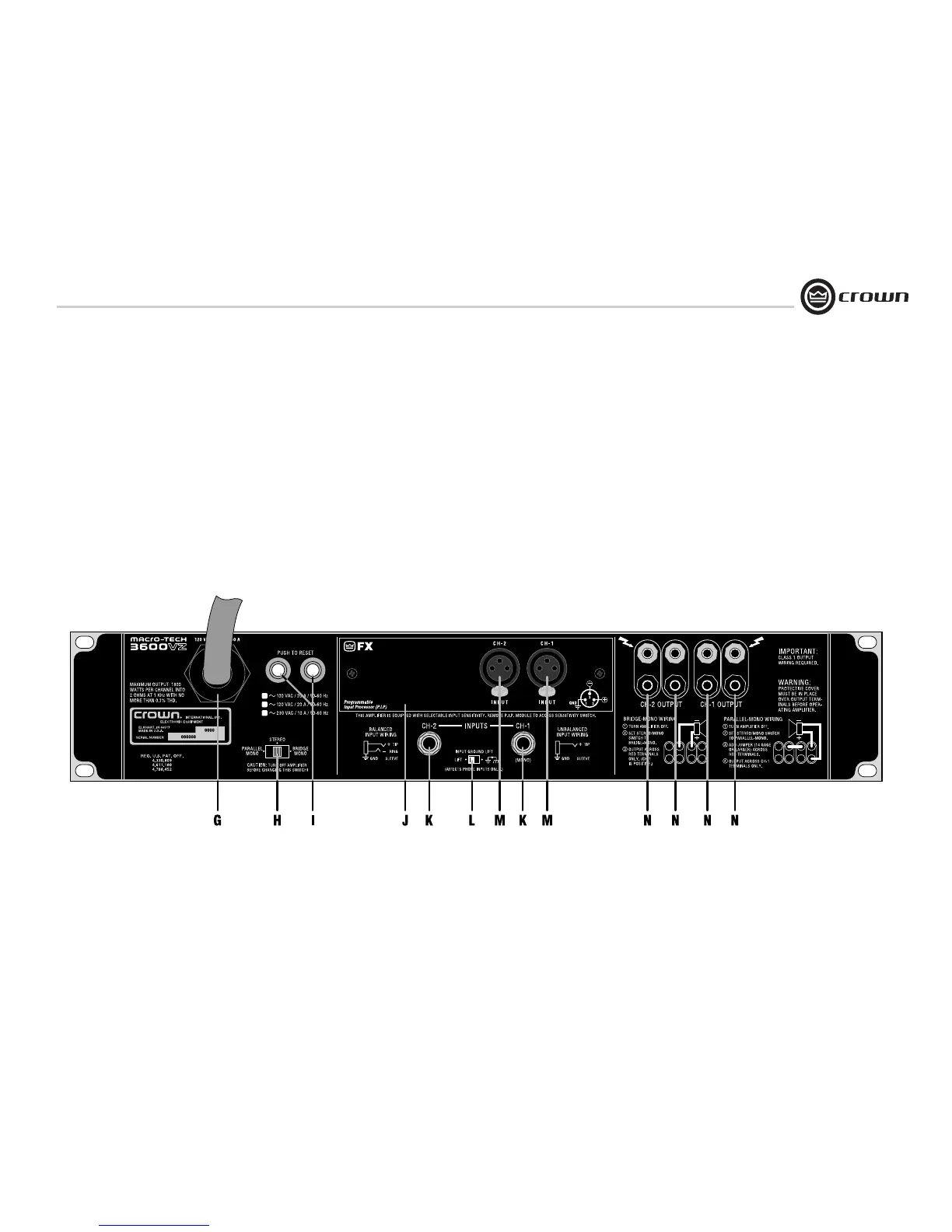

Figure 4.2 Back Panel
Controls and Connectors
