Xs Series Power Amplifiers
Operation Manual
3 Operation
3.3 Back Panel Controls and
Connectors (2-Channel Models)
A. 4-Pole Speakon Output Connector
One connector is used per channel. It accepts a
4-pole Speakon connector. See Figure 2.5 and
Table 1 for connector wiring.
B. Normal/Bridge Switch
Two-position switch selects between normal
(stereo) operation and Bridge-Mono operation.
C. Circuit Breaker
Provides overload protection.
D. XLR-1/4" Combo Input Connectors
One per channel, XLR-1/4" combo connector
includes 3-pin female XLR connector and
TRS 1/4" phone jack. Accepts balanced or
unbalanced signals.
E. 5-Way Binding Post Output
Connectors
One pair per channel; accept banana plugs,
spade lugs or bare wire.
Note: Binding post out-
puts on European models come with safety plugs
installed to prevent European power-cord plugs from
being inserted. The top & bottom entry positions for
these connectors should therefore be used with Euro-
pean models
.

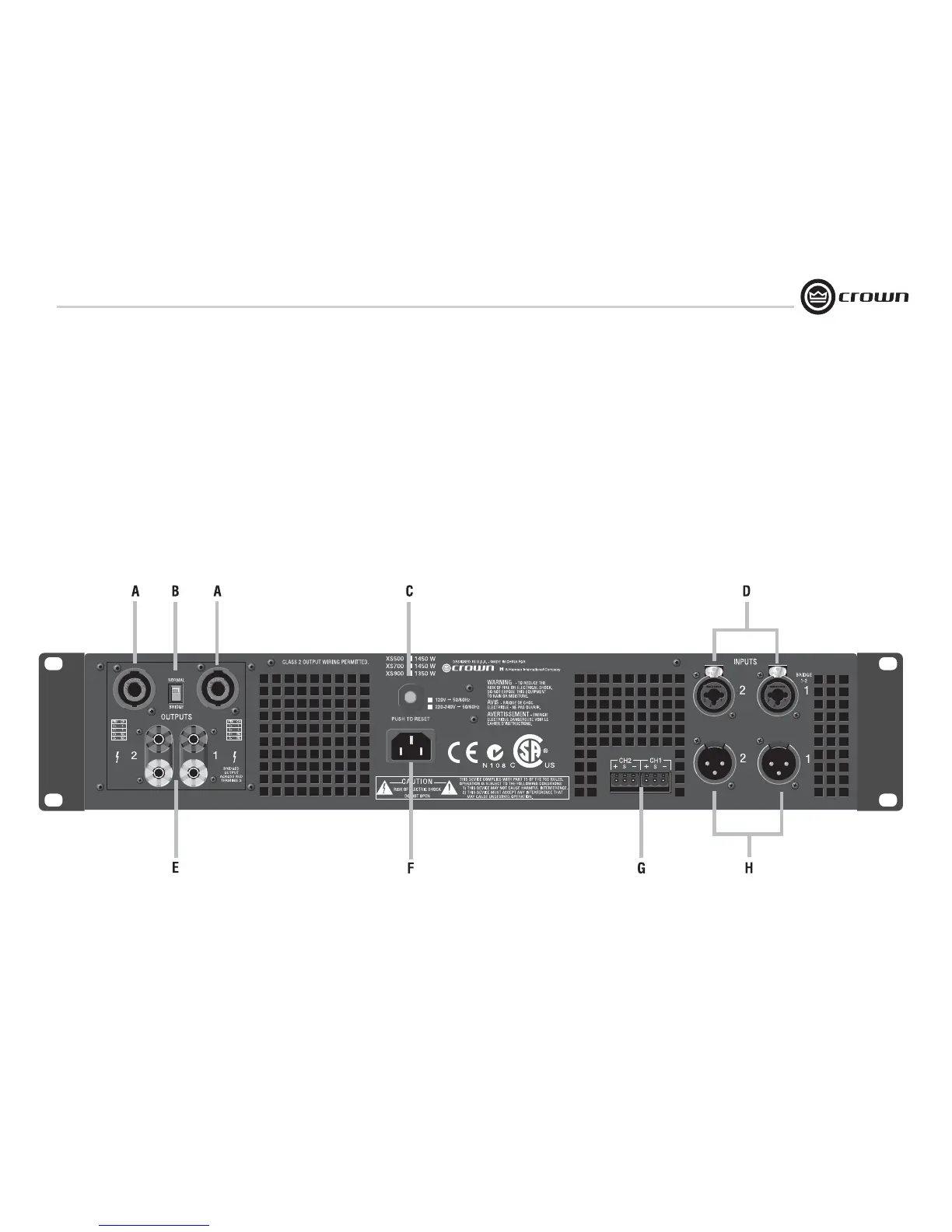

Figure 3.2 Back Panel Controls and Connectors
(2-Channel Models)
F. IEC Power Inlet
G. Phoenix-Style Input Connectors
One per channel, 3-pin Phoenix-style connec-
tor accepts balanced or unbalanced signals.
H. XLR Output Connectors
One per channel, 3-pin male XLR connector in
parallel with XLR-1/4" combo and Phoenix-
style input connectors for daisy-chain opera-
tion.
