ENGLISH
9. ELECTRICAL CONNECTION
All machines are equipped with power cables, for which, in case of the need for replacing, an authorized
technician must be used.
Before connecting to the power supply, check that:
• the electric plant has been fitted with a 6A magneto thermal switch
• The characteristics of the plant are sufficient enough to satisfy what is indicated on the machine
characteristic plaque (electric power, nominal voltage etc...)
• The plant has a sufficient earth connection according to nominal regulations in vigour (earth connection is
obligatory by law)
• The power cable should never, at any point, overheat 50°C above room temperature: If a direct connection
is desired, it is necessary to use an omni polar switch, with a minimum opening between contacts of 3mm,
that has been designed for the electrical charge indicated on the plaque and must correspond to regulations
in vigour. the earth wire, brown/green, should not be interrupted by the switch! The plug or omni polar switch
should be easily accessible once the machine has been installed.
In case of a prolonged disuse of the machine, disconnect the power supply.
The manufacturer declines any responsibility if what stated above or in actual anti-injury laws are
not respected.

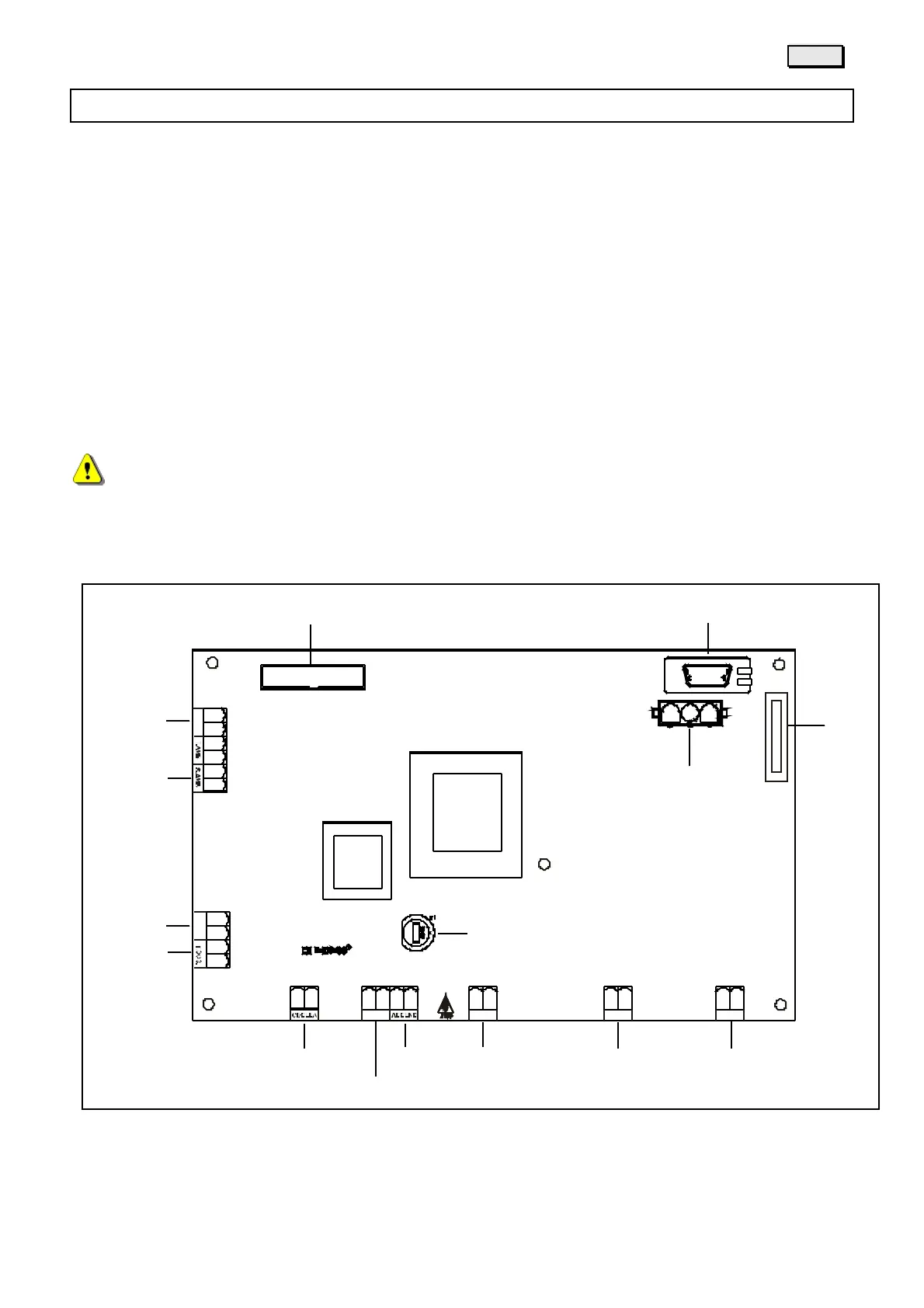

INTERNAL ELECTRICAL PLAN
DISPLAY
+FUMI-
T. CALD.
V. AMB.
POWER SUPPLY
230V - 50Hz~
ELECTRICAL
RESISTORS
GAS SAFETY
THERMOSTAT
AUGER SAFETY
THERMOSTAT
PELLET LOADING
AUGER MOTOR
AIR PRESSURE
SWITCH
FUSE
4 A
PROG RAM MING
PORT
FUM ES FAN
ENCO DER
CL OCK
BATTERY
FLUE GAS
MOTOR
HEAT ING FAN
MOTOR
GAS
PROBE
ROOM
PROBE
