CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER
USER'S MANUAL, VERSION 9
Copyright 2017 © Convergence Systems Limited, All Rights Reserved
17
Below is the left side view of the CS108 reader. There are 5 LEDs on this side, from left to
right, respectively:
1) RFID Power On
2) Status
3) Barcode Power On
4) Charging
5) External Power connected
On the sled handle, there is a trigger used by the operator to start and stop the reading of RFID
tags or barcodes.

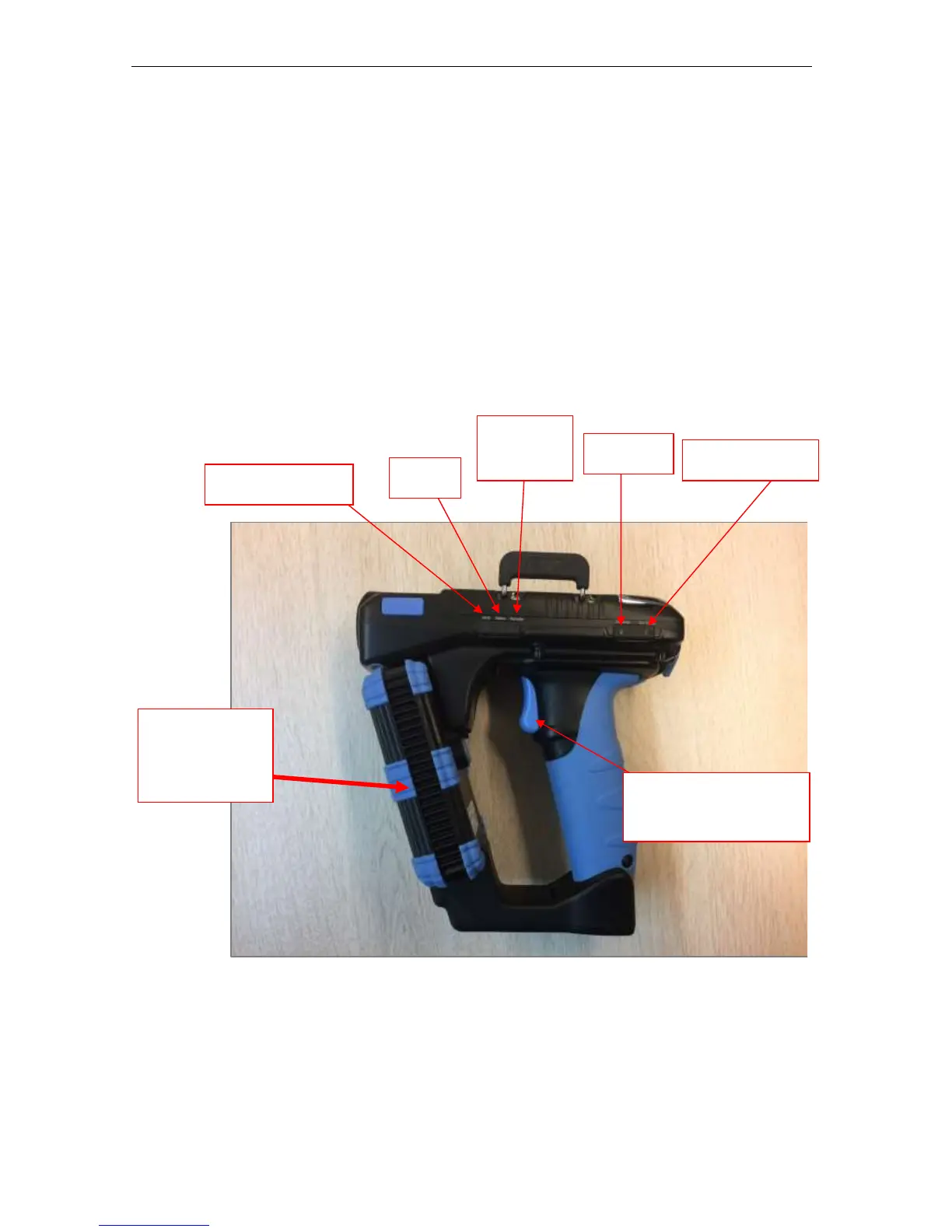

Figure 4-2 CS108 Reader Left Side View
RFID Reader
and Antenna in
this box
RFID Power On
Status
Barcode
Power On
Charging
External Power
Trigger Button to Read
RFID tag or Barcode
