Installation II
The FRM220-CH02/NMC, a two blade chassis, can be installed with
one single
width blade line card
into the chassis. All types of FRM220 series one module
line card can be installed in FRM220-CH02/NMC chassis, which included 10G
3R Transponder, 2.7G 3R Transponder, E1/5E1/8E1 Inverse multiplexer,
Ethernet over ber, E1/T1, 35/X21/RS530 ber modem, POTS over ber, and
RS485/422/232 ber converter. The FRM220-CH02/NMC slide-in chassis may be
applied in point to point applications or may be linked to a centrally located
FRM220 CH20 rack.
Installation II
FRM220-CH02/NMC standalone chassis have the option of adding wall mount
capability. Two
wall mount kits
are required for installing a single
standalone chassis on the wall. Each wall mount kit provides all the necessary
hardware for a complete installation.
Installation I
The FRM220-CH02/NMC, a two blade chassis, can be installed with one
double
width blade line card
into the chassis. All types of FRM220 series two modules
line card can be installed in FRM220-CH02/NMC chassis, which included
16E1/ET100 E1Inverse Multiplexer or FOM04 4ch E1/T1 Fiber Optical Multiplexer.
The FRM220-CH02/NMC slide-in chassis may be applied in point to point
applications or may be linked to a centrally located FRM220 CH20 rack.
LED Indicators
1-module Line Card
■
LED Indications :
PWR 1 : LED on/of f Power 1 is on / Power 1 is of f
PWR 2 : LED on/of f Power 2 is on / Power 2 is of f
NMC card for Web, Telnet,
SNMP Standalone management
NMC Card
NIC
2-module Line Card
sales@ctcu.com www.ctcu.com
V.: 1.1

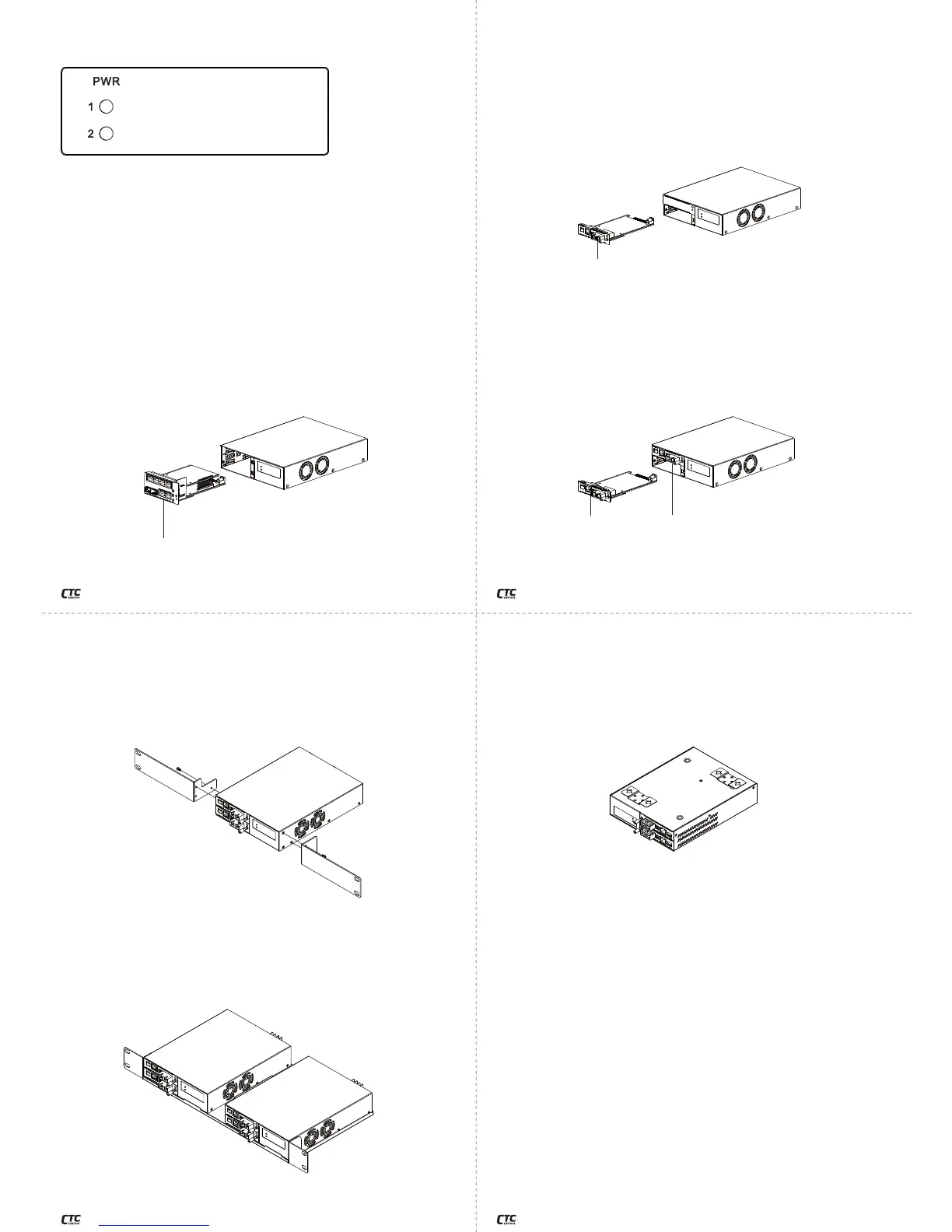

Rack Mounting Option I
FRM220-CH02/NMC standalone chassis have the option of adding standard
EIA 19" rack mount capability.
The rack mount ear
provides for mounting a
single standalone chassis in a rack. Each rack mount ear kit provides all the
necessary hardware for a complete installation
Rack Mounting Option II
FRM220-CH02/NMC standalone chassis have the option of adding standard
EIA 19" rack mount capability.
The rack mount tray
provide for mounting
two standalone chassis in a rack. Each rack mount tray kit provides all the
necessary hardware for a complete installation.
Wall Mounting Option
FRM220-CH02/NMC standalone chassis have the option of adding wall
mount capability. Two
wall mount kits
are required for installing a single
standalone chassis on the wall. Each wall mount kit provides all the necessary
hardware for a complete installation.
Figure #3. Rack Mount Ear. Figure #5. Wall Mount Kit Installation, CH02/NMC
Figure #4. Rack Mount Tray.
•
