CTEK MXS 7.0 Manual

EN
BATTERY SIZE (Ah)
TIME TO 80% CHARGED
20Ah
2h
50Ah
6h
100Ah
12h
150Ah
17h
READY TO USE
The table shows the estimated time for empty battery to 80% charge

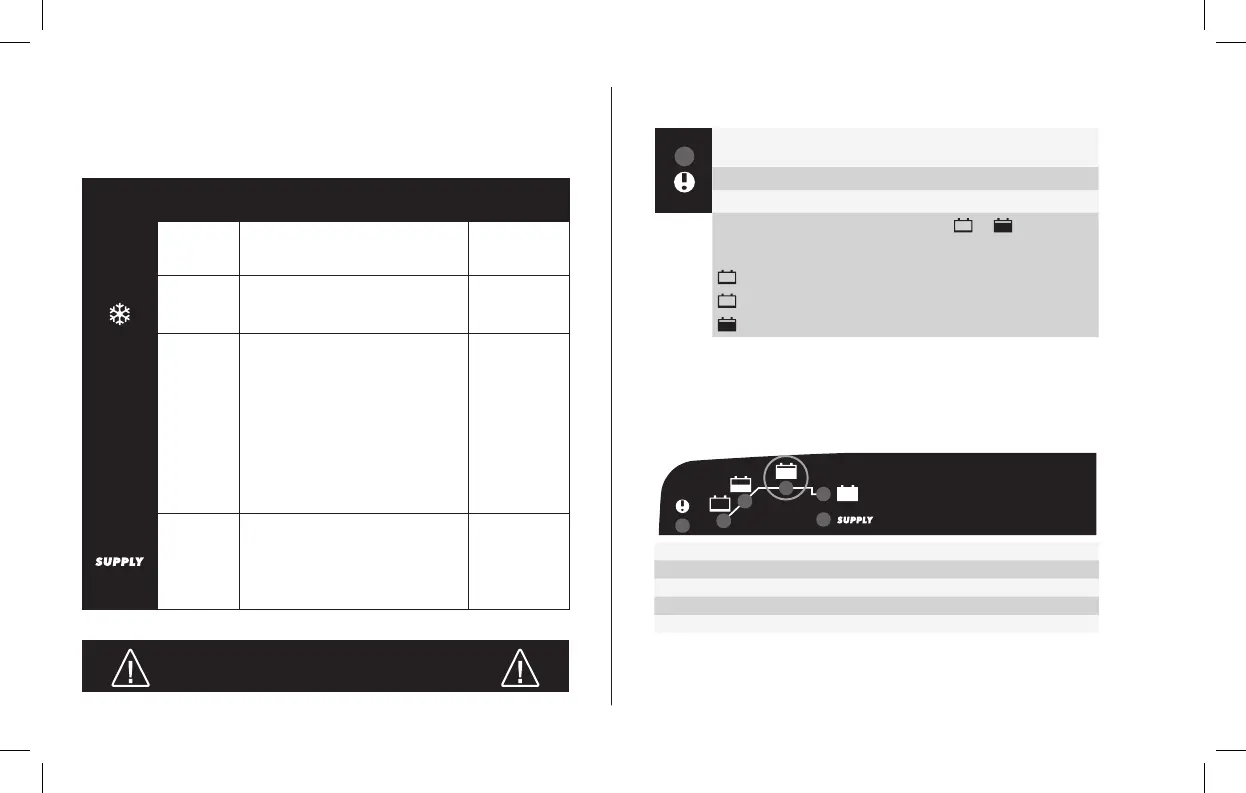

CHARGING PROGRAMS
Settings are made by pressing the MODE-button. After about two seconds the charger
activates the selected program. The selected program will be restarted next time the
charger is connected.
The table explains the different Charging Programs:
Program
Battery
Size (Ah)
Explanation Temp range
NORMAL
14–225Ah
Normal battery program 14.4V/7A.
Use for WET batteries,
Ca/Ca, MF and for most GEL batteries
+5°C–+50°C
(41ºF–122ºF)
AGM
14–225Ah
AGM battery program 14.7V/7A
Use for AGM batteries.
-20°C–+5°C
(-4ºF–41ºF)
RECOND
14–225Ah
Recond program 15.8V/1.5A
Use to return energy to the empty WET
and Ca/Ca batteries. Recond your battery
once per year and after deep dischare
to maximise lifetime and capacity. The
Recond program adds the Recond step
to the normal battery program.
Frequent use of the Recond program
may cause water loss in the batteries and
reduce service life of electronics. Contact
your vehicle and battery supplier for
advice.
-20°C–+50°C
(-4ºF–122ºF)
14–225Ah
Supply program 13.6V/7A
Use as 12V power supply or use for
float maintenance charging when 100%
capacity of the battery is required. Supply
program activates Float step without time
or voltage limitation.
-20°C–+50°C
(-4ºF–122ºF)
ERROR LAMP
If the error lamp is lit, check the following:
1. Is the chargers positive lead connected to the batterys
positive pole?
2. Is the charger connected to a 12V battery?
3. The clamps are short circuited?
4. Has charging been interrupted in
or ?
Restart the charger by pressing the MODE-button. If charging is still
being interrupted, the battery...
...is seriosly sulphated and may need to be replaced.
...can not accept charge and may need to be replaced.
...can not keep charge and may need to be replaced.
WARNING!
The spark protection on the battery charger
is disabled during SUPPLY program.
20016109A MXS 7.0, Manual EAST 8, print file 002.indd 4 2011-02-09 10:05:39

CTEK MXS 7.0 Specifications

General

Input voltage	220-240 V
Input frequency	50/60 Hz
Battery voltage	2 V
Cable color	Black, Red
Operating temperature (T-T)	-20 - 50 °C
Number of batteries supported	-
Product color	Black, Silver

Weight and Dimensions

Depth	191 mm
Width	89 mm
Height	48 mm
Weight	800 g
