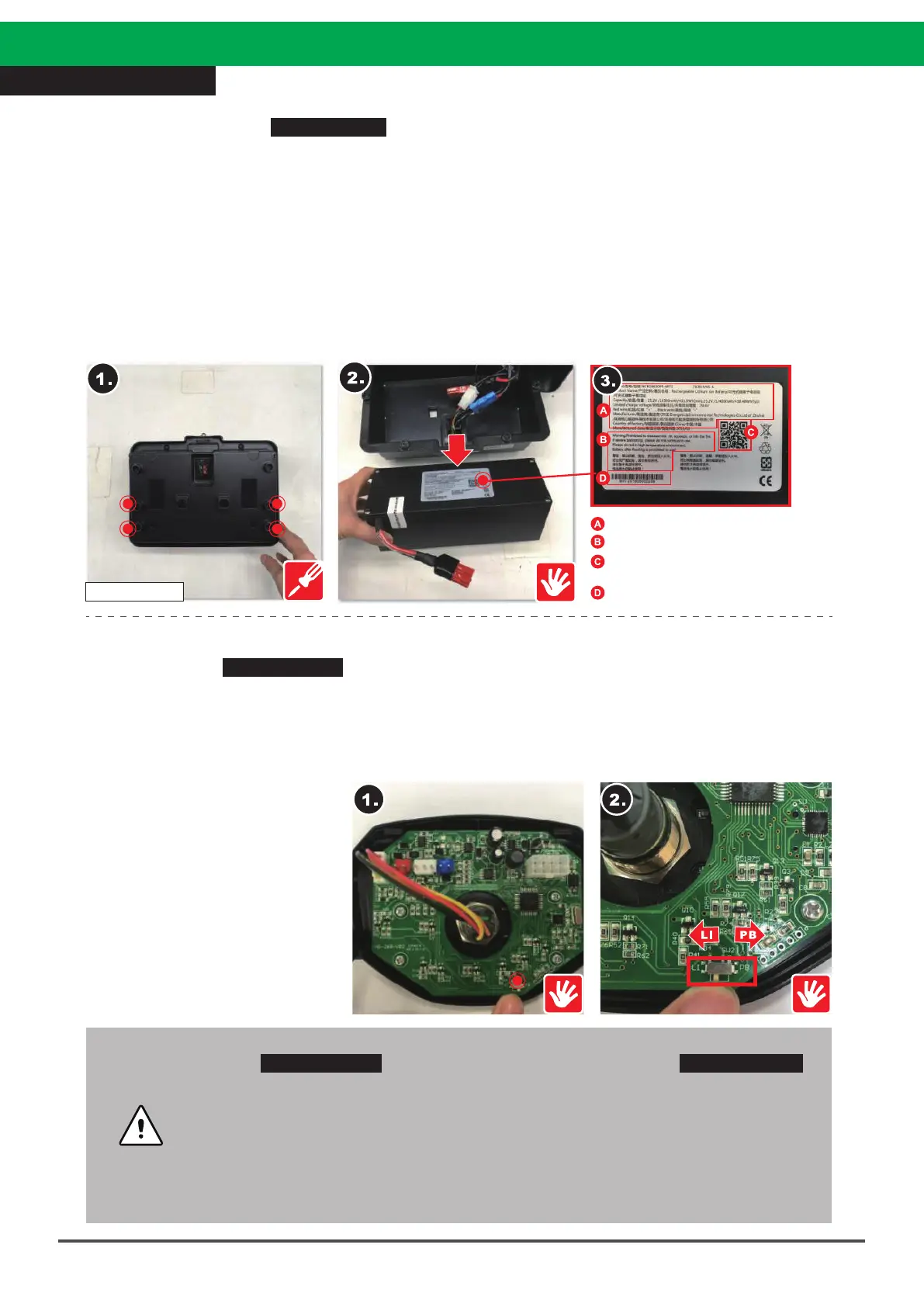

Battery Pack-Battery Removal
Please carry out the SERVICE-6 Battery Pack Repair steps then :
1.Turn the battery pack over gently and remove the screws to open the battery pack.
2.Take the lithium battery out.
3.The sticker on the lithium battery has a serial number and all the relevant information about
the pack, this including the battery specifications, warnings, date of manufacture, etc.
※For re-installation, reverse the sequence of these steps.
※To re-install a different type of battery (lithium battery/lead-acid battery), please refer
to the following battery setting instructions.
※A lead-acid battery is heavy and does not need to be secured with screws. Place it directly
into the pack and make the connections.
Battery Setting Instructions :
Please refer to SERVICE-1 Steering Cover Repair steps then :
1.Find the small battery type selection switch on the lower part of the top control board.
2.Move it to LI (left): Lithium battery, or PB (right): Lead-acid battery.
3.This switch resets the parameters to suit the type of battery. Make sure to push the switch
completely to the end (either left or right). If this is not done properly, system determination
may fail.
※The Lead-acid / Lithium
battery parameter setting
can only be done on the
automatic version.
•After a change of battery type, be sure to change the steering head charger
socket SERVICE-1-6 and the battery pack charger socket SERVICE-6-1 .
Do not attempt to modify the charger socket or charger cable connector,
this can be very dangerous and have severe consequences.
•If the selection switch is not set for the correct type of battery after a change
of type, the scooter will run, but the battery level display on the panel will
not show the correct state of the battery.
•Do not attempt to modify the charger socket or charger cable connector,
this can be very dangerous and have severe consequences.
Lithium battery relevant specification.
Lithium battery warnings.
QR Code: Use such code to obtain
information related to the lithium battery.
Lithium battery serial number barcode.
