SERVICE - 6 - 1
Battery Pack-Charger Socket Repair :
•During the replacement of the battery pack, please remove the battery
and prevent operation on the scooter directly to facilitate the replacement.
•When turning the battery pack over, do not drop it, or put it down hard on
the table. Place it down gently and avoid damage. Damage to a lithium
battery may cause a serious accident.
•Step 6. After removing the battery main cable connector, remember that
the battery end is still electrically connected, put it down carefully and
make sure there is no chance of a short circuit.
•Do not attempt to modify or repair the lithium battery inside the battery pack,
this can be very dangerous, and represents a severe hazard.
Please refer to SERVICE-6 Battery Pack Repair steps and then :
※Find the charger socket connector inside the battery pack (Figure 1 below).
※Reconnect the battery pack charger socket connector.
※If this does not restore function, refer to the following “Replacement Instructions”.
Replacement Instructions :
After completing the SERVICE-6 Battery Pack Repair steps :

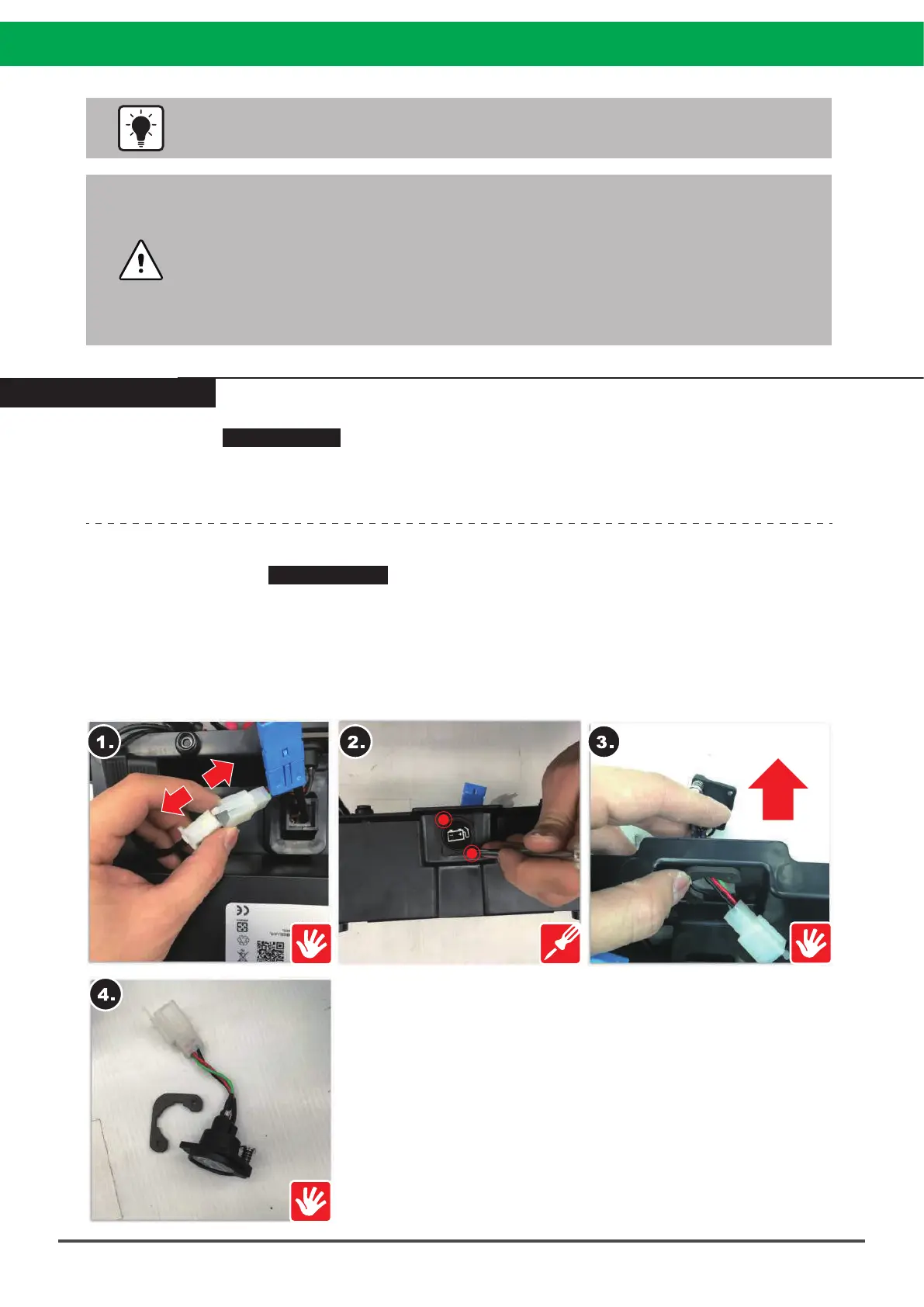

1.Remove the battery pack charger socket.
2.Remove the battery pack outer cover and the charger socket screws.
3.Remove the battery pack charger socket, and remove the inside metal sheet at the same time.
4.Take out the battery pack charger socket, and replace it with a new one.
※After the replacement of parts or re-installation, please follow the exact reverse sequence
for reassembly.
