•The headlight is not a separate unit and cannot be replaced alone. It is
necessary to replace the entire front lamp cover.
SERVICE - 3
Front Lamp Cover Repair:
SERVICE - 3 - 1
•If the scooter is folded it will be easier to carry out this operation.

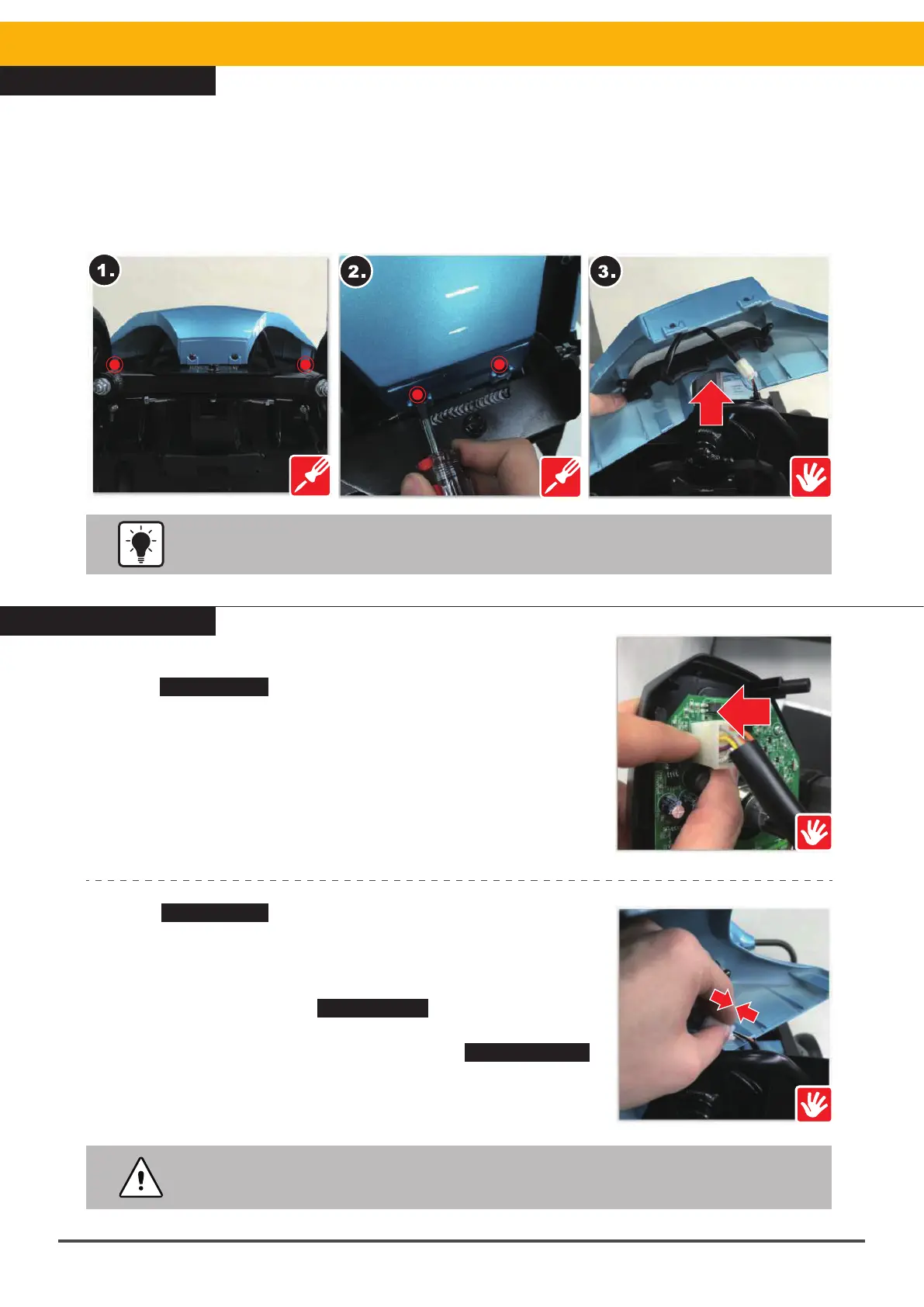

1.Remove the screws (12mm, 2pcs) on the outside of the front lamp cover
2.Remove the screws (12mm, 2pcs) from the inside of the headlight cover
3.Push the front lamp cover gently upward to separate it from the frame
※After the replacement of parts or re-installation, please follow the exact reverse sequence
for reassembly.
Headlight Repair :
Refer to SERVICE-1 Steering Top Cover Repair steps first,
and then :
※Find the headlight connector
※Reconnect the headlight connector
※If it is not effective, carry out the “Headlight Cover Connector
Inspection”.
Refer to SERVICE-3 Front Lamp Cover Repair steps, then :
※Find the front lamp cover connector (figure on the right).
※Reconnect the front lamp cover connector (figure on the
right).
※If it is not effective, go to SERVICE-3 Front Lamp Cover
Repair to replace it with a new one.
※If this does not solve the problem, refer to SERVICE-1-1
Top Cover Board Repair to replace this with a new one.
To Next Page
