MAINTENANCE/ADJUSTMENTS
106
Fan Belt Replacement
To replace the fan belt, use following procedure:
Open Bonnet. Loosen the alternator pivot nut and
push the alternator toward the engine
to remove the belt.
Loosen the alternator-adjusting bolt.
Install new fan belt and adjust the belt
tension. See Fan Belt Adjustment in
this manual for instructions.

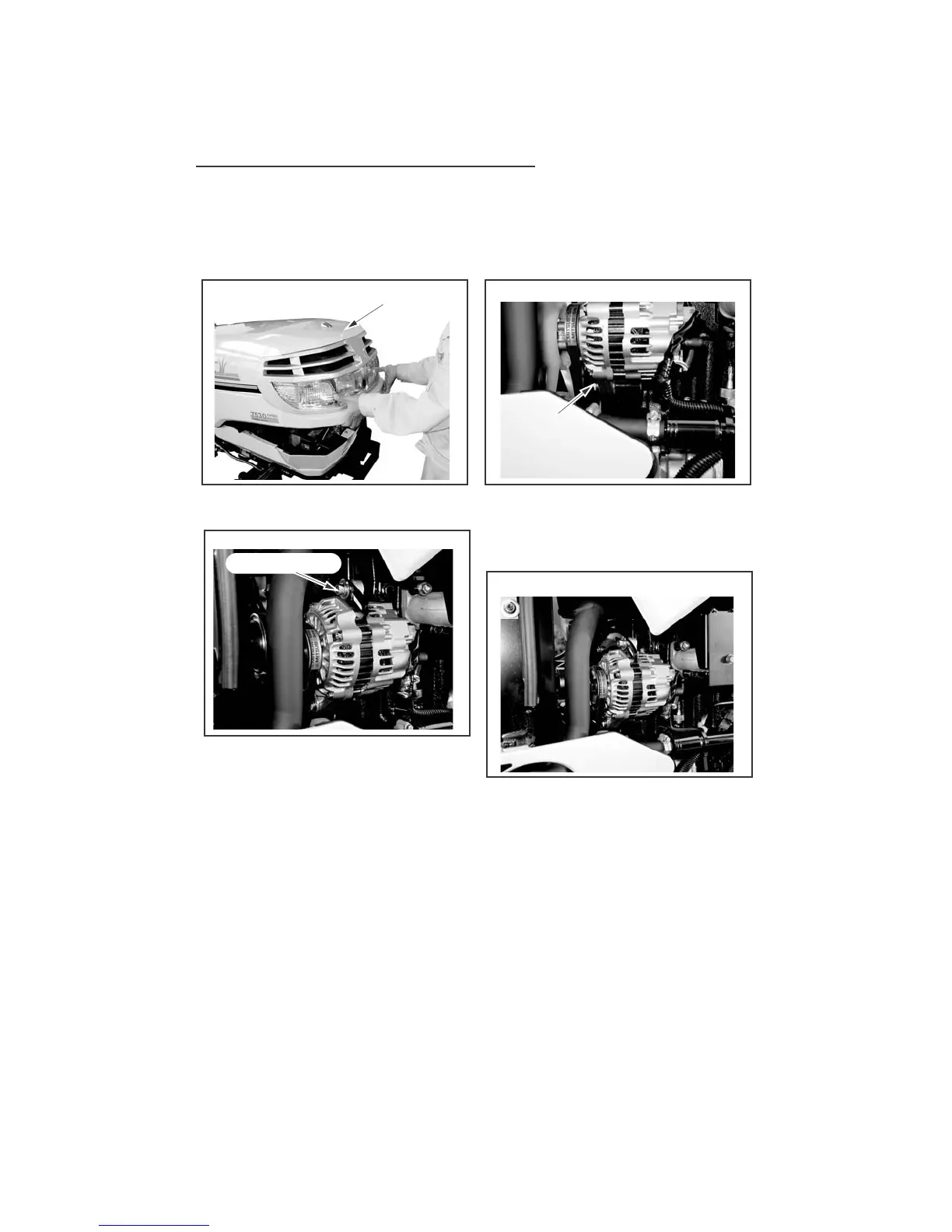

STEP 1
STEP 2
STEP 3
STEP 4
ADJUSTING BOLT
PIVOT NUT
PIVOT NUT
BONNET
