MAINTENANCE/ADJUSTMENTS
107
Rotating fan and belts. Contact can injure. Keep clear.
CLUTCH PEDAL ADJUSTMENT
Service Specifications
Clutch Pedal Check and Adjustment Interval Every 200 hours of
operation or yearly
Free Pedal Movement 20-30mm (0.8 - 1.2 inch)
Free Movement Adjustment
Clutch pedal free movement is very important and must be checked at the
recommended intervals. If there is no free movement, the clutch disc will
wear quickly. If there is too much free movement, the clutch will not
disengage correctly and the transmission will be difficult to shift.
Put the tractor on level ground,
move the range shift lever in the L
position, apply the park brake, stop
the engine and adjust the clutch
pedal free movement as follows:

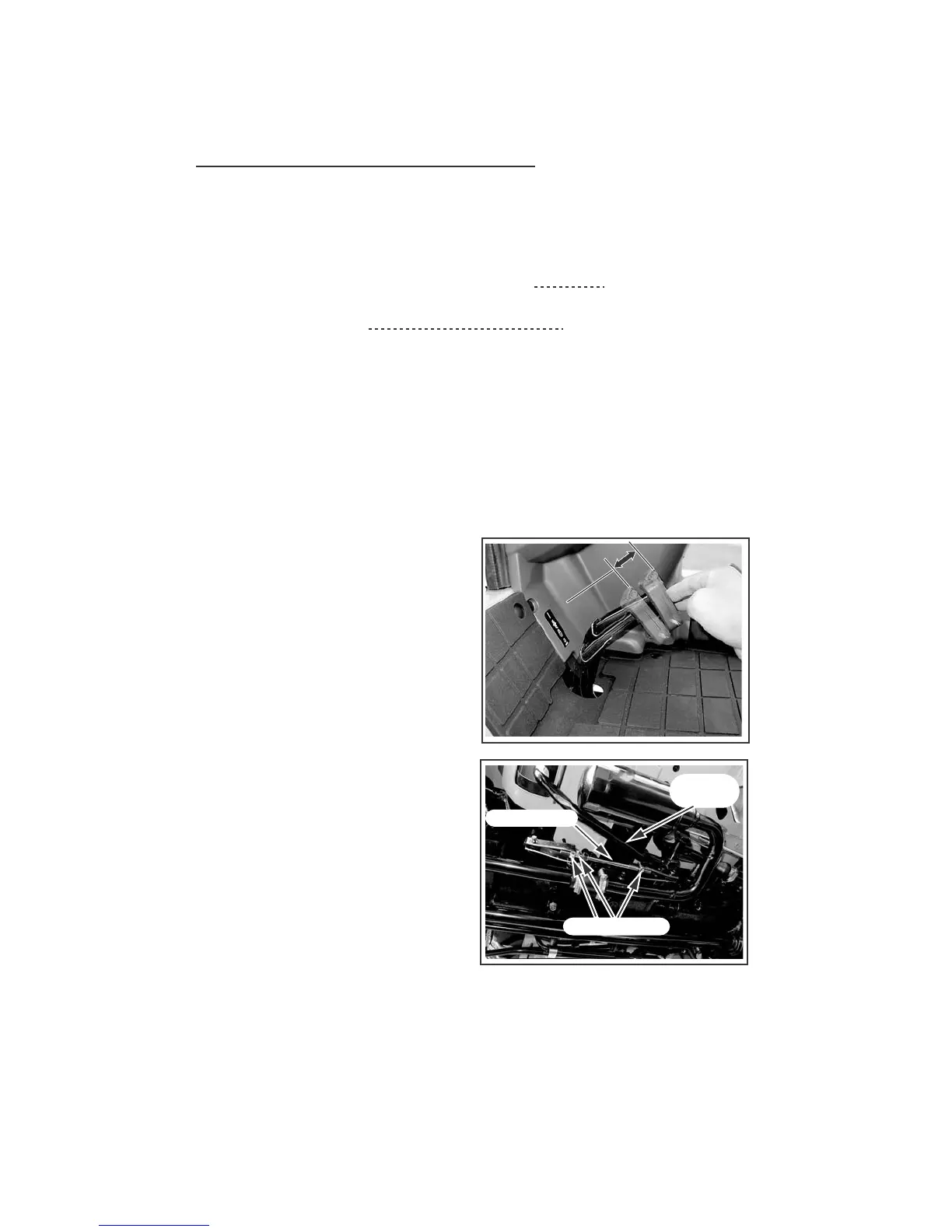

Push the clutch pedal down by hand,
to measure the amount of pedal free
movement.
The pedal free movement must be
within the specification shown above.
Adjust the pedal free movement as
necessary with the adjusting nuts on
the clutch rod.
To increase free movement, turn the
nuts in.
To decrease free movement, turn the
nuts out. Tighten the nuts to a torque
of 44 to 54 Nm (32 to 40 lb ft).
2020
ADJUSTING NUT
CLUTCH
(PEDAL)
CLUTCH ROD
